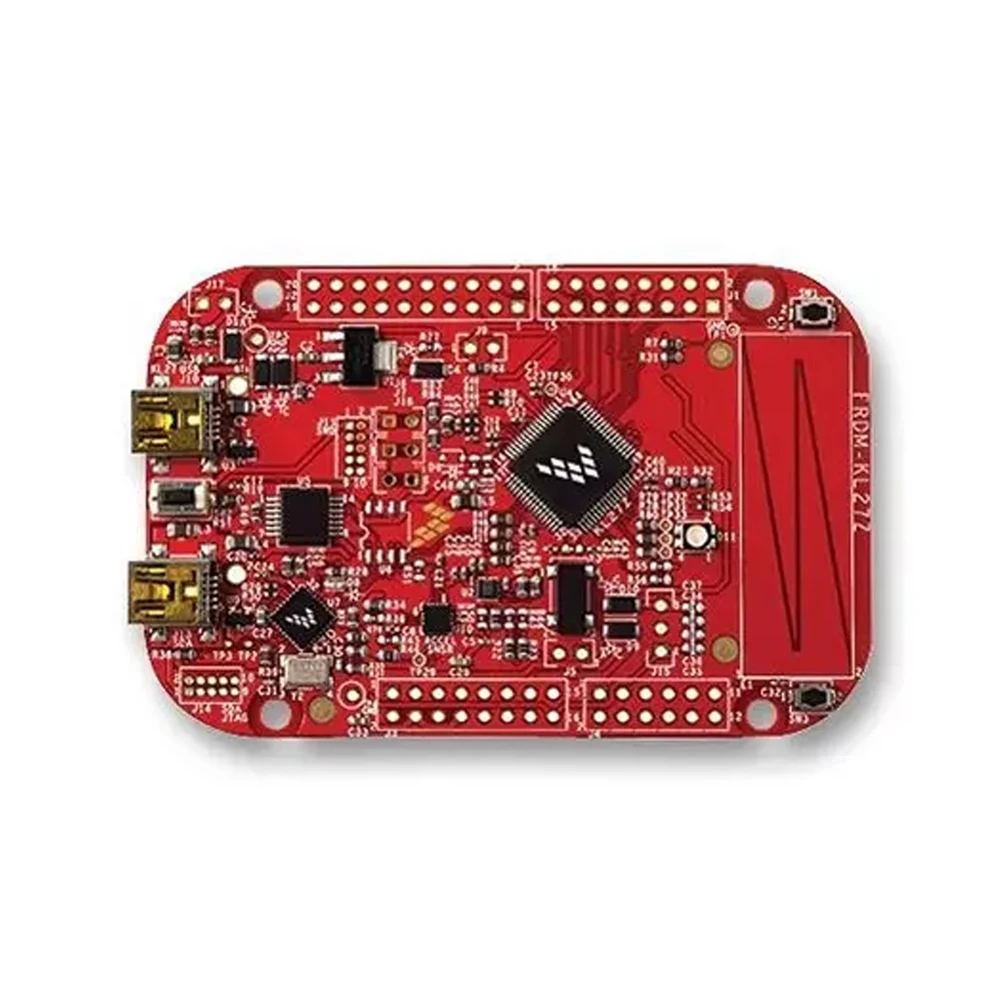

NXP Semiconductors FRDM-KL27Z Kinetis KL27 ARM Cortex-M0+ Dev Board
The NXP Semiconductors FRDM-KL27Z is a compact development board featuring the Kinetis KL27 ARM Cortex-M0+ microcontroller, ideal for low-power embedded applications. With integrated capacitive touch, accelerometer, and magnetometer, it offers an excellent platform for sensor-based prototyping and is Arduino R3 compatible.
Features
- Features an ARM Cortex-M0+ MKL27Z64VLH4 microcontroller clocked at 48MHz.
- Equipped with 64KB Flash memory and 16KB SRAM for efficient application execution.
- Integrates a capacitive touch slider, MMA8451Q accelerometer, and MAG3110 magnetometer for interactive sensing.
- Provides Arduino R3 compatible expansion headers for broad shield compatibility.
- Utilizes the OpenSDA interface for easy drag-and-drop programming and comprehensive debugging.
Out of stock
The NXP Semiconductors FRDM-KL27Z Development Board serves as a robust and versatile evaluation platform centered around the MKL27Z64VLH4 ARM Cortex-M0+ microcontroller. Operating at a 48MHz CPU frequency, complemented by 64KB of Flash memory and 16KB of SRAM, this board is engineered to facilitate efficient embedded system development and rapid prototyping for a wide range of low-power applications.
Its rich set of integrated peripherals distinguishes the FRDM-KL27Z, including a capacitive touch slider, a 3-axis MMA8451Q accelerometer, a MAG3110 digital magnetometer, a thermistor sensor, and an RGB LED. These components enable developers to design and test interactive, sensor-driven applications directly, minimizing the need for external hardware. The board further enhances its expandability with Arduino R3 compatible headers, simplifying the integration of existing shields and add-on modules. The integrated OpenSDA interface supports streamlined drag-and-drop programming, robust debugging capabilities, and virtual COM communication, making the development workflow highly efficient. With flexible power options including USB, coin-cell battery, and external sources, the FRDM-KL27Z is perfectly suited for portable and battery-powered designs, appealing to students, makers, and professional engineers alike.
Additional Information
| Weight | 0.14 kg |
|---|---|
| Dimensions | 8.5 × 5.4 cm |
