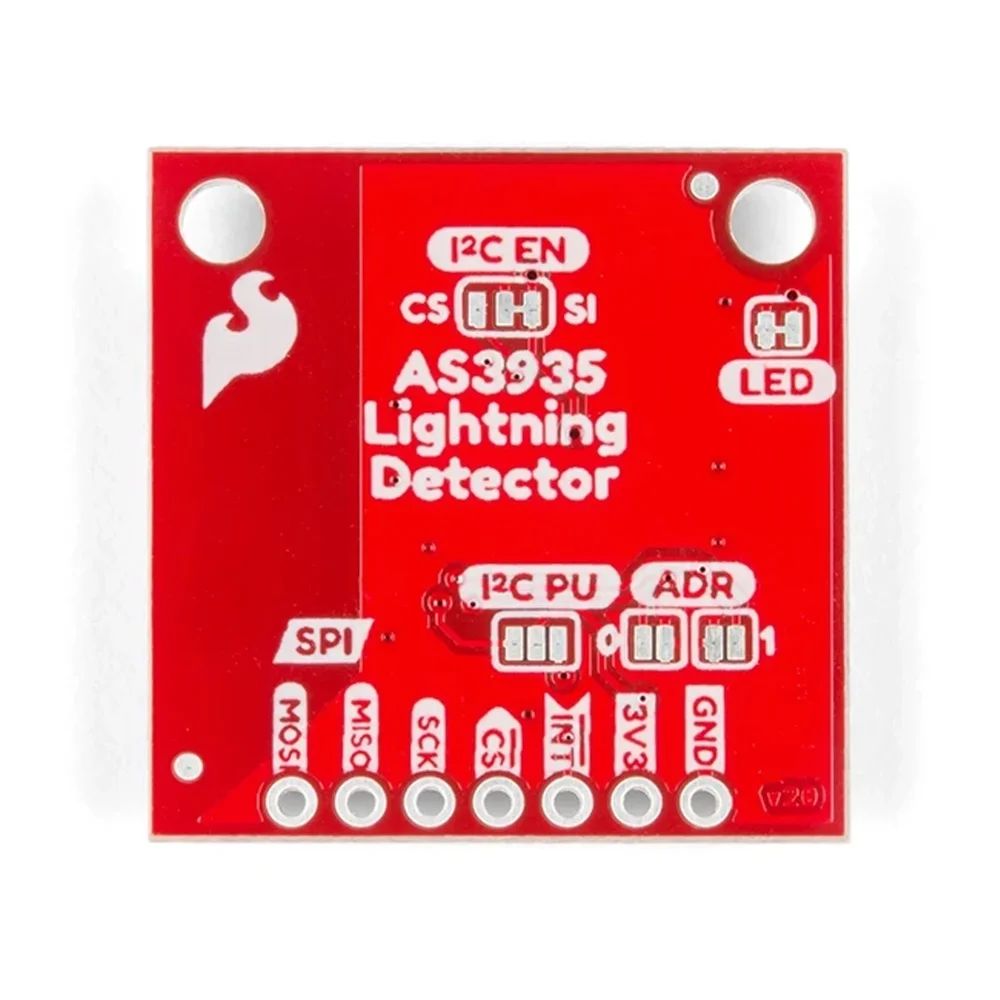

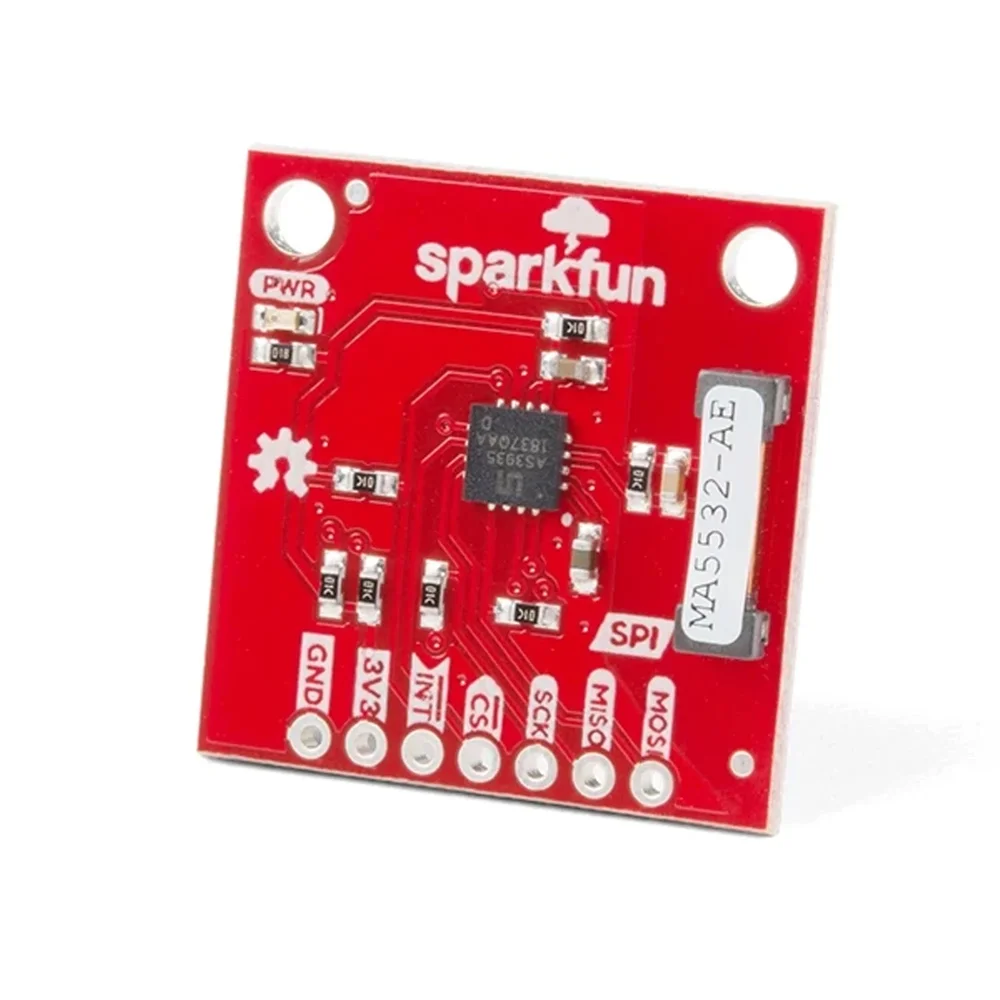

SparkFun Lightning Detector Sensor - AS3935 SPI Module
The SparkFun AS3935 Lightning Detector Sensor is a compact SPI module for detecting and estimating the distance to lightning strikes up to 40 km away. It operates from 2.4V to 5.5V, making it compatible with Arduino, Raspberry Pi, and other 3.3V/5V microcontroller platforms for weather monitoring and safety applications.
Features
- Detects cloud-to-ground and intra-cloud lightning up to 40 km away.
- Estimates distance to storm front in 15 programmable steps.
- Built-in algorithm rejects man-made electrical noise for reliable detection.
- SPI digital interface for easy integration with microcontrollers.
- Wide 2.4V to 5.5V supply voltage range supports 3.3V and 5V logic systems.
Out of stock

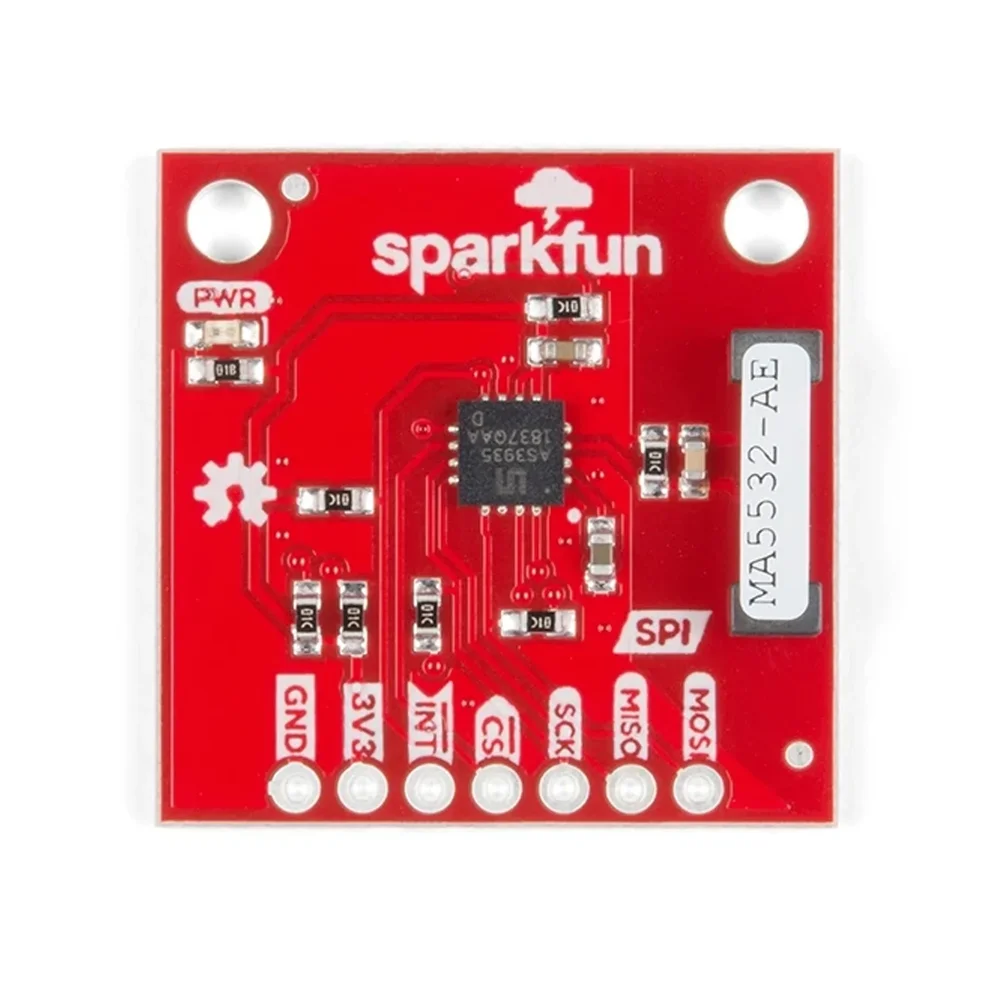

The SparkFun Lightning Detector is built around the AS3935 Franklin Lightning Sensor IC, which uses a tuned 500 kHz antenna to detect the electromagnetic pulses (sferics) emitted by lightning discharges. It differentiates between actual lightning events and electrical noise from appliances or motors using an integrated disturber rejection algorithm, significantly reducing false positives.
The module features programmable detection sensitivity levels and selectable operating modes (power-down, listening, active) to optimize performance for indoor or outdoor environments and conserve power in portable applications. Its robust design operates across an industrial temperature range from -40°C to 85°C, suitable for field-deployed weather stations.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 2.5 × 2.5 × 0.3 cm |
