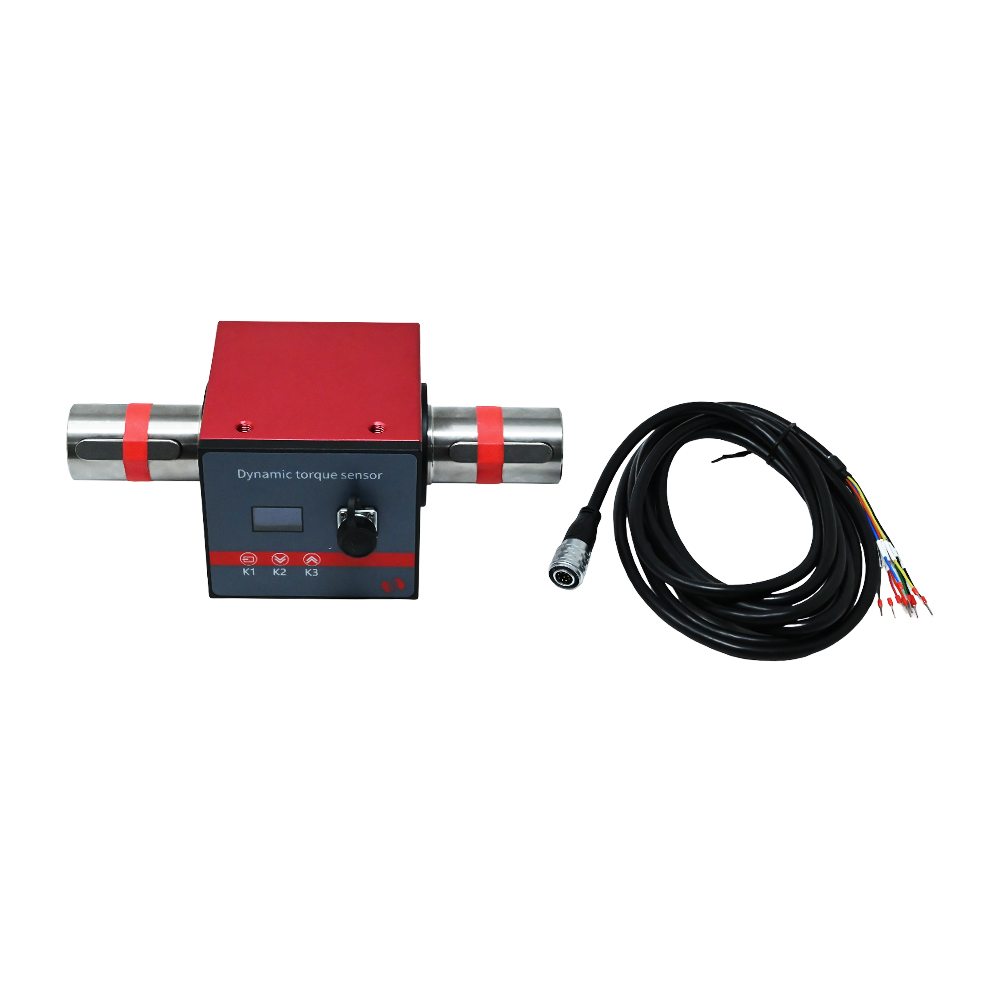

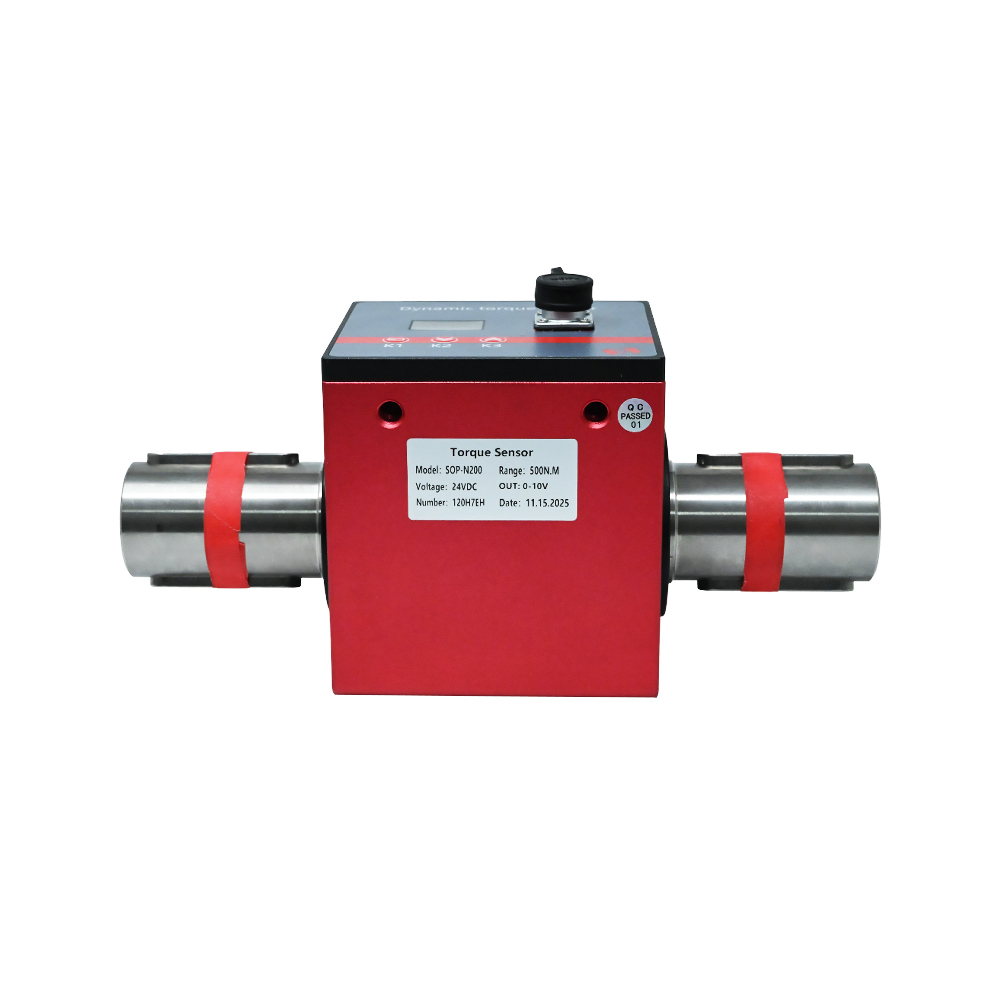

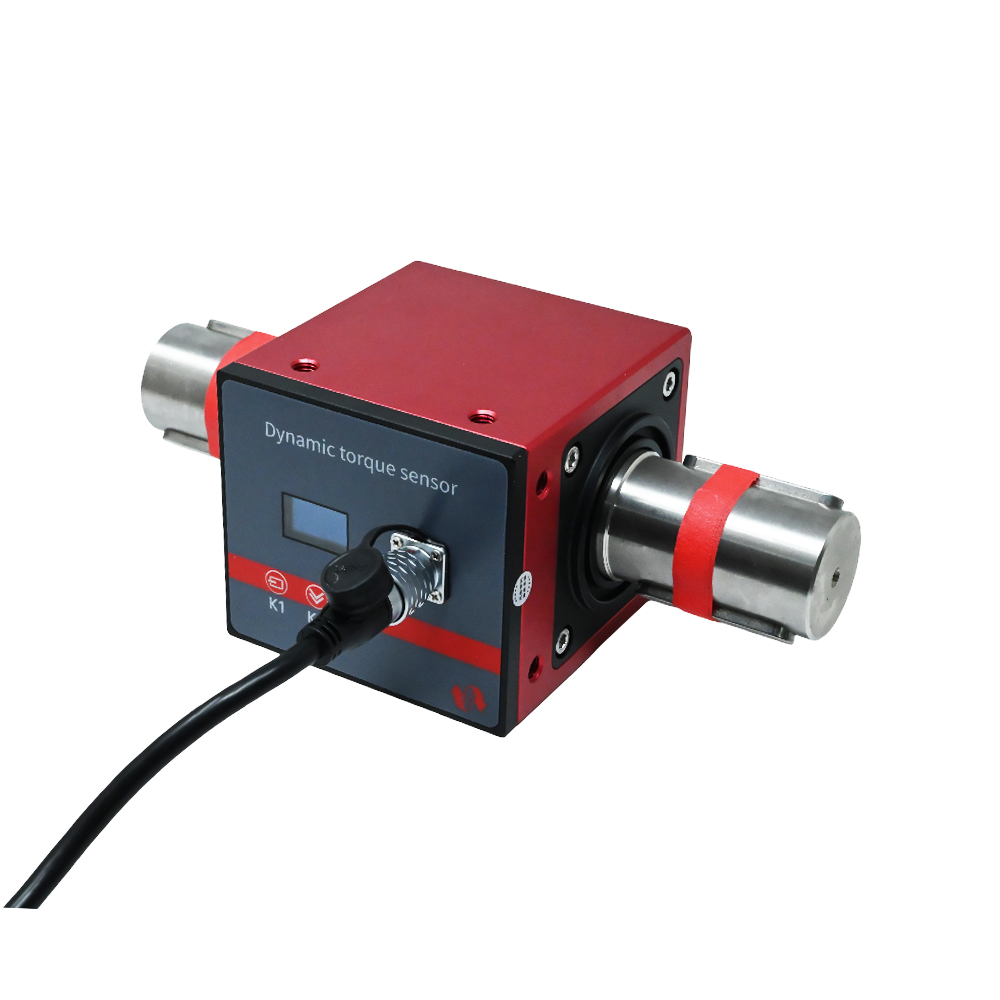

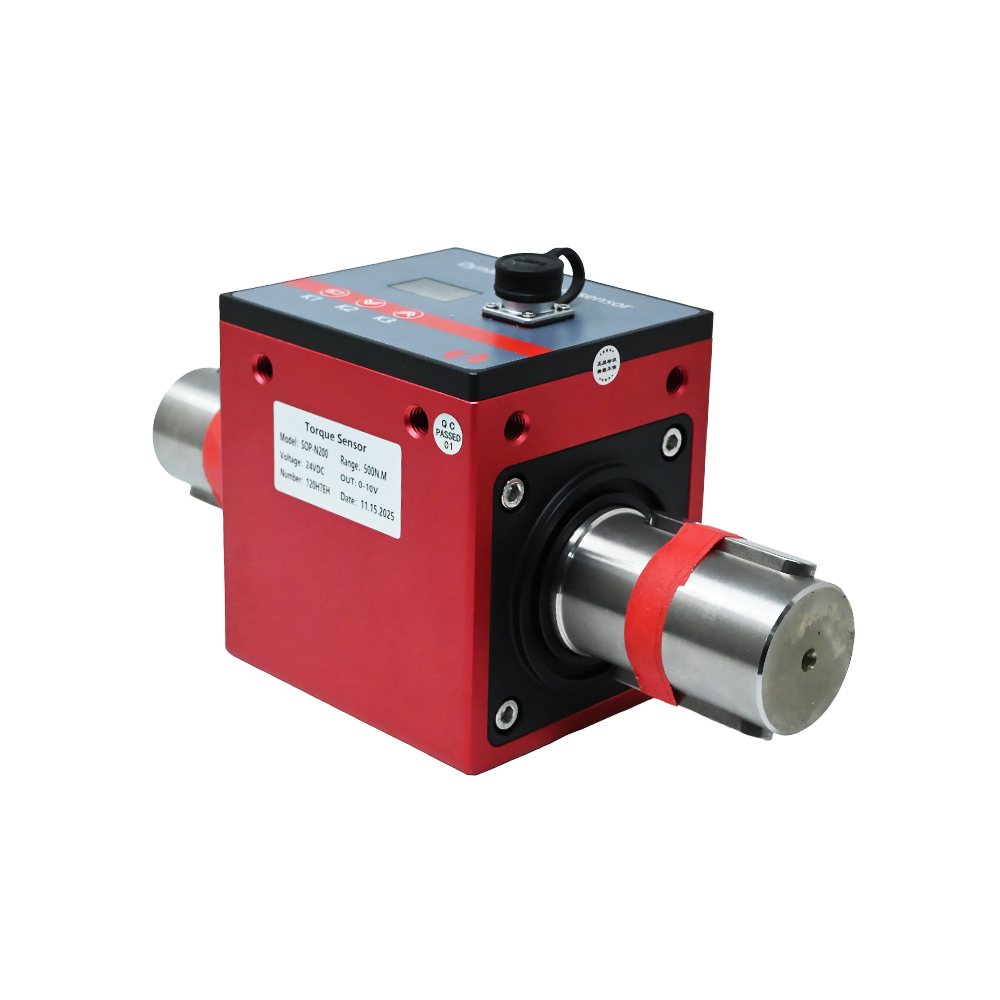

SOP SOPN-200 Dynamic Rotary Torque Sensor, 500N·m, 0~10V Analog & RS485 Output, 24VDC Supply, 8000RPM
The SOP SOPN-200 is a high-precision dynamic rotary torque sensor designed for industrial and R&D applications, featuring a 0–10V analog output and RS485 Modbus digital communication for seamless integration with PLCs, DAQ systems, and motor test benches. It provides accurate torque measurement up to 500 N·m with a high rotational speed capability of 8000 RPM.
Features
- High-precision rotary torque measurement with 0.1% F.S. linearity
- Dual-output interface: 0–10V analog signal and RS485 digital communication (Modbus)
- Robust stainless-steel construction for durability in demanding industrial environments
- High-speed dynamic operation up to 8000 RPM with a fast 0.6ms response time
- 24VDC power supply with low temperature drift for stable, long-term performance
Out of stock
The SOP SOPN-200 Torque Sensor employs a high-accuracy strain gauge measurement principle integrated into a robust, rotating shaft assembly. This design ensures precise torque transduction with minimal hysteresis and excellent repeatability, even under dynamic load conditions and high rotational speeds. The sensor’s stainless-steel housing provides structural integrity and resistance to industrial contaminants.
Signal conditioning is integrated, providing a stable, low-noise 0–10V analog output proportional to the applied torque, alongside a digital RS485 interface for networked data acquisition and remote monitoring via Modbus protocol. This combination allows for flexible integration into test stands, motor performance validation systems, and automated production line monitoring. The sensor is engineered for continuous operation with a high natural frequency to avoid resonance issues in high-RPM applications.
Additional Information
| Weight | 3.75 kg |
|---|---|
| Dimensions | 23 × 10.5 cm |
