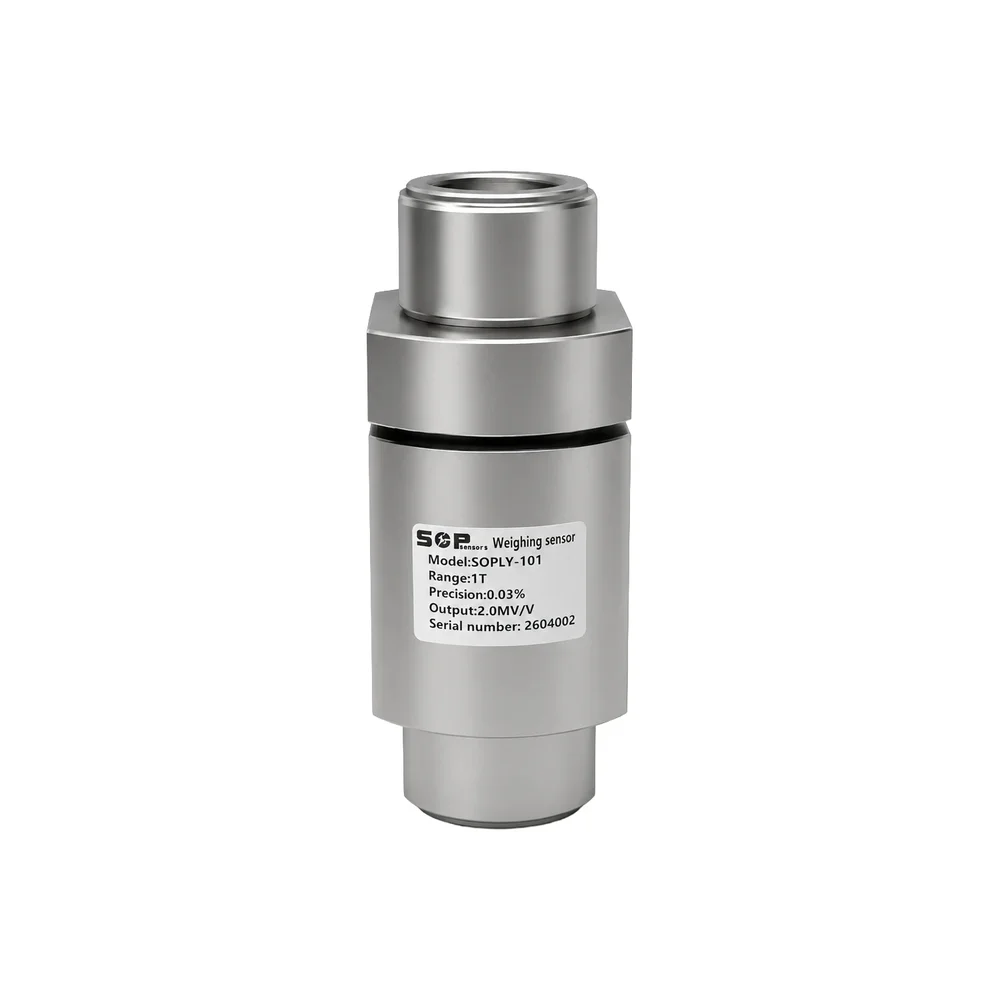

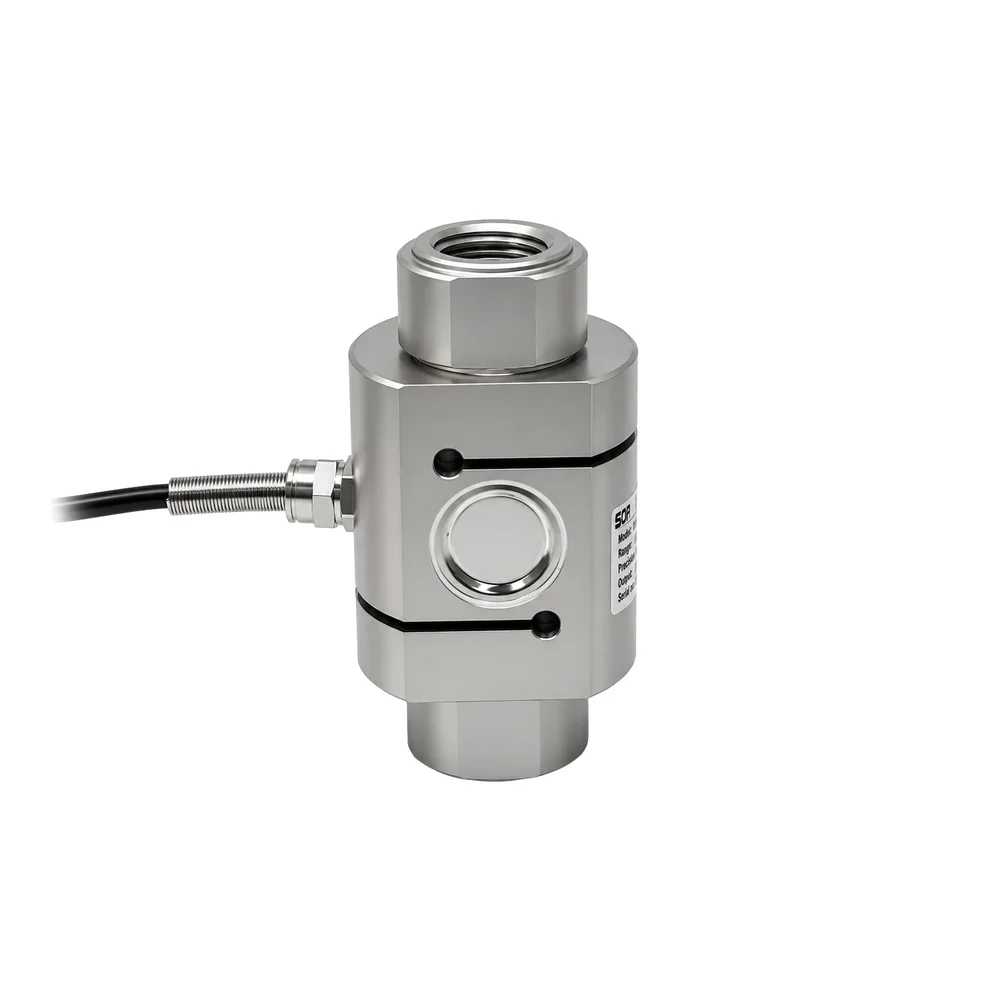

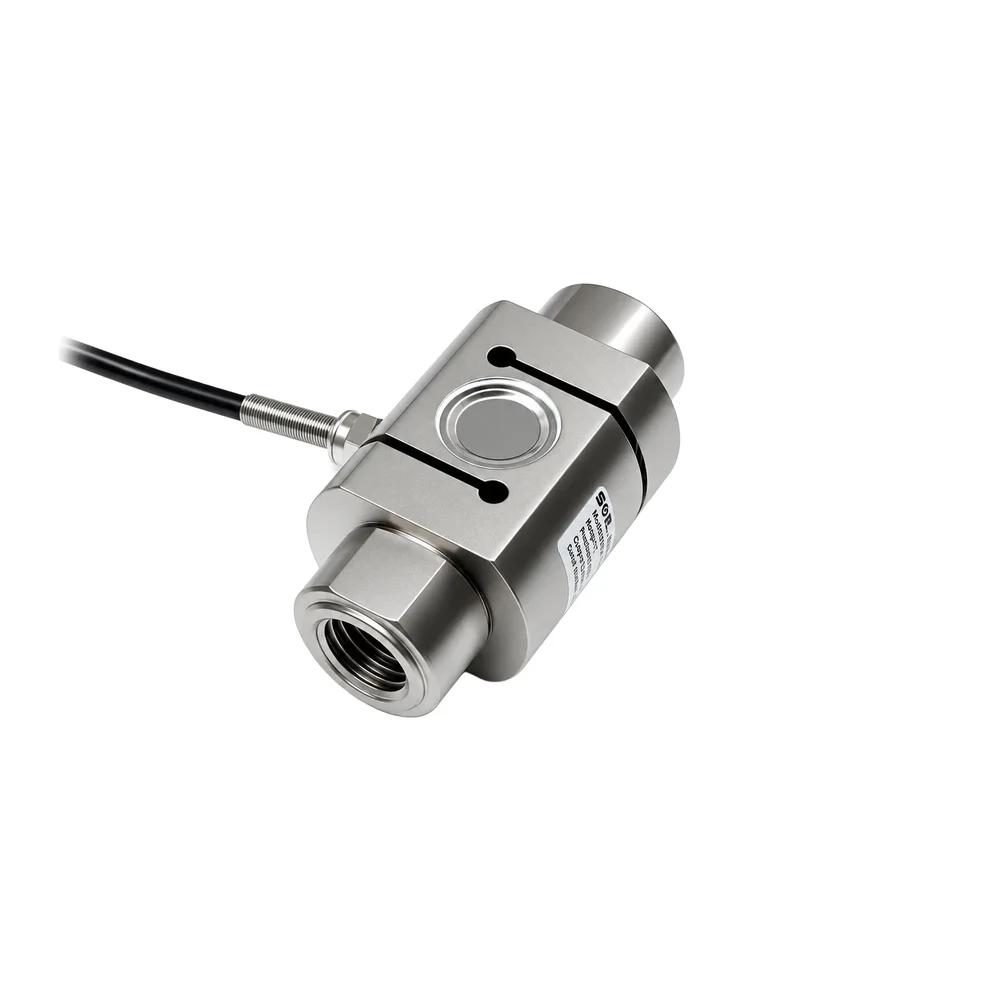

SOP SOPLY-101-1T S-Type Load Cell Sensor, 1 Ton Capacity, 2.0mV/V Output, Alloy Steel, 5~15V Excitation, 3M Cable

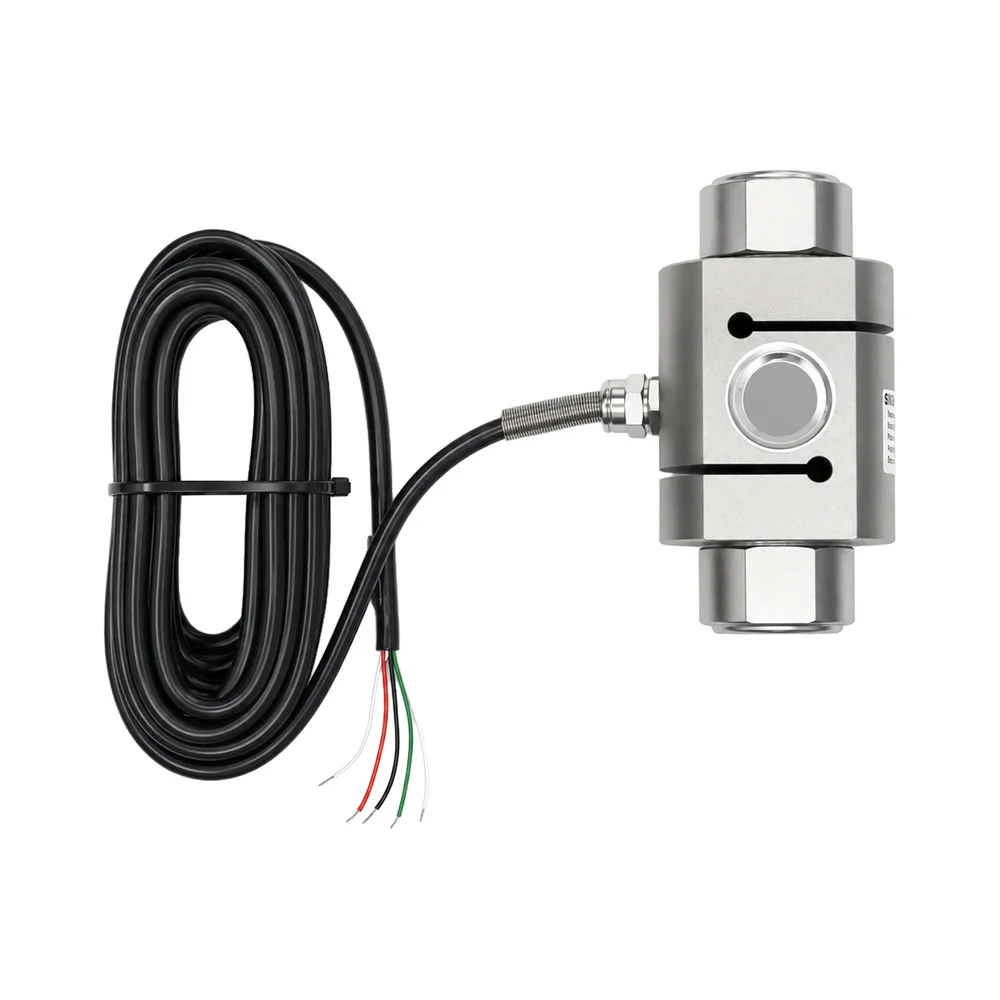

The SOPLY-101-1T uses a standard 4-wire Wheatstone bridge configuration. The attached 3-meter cable typically has red and black wires for excitation voltage (5-15V DC) and white and green (or similar) wires for the signal output (2.0mV/V). Always consult the specific wiring diagram provided with your unit or amplifier module (like the HX711) for correct connections to avoid damage.

Yes, the S-Type design is inherently suitable for both tension (pulling) and compression (pushing) measurements. Its symmetrical mechanical structure and calibrated strain gauges provide accurate bi-directional force sensing, making it ideal for applications like hanging scales, press force monitoring, and material testing machines.

The load cell's 2.0mV/V analog output requires signal conditioning. You need a compatible load cell amplifier or transmitter that provides stable excitation voltage (5-15V DC) and amplifies the small millivolt signal to a usable voltage (e.g., 0-5V, 0-10V) or digital format. For microcontroller projects, modules like the HX711 are commonly used. For industrial systems, a dedicated weigh transmitter or PLC analog input card is recommended.

Proper mounting is critical for accuracy. Ensure force is applied axially through the center of the threaded holes to avoid side loads. Use high-grade, properly sized bolts and mating surfaces must be flat, parallel, and aligned. For tension applications, use a swivel hook or clevis to prevent bending moments. Always adhere to the safe overload limit of 150% of capacity (1500 kg) to maintain sensor integrity.
