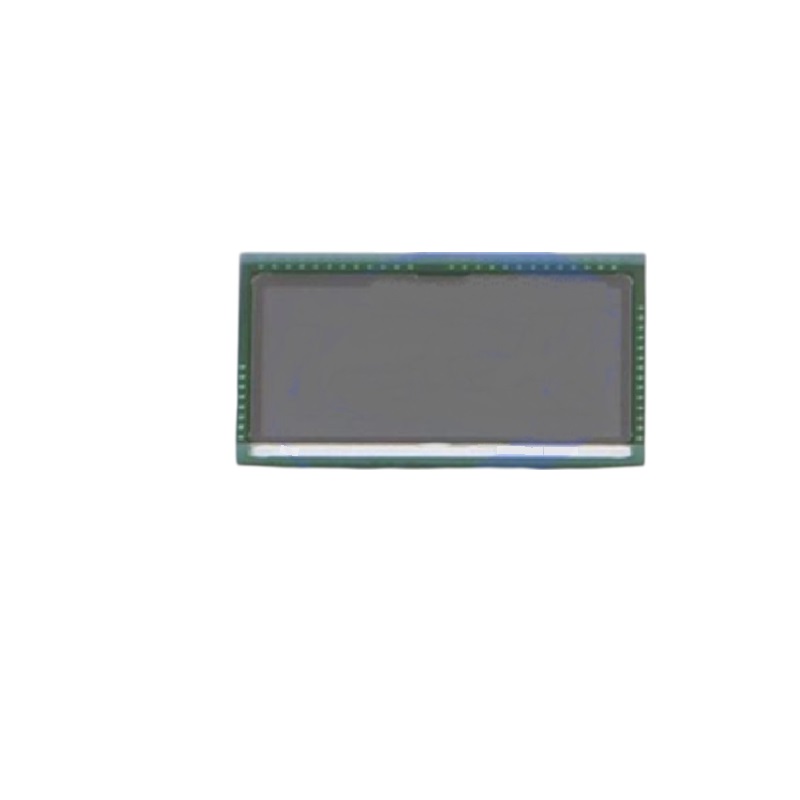

SOI JX-F38P-C1-M3 CSP Image Sensor - 2.5µm Pixel, 1928x1088 Active Pixels
The SOI JX-F38P-C1-M3 is a CSP-packaged CMOS image sensor featuring a 2.5µm pixel size and a 1928 x 1088 active pixel array, designed for integration into compact vision systems requiring low-voltage operation and a wide temperature range.
Features
- 2.5µm x 2.5µm pixel size for detailed image capture
- Active pixel array of 1928H x 1088V (approx. 2.1 MP)
- Chip Scale Package (CSP) for ultra-compact PCB integration
- Wide operating voltage range from 1.8V to 3.3V
- Industrial-grade operating temperature range: -30°C to +85°C
Out of stock
The JX-F38P-C1-M3 is a CMOS image sensor from SOI, utilizing a Chip Scale Package (CSP) for minimal footprint and direct surface-mount assembly. Its 2.5-micron pixel architecture delivers a resolution of approximately 2.1 megapixels (1928 x 1088), suitable for applications requiring a balance of detail and sensor size.
Engineered for reliability, the sensor operates across a broad industrial temperature spectrum from -30°C to 85°C, making it robust for challenging environments. With a low power consumption of 103.8 mW and compatibility with 1.8V to 3.3V logic levels, it is optimized for power-sensitive and space-constrained embedded vision projects, including portable devices and industrial inspection modules.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 8 × 10 × 3 cm |
