SN-3002-TRREC-N01 + SN-3002-TR-ECTHNPKPH-N01 Soil Multi-Parameter Recorder - Handheld LCD, USB-Powered
SN-3002-TRREC-N01 + SN-3002-TR-ECTHNPKPH-N01 Soil Multi-Parameter Recorder - Handheld LCD, USB-Powered - Image 2
SN-3002-TRREC-N01 + SN-3002-TR-ECTHNPKPH-N01 Soil Multi-Parameter Recorder - Handheld LCD, USB-Powered - Image 3
SN-3002-TRREC-N01 + SN-3002-TR-ECTHNPKPH-N01 Soil Multi-Parameter Recorder - Handheld LCD, USB-Powered - Image 4
SN-3002-TRREC-N01 + SN-3002-TR-ECTHNPKPH-N01 Soil Multi-Parameter Recorder - Handheld LCD, USB-Powered - Image 5
SKU: SENS-0384
📋 GST Invoice Available

SN-3002-TRREC-N01 + SN-3002-TR-ECTHNPKPH-N01 Soil Multi-Parameter Recorder - Handheld LCD, USB-Powered

₹17,369.00 (Inclusive of all taxes)
Out of Stock

The SN-3002 Soil Multi-Parameter Recorder is a professional handheld device integrating a high-accuracy stainless steel probe to measure soil temperature, moisture, electrical conductivity (EC), NPK nutrients, and pH. It features a 2.8-inch LCD, USB power, and ModBus-RTU communication for data logging and field analysis in agriculture and environmental monitoring.

Features

  • Multi-parameter soil analysis: Simultaneously measures Temperature, Moisture, EC, NPK, and pH.

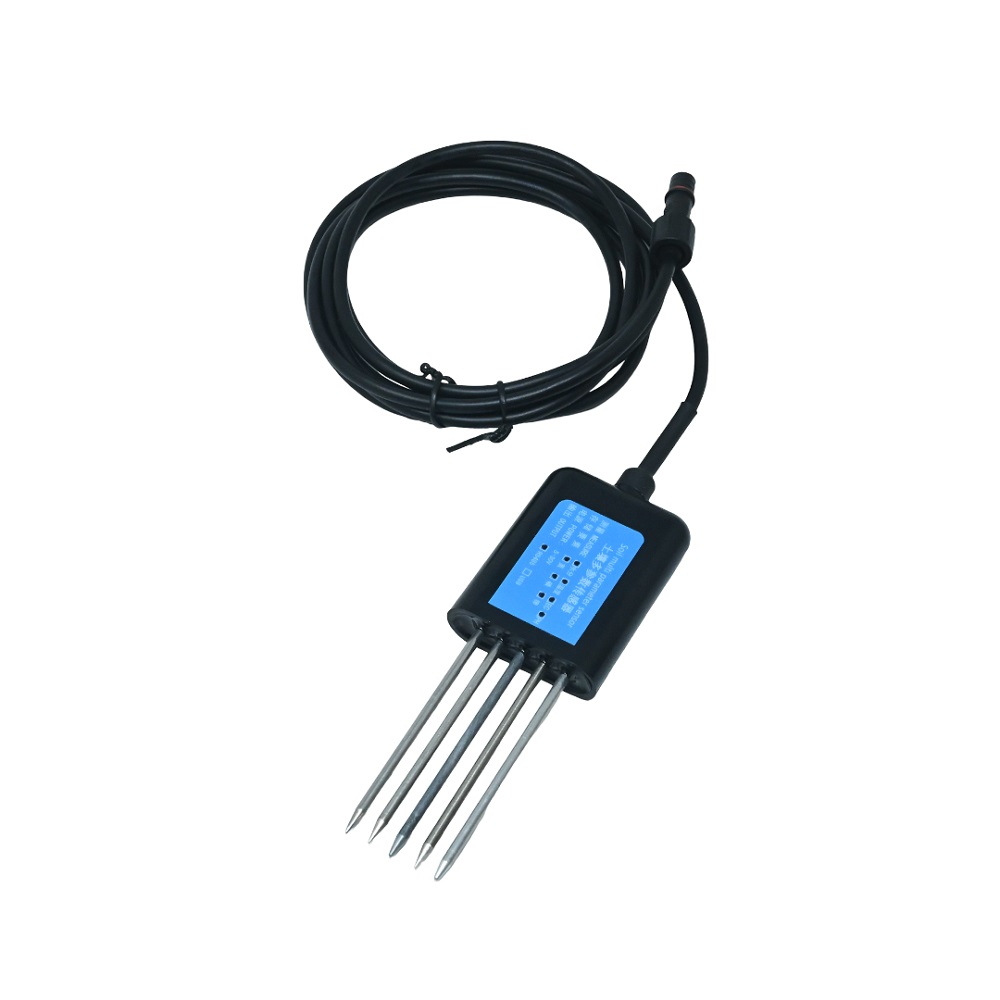

  • High-accuracy stainless steel probe ensures stable, reliable readings with strong anti-interference.
  • 2.8-inch LCD display with storage for 1 million data records.
  • USB-powered operation with low energy consumption for extended field use.
  • ModBus-RTU communication protocol for easy integration with data loggers and control systems.

Out of stock

Description

The SN-3002 Soil Multi-Parameter Recorder employs advanced sensing technology within a durable, waterproof probe to deliver precise, real-time soil health data. Its integrated sensors provide fast digital signal transmission, minimizing measurement drift and ensuring consistency across varying soil conditions.

Designed for rugged outdoor use, the device operates within a wide temperature range and features a user-friendly interface with direct keypad controls. The handheld unit supports extensive data logging, making it an indispensable tool for precision agriculture, soil research, and environmental compliance monitoring where actionable, multi-parameter insights are critical.

Key Features

  • Comprehensive soil health monitoring in a single, portable handheld unit.
  • High-precision stainless steel probe construction for long-term durability and accuracy.
  • Large 2.8-inch LCD screen for clear visualization of all measured parameters.
  • Substantial internal storage capable of holding up to 1 million measurement records.
  • USB-powered design offers convenient charging and low operational power draw.
  • Robust communication via standard ModBus-RTU protocol for system integration.
  • Wide operating temperature range from -20°C to 60°C for all-season field deployment.
  • Weather-resistant build suitable for high-humidity environments (up to 95% RH non-condensing).

Applications

  • Precision agriculture for optimizing irrigation and fertilizer application based on real-time soil NPK and moisture levels.
  • Environmental research and land management for monitoring soil health and contamination.
  • Greenhouse and nursery management to maintain ideal substrate conditions for plant growth.
  • Golf course and turf management for precise nutrient and water scheduling.
  • Academic and field studies in soil science, agronomy, and environmental monitoring.

Technical Specifications

Item TypeSoil NPK Sensor Recorder
Model Number / NameSN-3002-TRREC-N01 + SN-3002-TR-ECTHNPKPH-N01 Soil Multi-Parameter Recorder
Measured ParametersTemperature, Moisture, Electrical Conductivity (EC), NPK Nutrients, pH
Display2.8-inch LCD
Storage Capacity1 million records
Charging Time≤ 8 hours
Operating Voltage4.2 VDC
Communication ProtocolModBus-RTU
Operating Temperature-20°C to 60°C
Operating Humidity<95% RH (non-condensing)
Device Weight950 g

Frequently Asked Questions

What soil parameters does the SN-3002 Recorder measure?

The SN-3002 Recorder simultaneously measures five critical soil parameters: Temperature, Moisture Content, Electrical Conductivity (EC), NPK nutrient levels (Nitrogen, Phosphorus, Potassium), and pH. This provides a comprehensive snapshot of soil health in a single measurement cycle.

How is the device powered and what is its battery life?

The device is powered via a USB connection (4.2 VDC) and features low energy consumption for extended field use. It includes a rechargeable battery with a charging time of ≤8 hours. The exact runtime per charge depends on measurement frequency and display usage.

Can I log data and export it to a computer?

Yes. The recorder has internal storage for up to 1 million data records. It uses the standard ModBus-RTU communication protocol over its provided connector cable, allowing for direct data export and integration with data logging software, SCADA systems, or PLCs for further analysis.

What is the operating environment for this soil sensor?

The handheld unit and its probe are designed for field use, operating in temperatures from -20°C to 60°C and in humidities up to 95% RH (non-condensing). The stainless steel probe is durable and waterproof, suitable for direct insertion into various soil types.

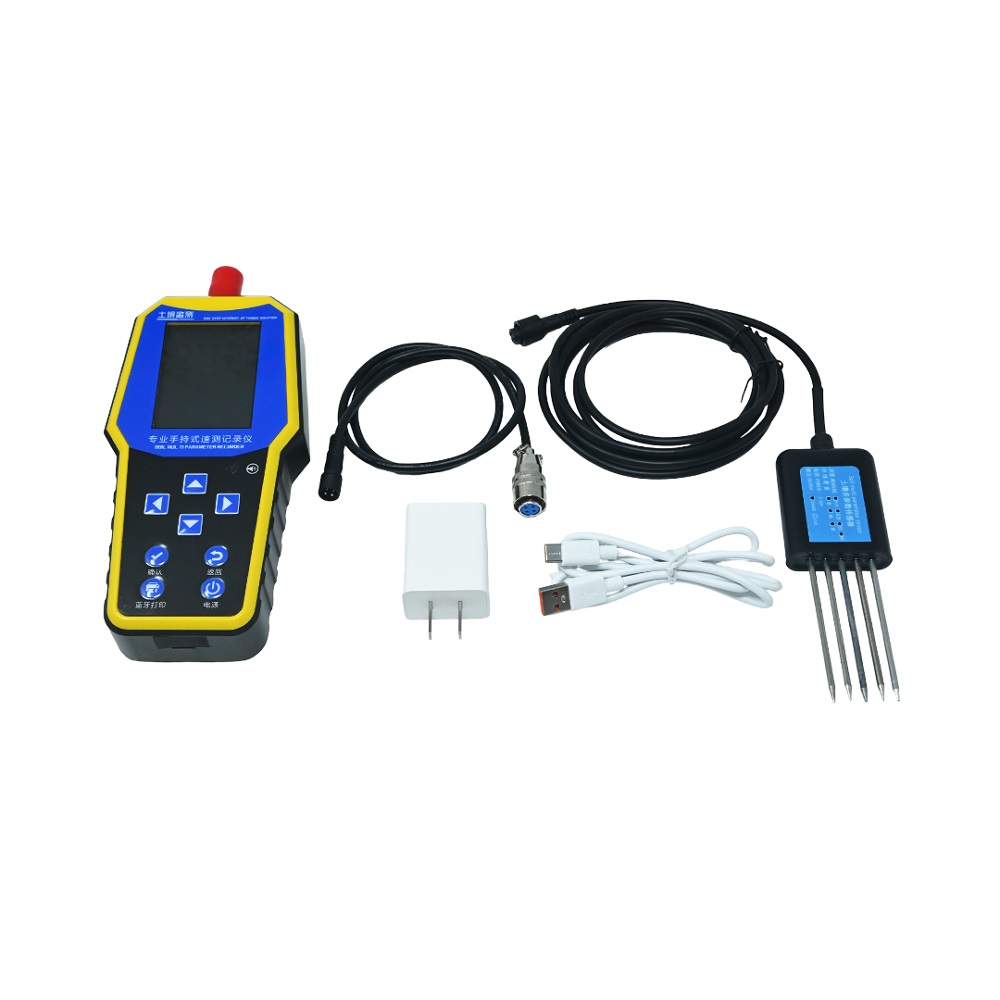

Package Includes

  • 1 x SN-3002-TRREC-N01 + SN-3002-TR-ECTHNPKPH-N01 Soil Multi-Parameter Recorder (Main Unit)
  • 1 x Connector Cable
  • 1 x Power Adapter and Cable

Additional Information

Weight 0.95 kg
Dimensions 34 × 28 × 15 cm

Related Products

Out of Stock

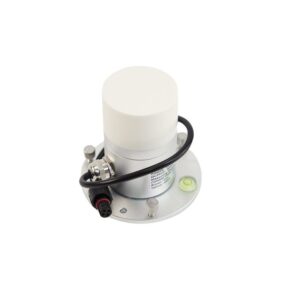

DFRobot SEN0640 RS485 Photoelectric Solar Radiation Sensor - 0-1800 W/m², IP67 Aluminium Housing

7,099.00
Learn More
Out of Stock

Renke RS-SJ-N01R01-1-EX Positioning Water Leakage Sensor - RS485 Modbus-RTU, DIN Rail Mount

15,579.00
Learn More
Out of Stock

amiciSmart Bluetooth 5.0 Transmitter & Receiver Dongle w/ LCD Display

999.00
Learn More
Out of Stock

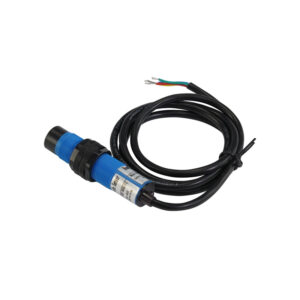

DFRobot Industrial RS485 Infrared CO2 Sensor (IP65, NDIR, 400-5000ppm)
