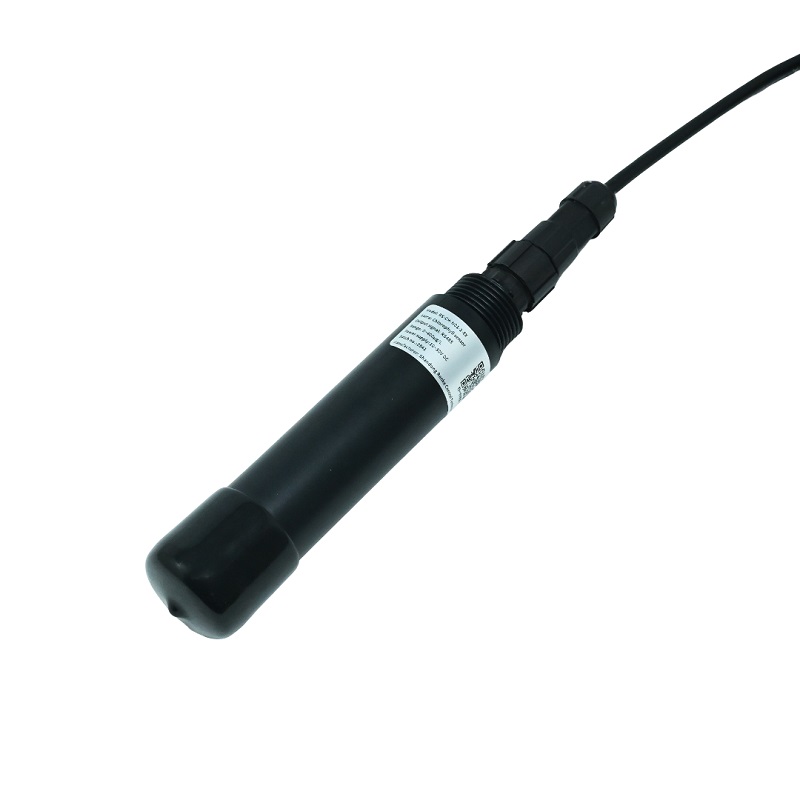

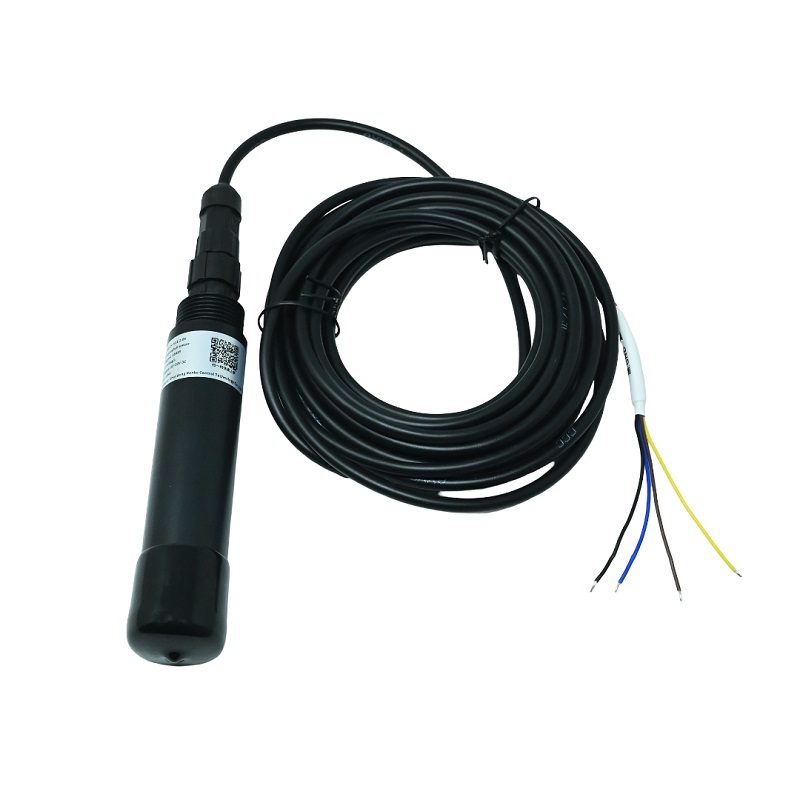

Renke RS-CH-N01-2-EX Chlorophyll Sensor with Automatic Cleaning - RS485 Modbus, 0-400ug/L
The Renke RS-CH-N01-2-EX is a professional-grade fluorescence-based chlorophyll sensor designed for continuous online water quality monitoring. It features RS485 Modbus-RTU communication for seamless integration with SCADA, PLCs, and data loggers, and includes an automatic cleaning function for low-maintenance operation in aquaculture and environmental applications.
Features
- Fluorescence-based chlorophyll measurement with a range of 0–400 µg/L and 0–100 RFU.
- RS485 Modbus-RTU digital output for robust, noise-immune industrial communication.
- Integrated automatic cleaning brush to prevent biofouling and ensure long-term accuracy.
- IP68 waterproof housing rated for submersion up to 20 meters depth.
- Built-in temperature sensor for real-time compensation and enhanced measurement stability.
Out of stock
The RS-CH-N01-2-EX utilizes the fluorescence excitation method to detect chlorophyll-a concentrations in water, providing a direct indicator of phytoplankton biomass and water trophic status. Its non-membrane, reagent-free design ensures stable, low-maintenance operation suitable for long-term deployment in rivers, lakes, reservoirs, and aquaculture ponds.
The sensor’s robust plastic housing and IP68 rating protect the internal electronics from harsh aquatic environments, while the integrated automatic cleaning mechanism periodically removes debris and biofilm from the optical window. This combination of features delivers reliable, real-time data with minimal manual intervention, making it ideal for environmental monitoring networks and research studies.
Additional Information
| Weight | 0.388 kg |
|---|
