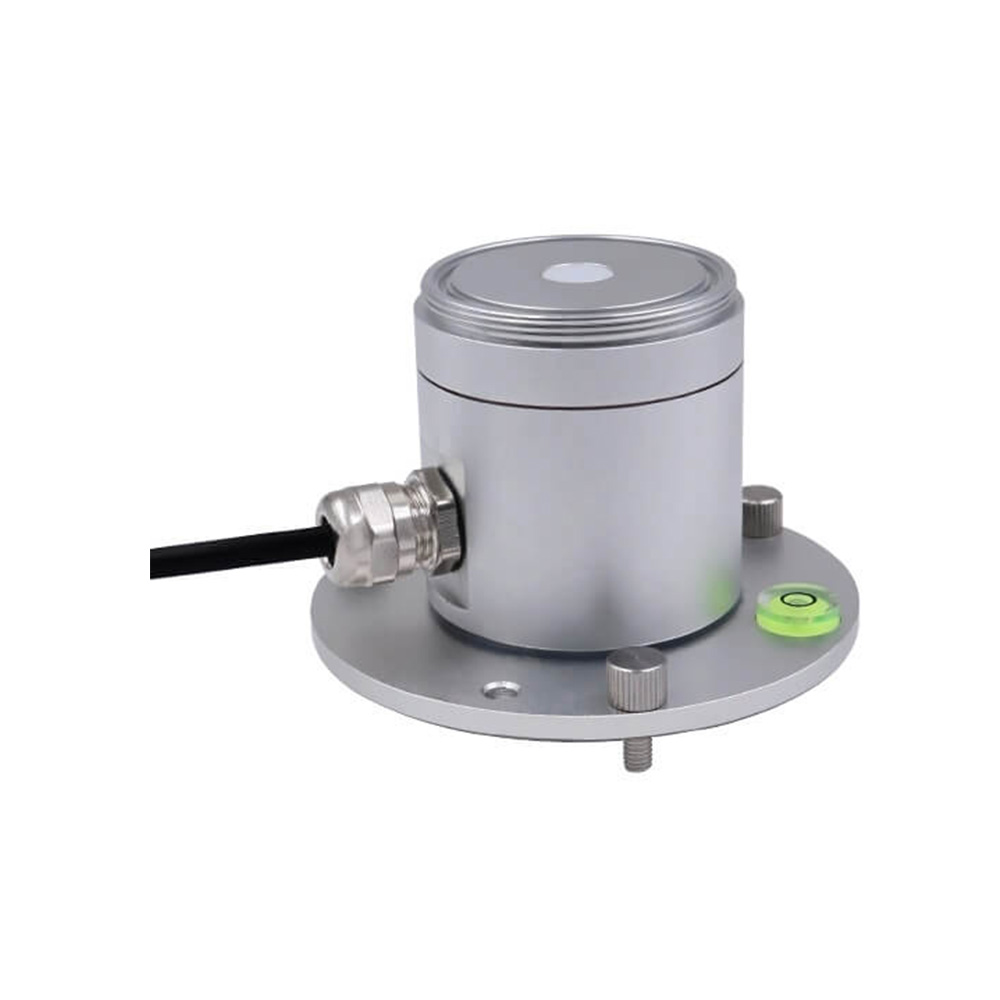

Renke RS-GH-N01-AL Photosynthetically Active Radiation (PAR) Sensor - 0-2500μmol/㎡·s, RS485 Modbus, IP67 Aluminum Shell
The Renke RS-GH-N01-AL is a professional-grade Photosynthetically Active Radiation (PAR) sensor designed for agricultural and meteorological research. It provides precise measurement of light intensity within the 400-700nm spectrum via a standard RS485 Modbus-RTU interface, compatible with industrial PLCs, data loggers, and custom monitoring systems operating on a wide 10-30V DC supply.
Features
- Measures Photosynthetically Active Radiation (PAR) from 0 to 2500 μmol/㎡·s with ±2% accuracy at 1000 μmol/㎡·s.
- Standard RS485 Modbus-RTU communication protocol for direct integration with PLCs, SCADA, and data acquisition systems.

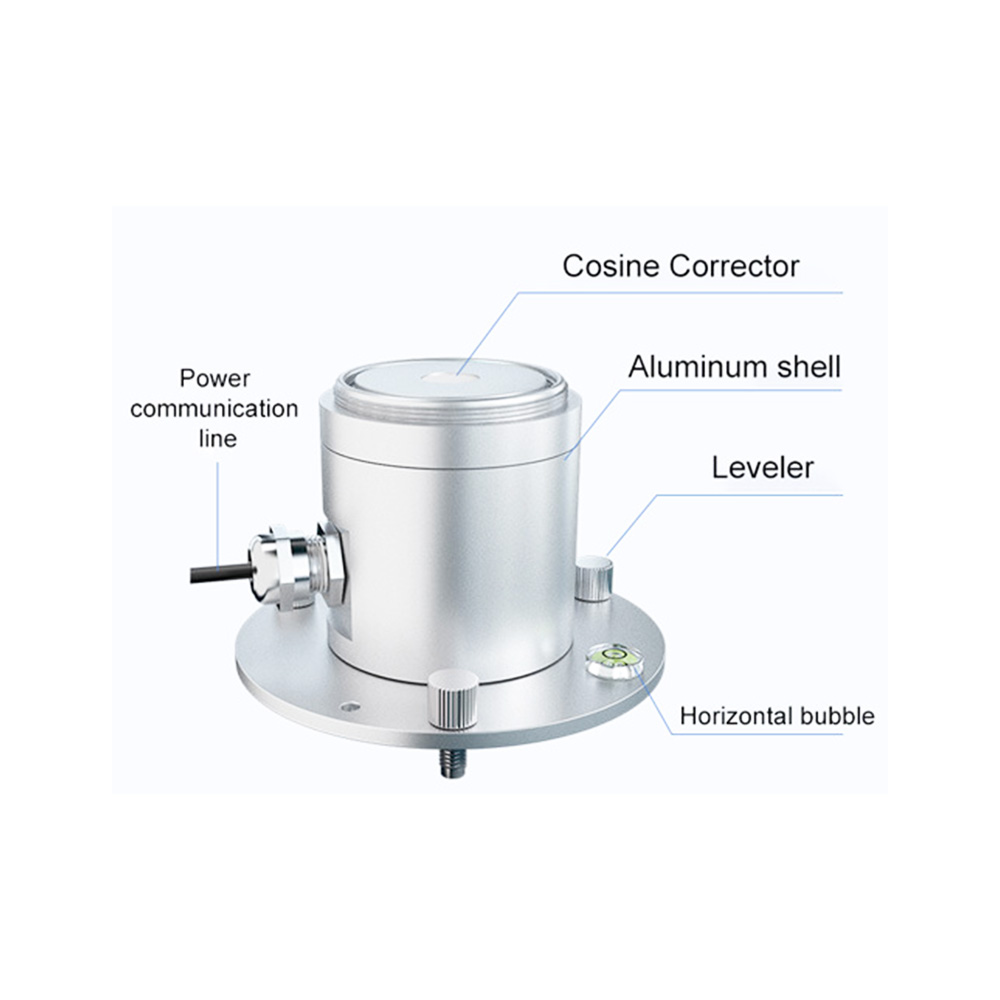

- Features a high-quality cosine corrector for accurate angular response and an IP67-rated all-aluminum housing for field durability.
- Wide operating voltage range of 10-30V DC with low power consumption of 0.06W.
- Includes a built-in level meter and adjustment handwheel for precise on-site installation and calibration.
Out of stock
The Renke RS-GH-N01-AL sensor operates on a photoelectric sensing principle, generating a voltage signal proportional to the intensity of incident radiation within the critical 400-700nm spectral band for photosynthesis. Its high-precision sensing element and specialized dust cover ensure stable, long-term performance by minimizing interference from environmental factors.
Engineered for field deployment, the sensor’s robust IP67 aluminum housing protects internal components from moisture and dust. The integrated cosine corrector ensures measurement accuracy follows Lambert’s cosine law, critical for capturing light from all angles. The standard Modbus-RTU protocol simplifies wiring and allows for seamless reading of real-time PAR values directly into control and monitoring networks.
Additional Information
| Weight | 0.307 kg |
|---|---|

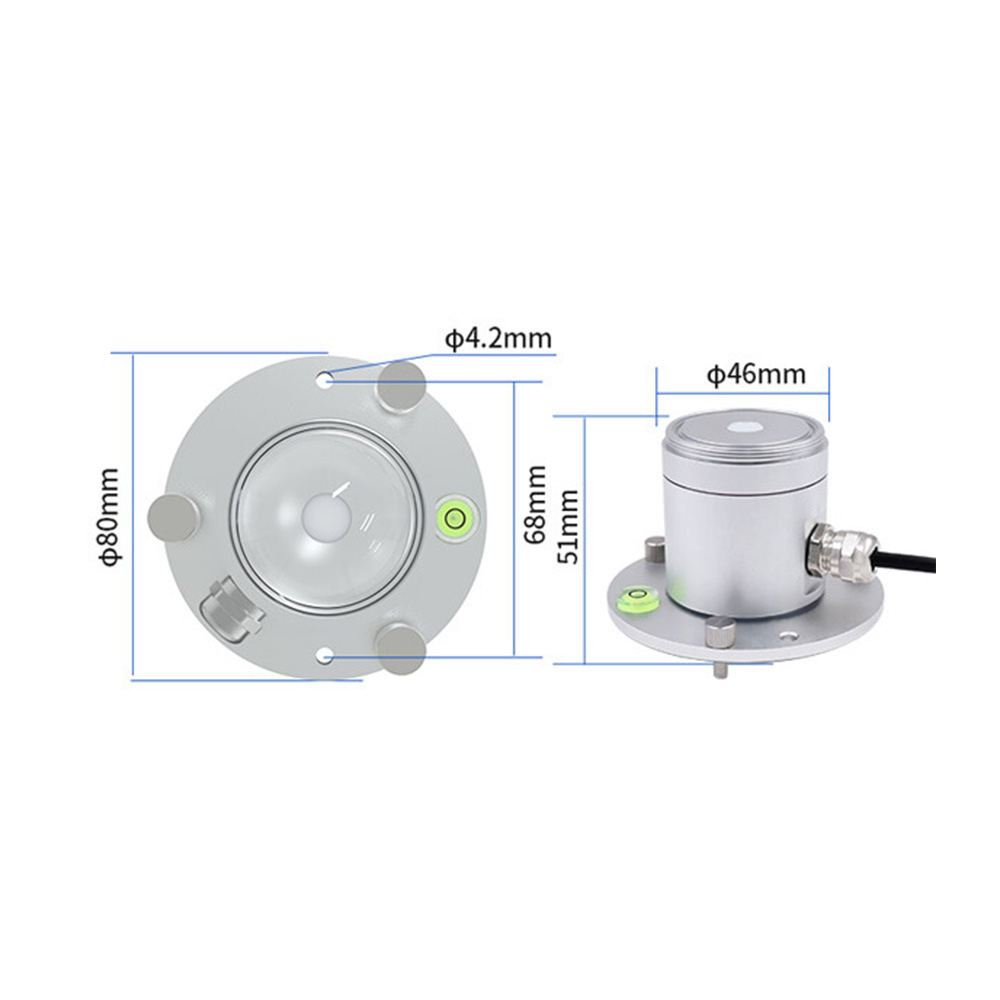

| Dimensions | 21 × 12 × 12 cm |
