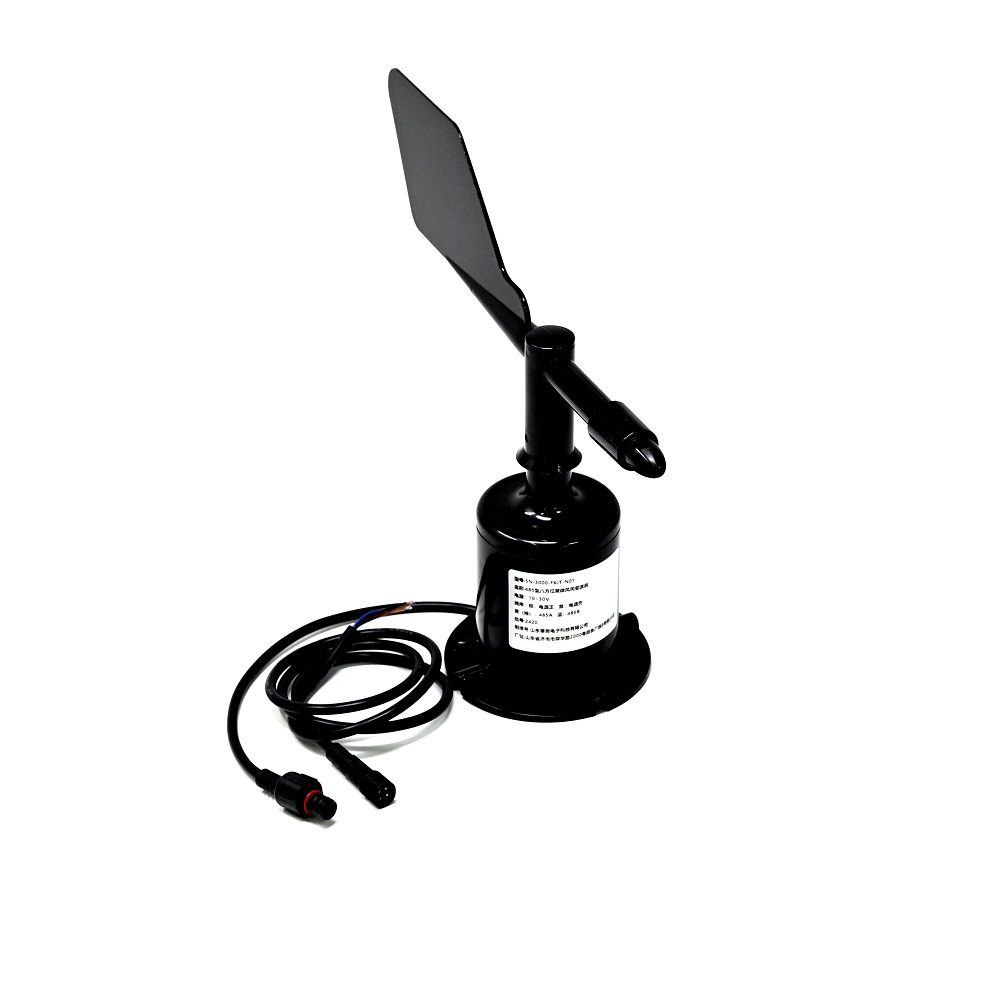

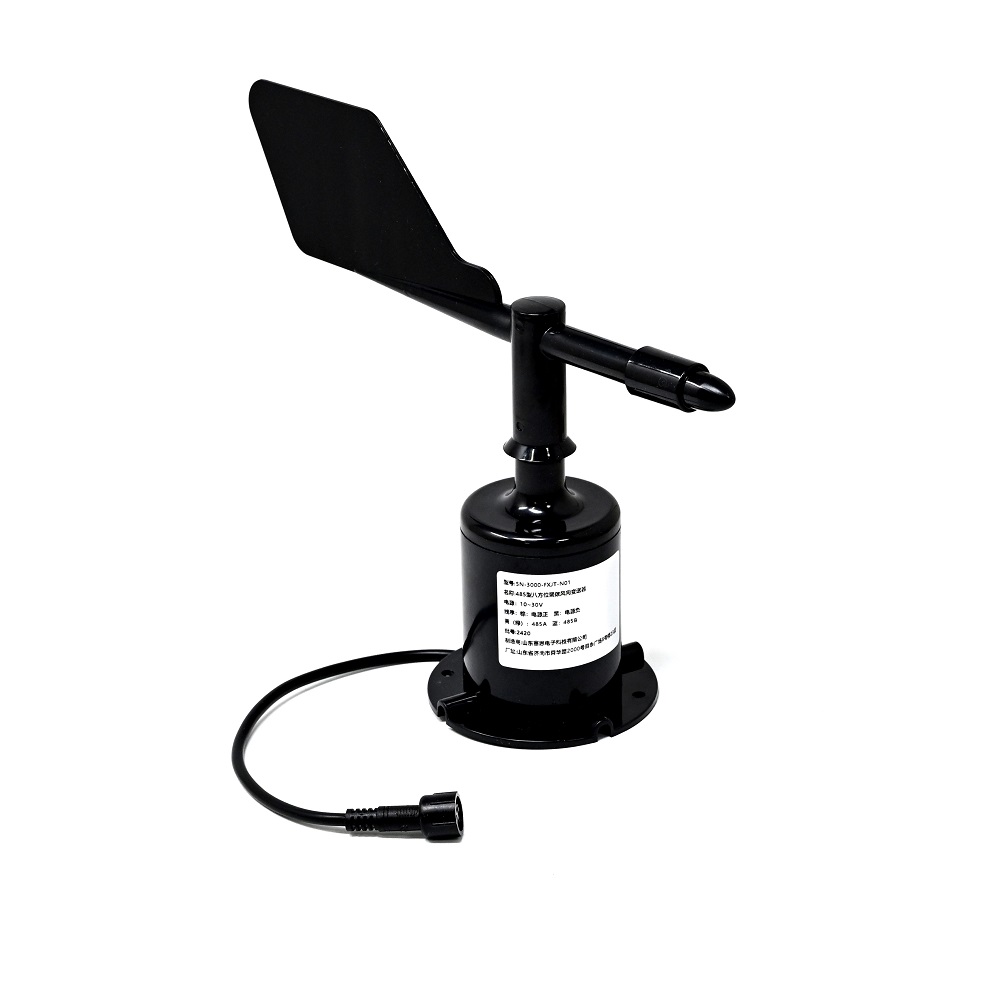

Pro-Range SN-3000-FXJT-N01 Wind Direction Sensor with Polycarbonate Shell - RS485/0-5V/0-10V/4-20mA/Pulse Output
The Pro-Range SN-3000-FXJT-N01 is a professional-grade wind direction sensor featuring a durable polycarbonate shell and a versatile multi-output interface (RS485, 0-5V, 0-10V, 4-20mA, Pulse). Designed for seamless integration into industrial PLCs, SCADA systems, and environmental monitoring stations, it delivers reliable 8-direction wind Vector Technics data across a wide operating temperature range.
Features
- Durable polycarbonate composite shell with anti-corrosion coating for long-term outdoor use.
- Versatile output options: RS485 (Modbus-RTU), 0-5V, 0-10V, 4-20mA, and pulse signals.
- High-performance imported bearings ensure low rotation resistance and accurate measurement.
- Wide operating temperature range from -20°C to +60°C for harsh environments.
- Low power consumption (0.4W) and fast response time (≤0.5 seconds).
Out of stock
The Pro-Range SN-3000-FXJT-N01 wind direction sensor employs a robust mechanical design with a three-cup anemometer configuration to accurately capture environmental wind vectors. Its polycarbonate shell is electroplated and spray-coated for superior corrosion and erosion resistance, ensuring reliable performance in marine, agricultural, and industrial settings. The internal high-precision bearing system minimizes friction, enabling sensitive and accurate directional readings.
This sensor outputs data through a configurable interface, supporting industry-standard analog signals (0-5V, 0-10V, 4-20mA) and digital communication via RS485 using the Modbus-RTU protocol. This flexibility allows for direct integration with data loggers, programmable logic controllers (PLCs), and custom microcontroller setups (Arduino, Raspberry Pi) using appropriate signal conditioners or RS485-to-UART converters.
Additional Information
| Weight | 0.4 kg |
|---|---|
| Dimensions | 25 × 21 × 9 cm |
