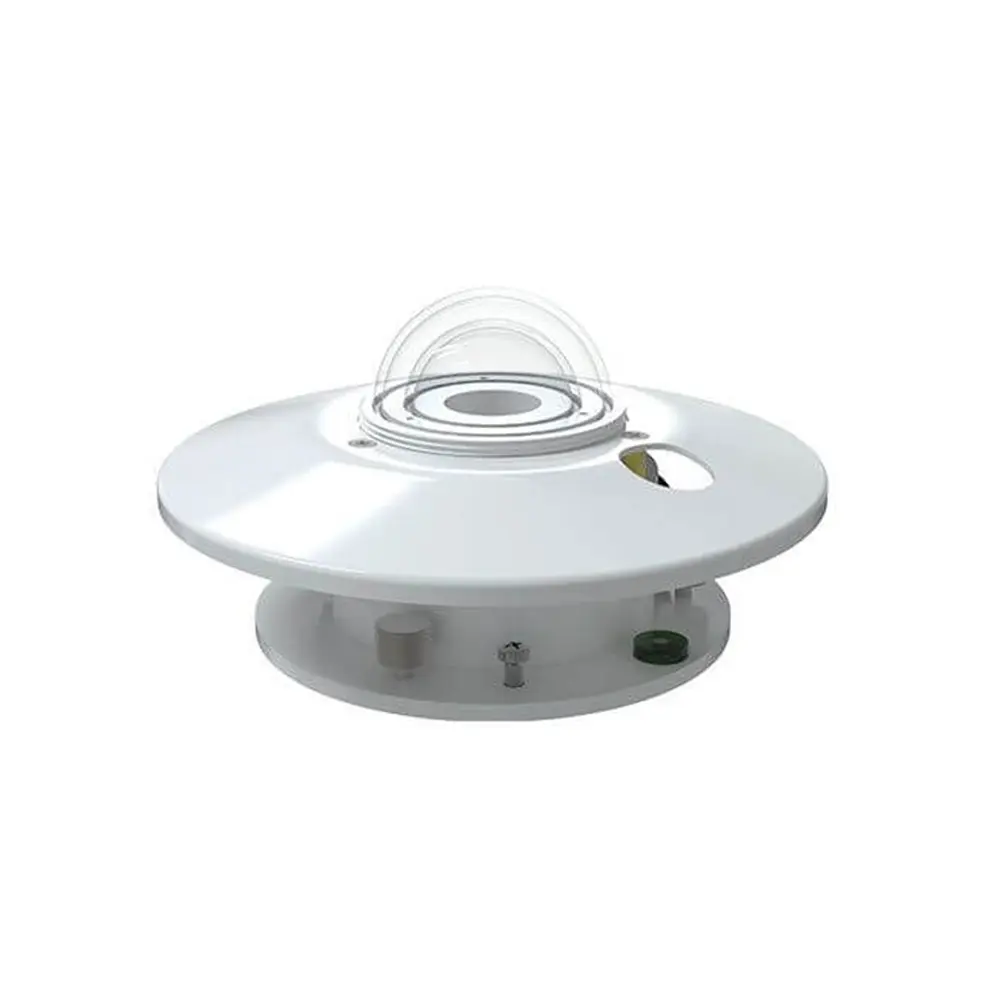

Renke RS-TBQ-N01-AL Pyranometer Sensor -40℃~60℃, 0-2000W/m², RS485 Modbus-RTU
The Renke RS-TBQ-N01-AL is a professional-grade pyranometer sensor utilizing a thermopile detector for precise measurement of global solar irradiance (0-2000W/m²). It features a standard RS485 interface with Modbus-RTU protocol for seamless integration into weather stations, industrial PLCs, and solar energy monitoring systems.
Features
- High-precision thermopile sensor with ±3% accuracy and 1W/m² resolution.
- Broad spectral response range of 0.3 to 3 μm for accurate global solar radiation measurement.
- Integrated RS485 communication with Modbus-RTU protocol for industrial network compatibility.
- Robust environmental rating: operates from -40°C to 60°C and 0-95% RH (non-condensing).
- Includes leveling screws and a bubble level for precise horizontal installation.
Out of stock
The RS-TBQ-N01-AL pyranometer operates on the thermoelectric principle, where incident solar radiation is absorbed by a black-coated thermopile, generating a microvolt-level signal proportional to irradiance. This signal is conditioned for stable output, suitable for long-term outdoor deployment. A desiccant-filled drying cartridge is integrated to prevent internal condensation and maintain measurement integrity under high humidity conditions.
Designed for professional meteorological and solar energy applications, the sensor’s wide operating temperature range and IP-rated housing (implied by environmental specs) ensure reliable performance in harsh climates. The standard Modbus-RTU protocol over RS485 allows for easy daisy-chaining and integration into SCADA systems, BMS, or custom data loggers.
Additional Information
| Weight | 1.011 kg |
|---|---|
| Dimensions | 24 × 23 × 13 cm |
