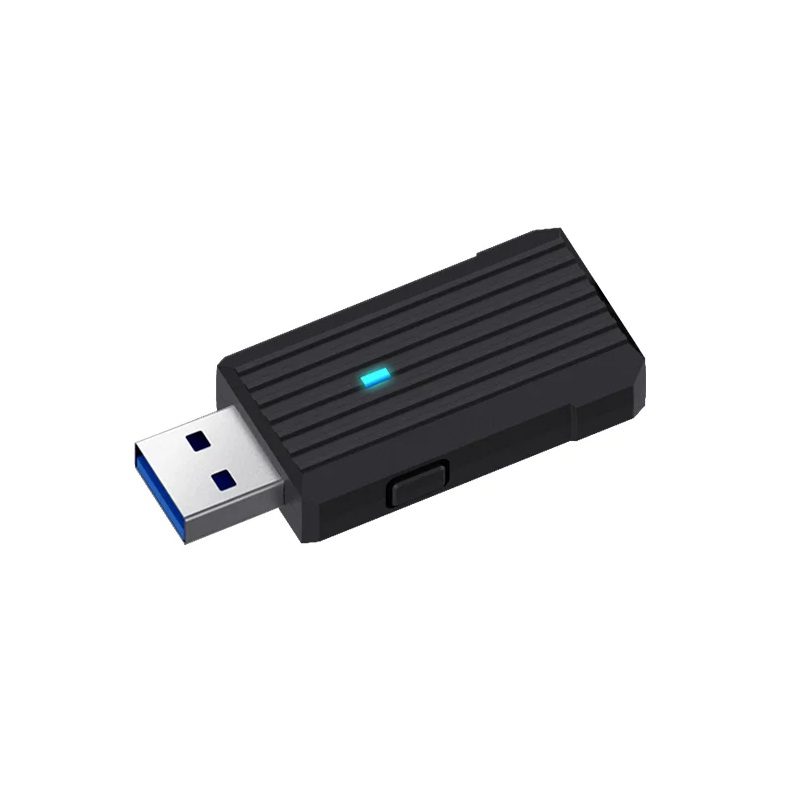

MOKO Smart Smart L05 USB BLE Anchor Beacon - 250m External Antenna, iBeacon/Eddystone

The MOKO Smart L05 Beacon is powered directly through its USB connection, drawing standard 5V DC power. It does not contain or require any internal batteries, ensuring continuous, maintenance-free operation without the need for battery replacements or recharging cycles.

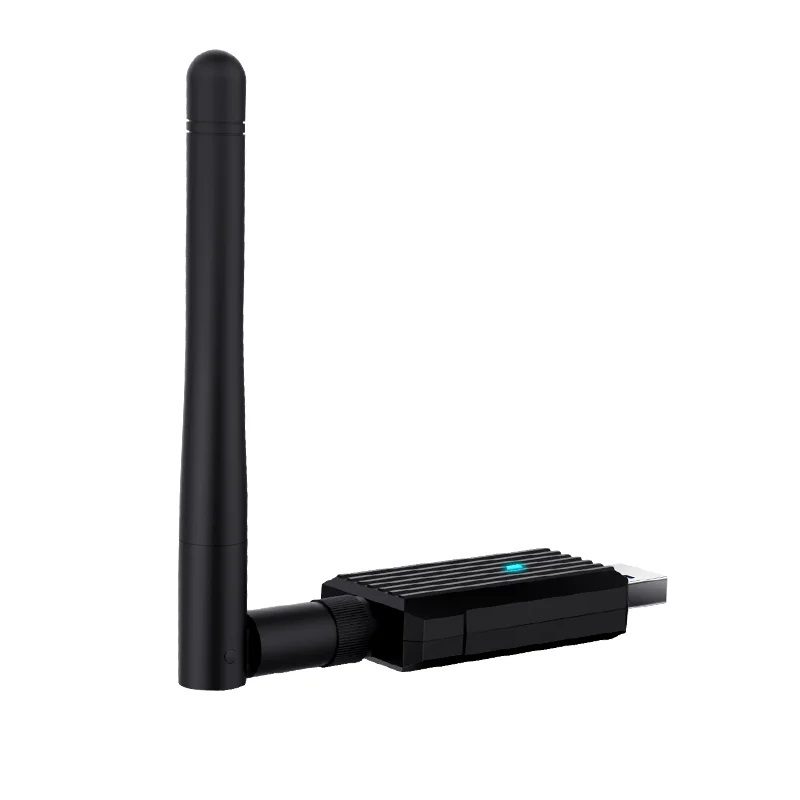

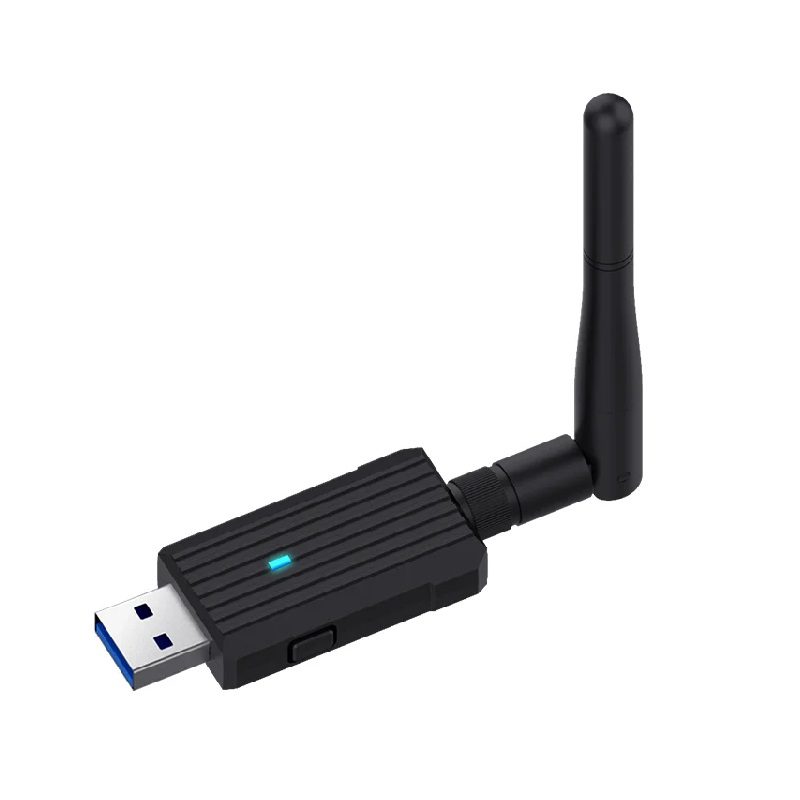

The primary difference is the integrated antenna and resulting broadcast range. The L05I model uses an internal antenna with a typical range of 150 meters. The L05E model, featured here, uses an external antenna to provide an extended and more robust broadcast range of up to 250 meters, making it suitable for larger spaces.

This beacon simultaneously supports both the iBeacon (Apple) and Eddystone (Google) Bluetooth Low Energy (BLE) advertising protocols. This dual-protocol compatibility allows for flexible integration with a wide range of smartphone apps, cloud platforms, and middleware solutions for location-based services.

Yes, the beacon's broadcast parameters, including its UUID, Major and Minor values (for iBeacon), and Eddystone frame data, are configurable. Configuration is typically performed using a dedicated mobile app or configuration tool provided by the manufacturer or a third-party platform that communicates with the beacon via BLE.

With its durable ABS+PC housing and a wide operating temperature range of -20°C to +50°C, the L05 is built for reliable performance in various environments. However, as a USB-powered device, the USB port and connection must be protected from direct moisture exposure unless placed within a suitably rated enclosure for harsh outdoor conditions.
