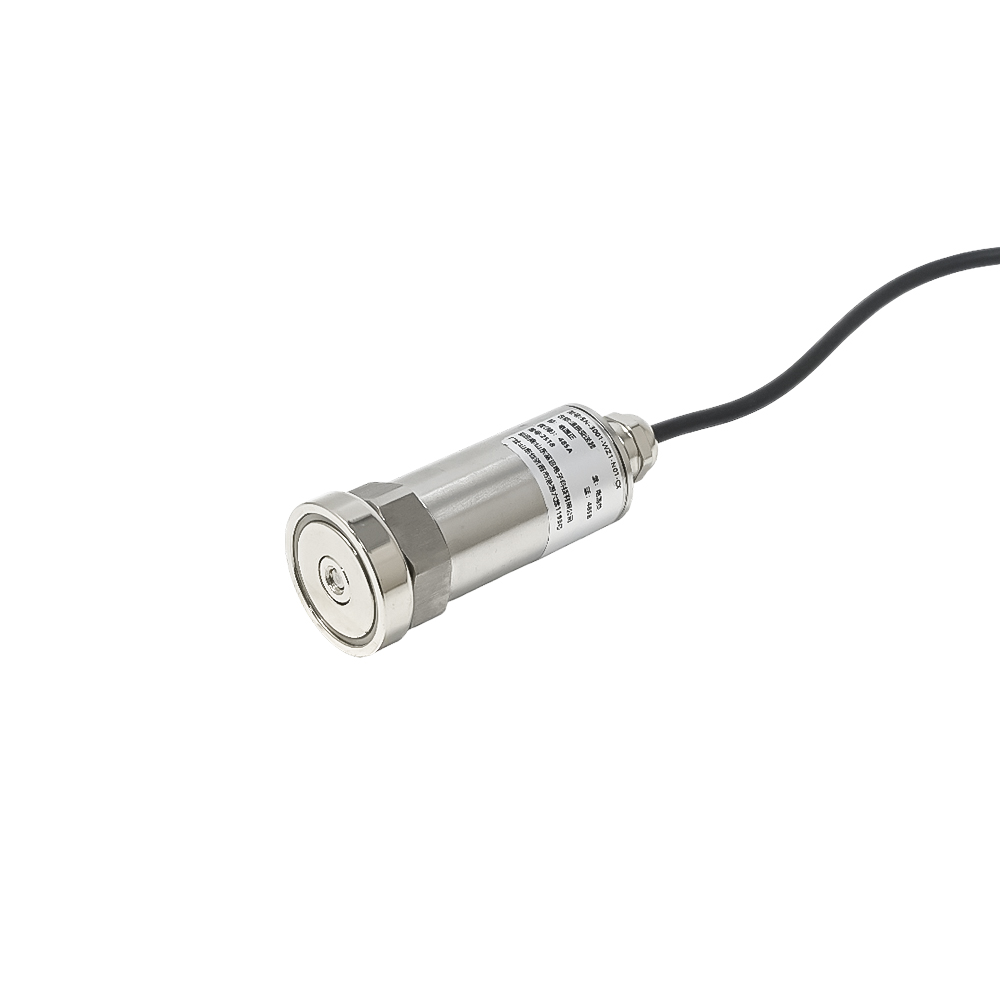

SN-3001-WZ1-NO1-CX Temperature and Vibration Sensor - RS485 Modbus, IP68 Waterproof

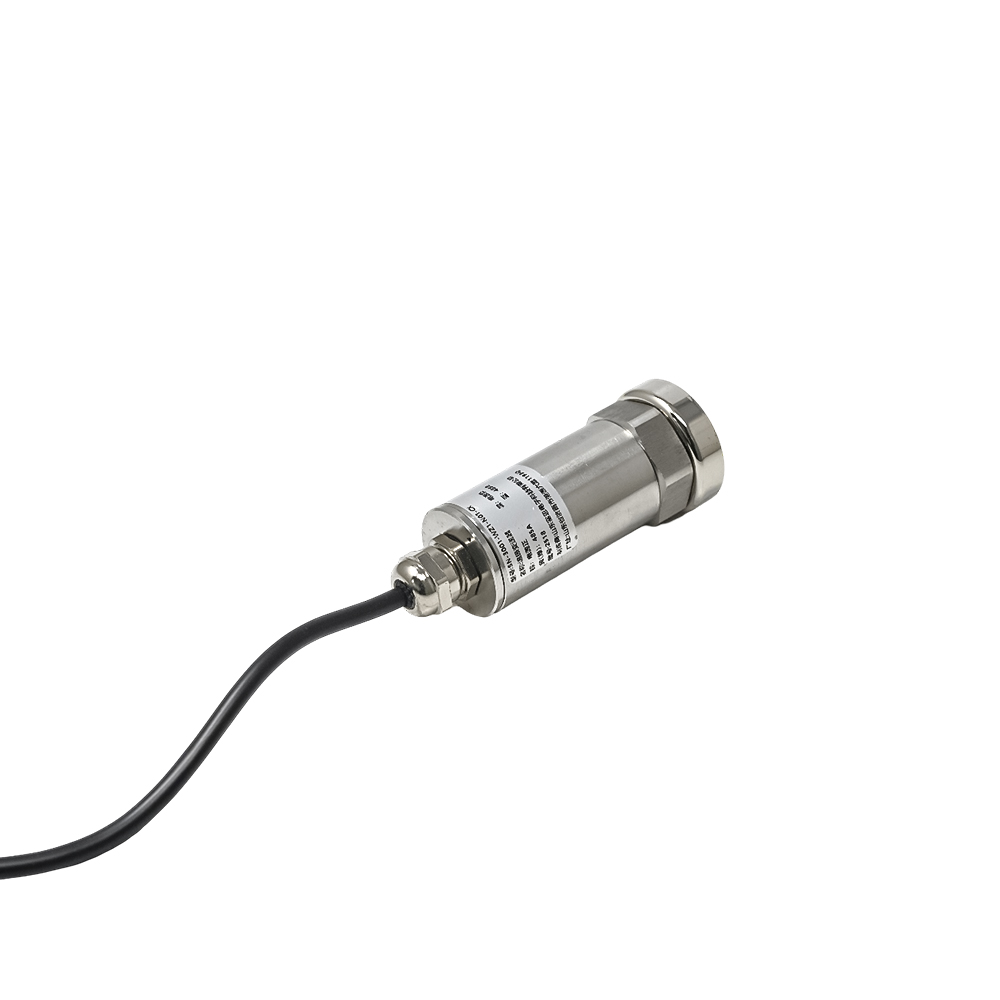

SN-3001-WZ1-NO1-CX Temperature and Vibration Sensor - RS485 Modbus, IP68 Waterproof - Image 2

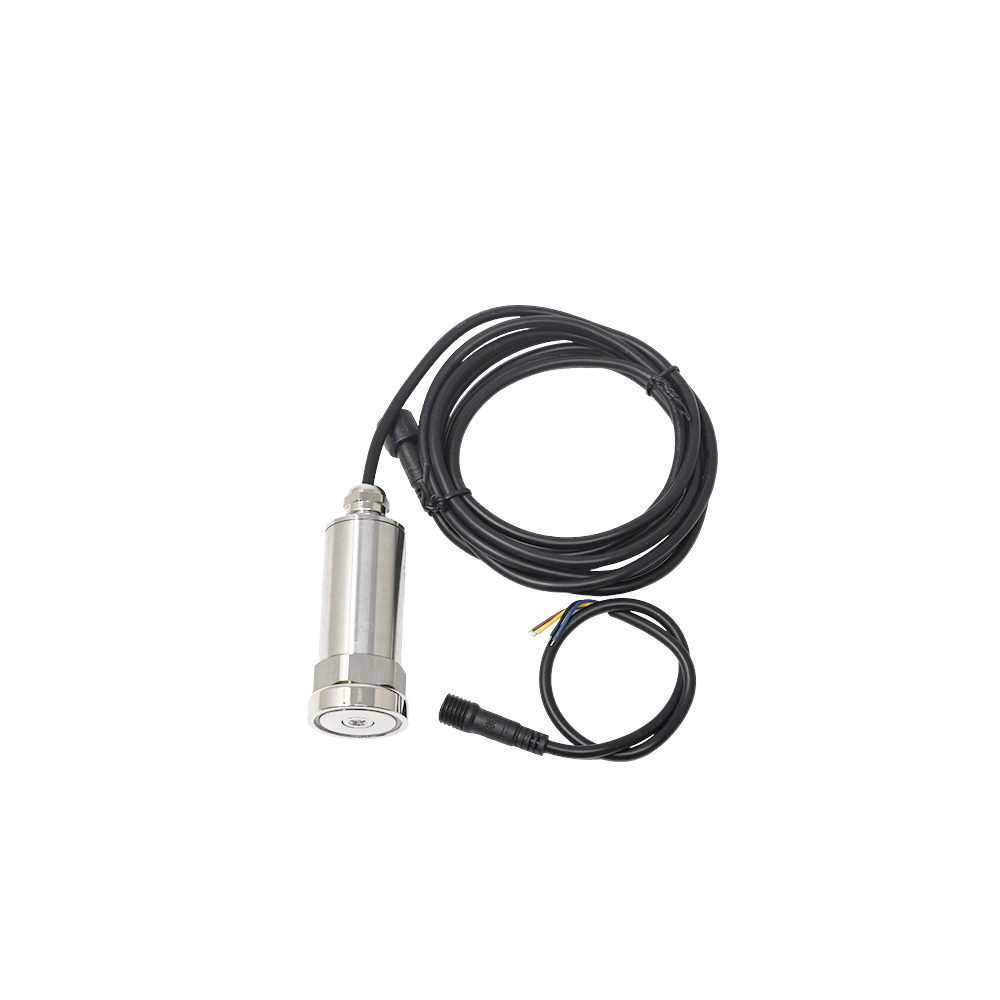

SN-3001-WZ1-NO1-CX Temperature and Vibration Sensor - RS485 Modbus, IP68 Waterproof - Image 3
SKU: SENS-0498
📋 GST Invoice Available

SN-3001-WZ1-NO1-CX Temperature and Vibration Sensor - RS485 Modbus, IP68 Waterproof

₹10,289.00 (Inclusive of all taxes)
Out of Stock

The SN-3001-WZ1-NO1-CX is an industrial-grade RS485 Modbus sensor for simultaneous triaxial vibration and surface temperature monitoring. Designed for 10-30V DC systems, it provides critical condition data for predictive maintenance in motors, pumps, and rotating machinery.

Features

  • Triaxial MEMS vibration sensor measuring velocity & displacement (X, Y, Z axes)
  • Integrated high-accuracy surface temperature measurement
  • RS485 Modbus communication protocol for industrial PLC & SCADA integration
  • IP68 waterproof rating for harsh, washdown industrial environments
  • Wide 10-30V DC operating voltage with low ≤0.1A current consumption

Out of stock

Description

The SN-3001-WZ1-NO1-CX employs a high-performance MEMS accelerometer chip to deliver precise, stable vibration measurements across three axes, capturing both velocity and displacement data critical for machinery health analysis. An integrated temperature sensor provides accurate surface temperature readings, enabling comprehensive condition monitoring from a single, compact device.

Built for demanding industrial applications, the sensor features a robust IP68-sealed housing capable of withstanding washdowns and corrosive environments. Its wide 10-30V DC input range ensures compatibility with standard 24V industrial control panels, while the RS485 Modbus interface allows for seamless daisy-chaining and integration into existing predictive maintenance and SCADA systems.

Key Features

  • Multi-Parameter Monitoring: Combines triaxial vibration (velocity & displacement) and surface temperature sensing in one IP68-rated unit.
  • Industrial Communication: Standard RS485 interface with Modbus RTU protocol for reliable long-distance data transmission to PLCs, HMIs, and data loggers.
  • Robust Environmental Protection: IP68 waterproof and dustproof construction ensures reliable operation in harsh factory, marine, and outdoor settings.
  • Flexible Power & Mounting: Operates from 10-30V DC; supports threaded (M8 or M12) and magnetic base installation for quick deployment on motors, gearboxes, and pumps.
  • Low Power Consumption: Draws ≤0.1A, making it suitable for continuous monitoring in energy-conscious applications.
  • Remote Firmware Updates: Supports over-the-air firmware upgrades for future feature enhancements and calibration adjustments.
  • Durable Mechanical Design: Compact 70mm length, 30mm diameter aluminum or stainless steel housing built for long-term reliability.

Applications

  • Motor & Pump Predictive Maintenance: Continuous monitoring of bearing wear, imbalance, and overheating in industrial motors, centrifugal pumps, and fans.
  • Gearbox & Conveyor Health Monitoring: Detection of gear mesh faults, misalignment, and abnormal vibration patterns in power transmission systems.
  • Rotating Machinery Condition Analysis: Integration into SCADA systems for early fault detection in compressors, turbines, and mixers to prevent unplanned downtime.
  • HVAC System Monitoring: Vibration and temperature sensing on blower wheels, chillers, and cooling tower fans for efficiency and failure prevention.

Technical Specifications

Model NumberSN-3001-WZ1-NO1-CX
Sensor TypeTemperature & Triaxial Vibration
Vibration AxesX, Y, Z
Vibration ParametersVelocity, Displacement
Communication InterfaceRS485 Modbus RTU
Operating Voltage10–30 V DC
Rated Voltage24 V DC
Operating Current≤ 0.1 A
Ingress ProtectionIP68
Length70 mm
Diameter30 mm
Weight220 g
Shipping Weight0.275 kg
Shipping Dimensions15 × 14 × 5 cm

Frequently Asked Questions

What is the communication protocol and how do I wire the SN-3001-WZ1-NO1-CX sensor?

The sensor uses a standard RS485 interface with the Modbus RTU protocol. Connect the A+ and B- data lines to your RS485 master device (PLC, data logger, or USB converter) following proper termination and shielding practices for industrial noise immunity. The wide 10-30V DC power input simplifies integration with common 12V or 24V industrial power supplies.

What vibration parameters does this sensor measure and on which axes?

This is a triaxial sensor, meaning it measures vibration simultaneously on the X, Y, and Z axes. It provides data for both vibration velocity (typically in mm/s) and displacement (in mm or μm), which are key metrics for ISO 10816 machinery vibration standards and predictive maintenance algorithms.

Is the SN-3001 sensor suitable for outdoor or washdown environments?

Yes, with its IP68 waterproof and dustproof rating, the sensor is designed to withstand harsh conditions. It is suitable for outdoor installation, washdown areas in food processing, and other environments with exposure to moisture, dust, and corrosive agents, ensuring long-term reliability.

How is the sensor mounted and what is its operating temperature range?

The sensor supports flexible mounting via a threaded base (commonly M8 or M12) or an optional magnetic mount for quick installation on ferrous surfaces. While the exact operating temperature range should be verified in the datasheet, sensors of this class typically operate from -20°C to +85°C, suitable for most industrial settings.

Package Includes

  • 1 x SN-3001-WZ1-NO1-CX Temperature and Vibration Sensor
  • 1 x Industrial Cable (Length typically 1-2 meters, connector type dependent on configuration)

Additional Information

Weight 0.22 kg
Dimensions 7 × 3 cm
