SKU: SENS-0346
📋 GST Invoice Available

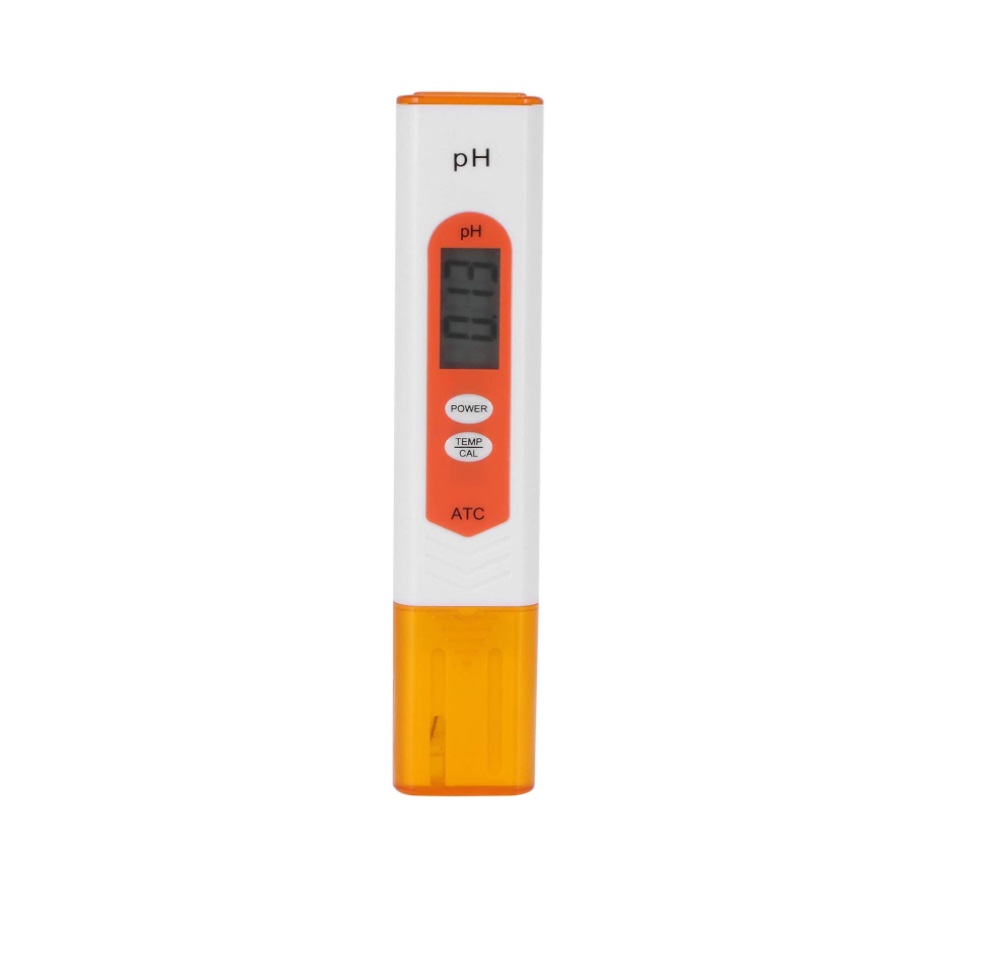

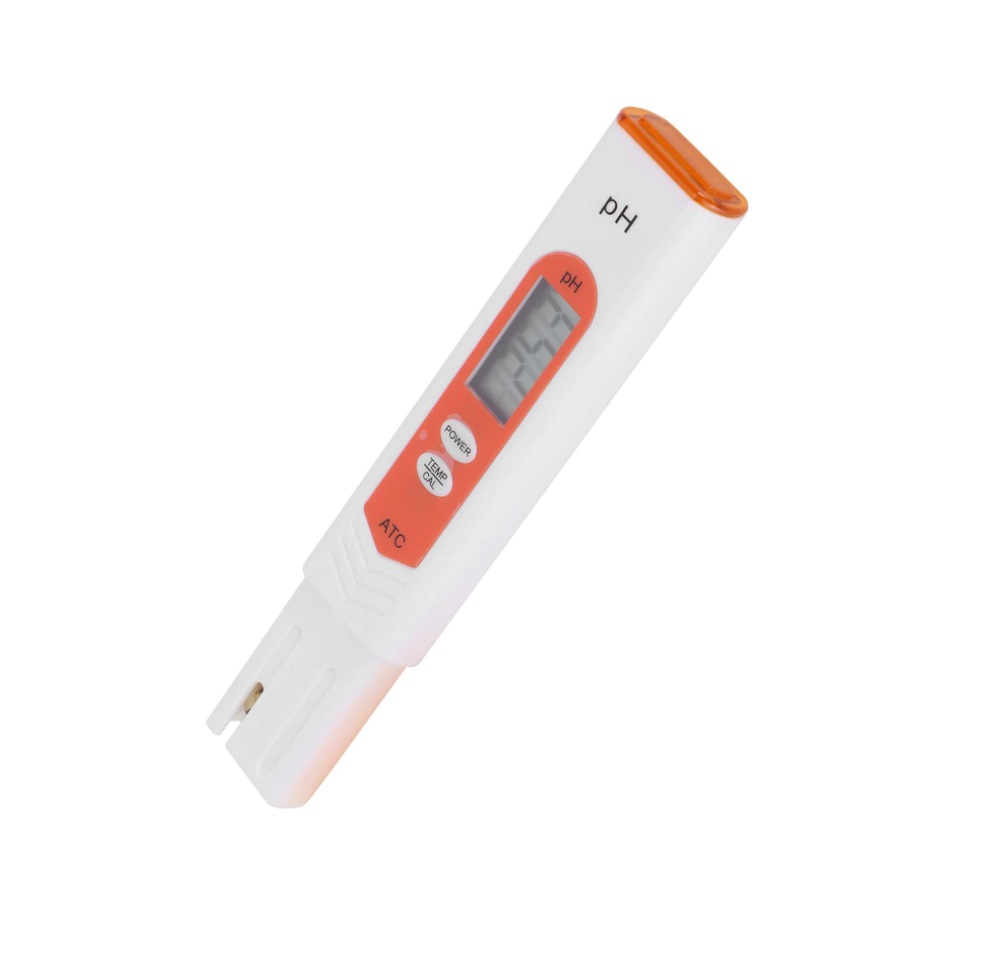

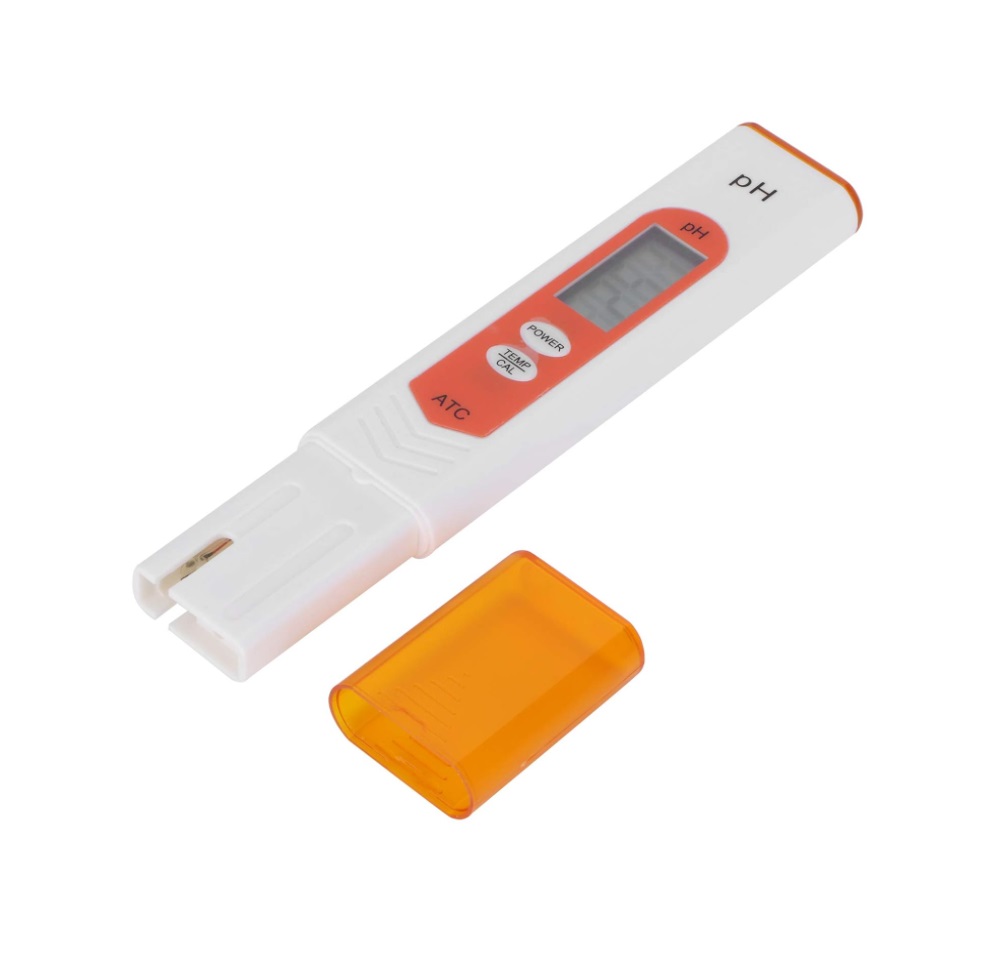

Generic PH-05 Portable Water Quality Tester pH Detector - Temperature Display & ATC

₹402.00 (Inclusive of all taxes)
Out of Stock

The Generic PH-05 is a portable, battery-powered pH meter designed for quick and accurate water quality analysis in aquaculture, fish tanks, and laboratory aqueous solutions. It features a built-in temperature sensor with automatic temperature compensation (ATC) and a clear LCD for simultaneous pH and temperature (°C/°F) readings.

Features

  • Wide pH measurement range from 0.00 to 14.00 with high-sensitivity electrode.
  • Integrated temperature sensor with ATC for readings from 0-60°C (32-140°F).
  • Portable, handheld design powered by two LR44 button cell batteries.
  • Clear LCD display showing pH, temperature, and battery status.
  • Includes pH calibration buffer powders (4.00, 6.86, 9.18) for accurate setup.

Out of stock

Description

The PH-05 Portable pH Meter is a dedicated instrument for monitoring acidity and alkalinity in aqueous environments. It employs a combined glass electrode for stable pH potential measurement, coupled with a thermistor for real-time temperature sensing. The Automatic Temperature Compensation (ATC) function corrects the pH reading based on the sampled liquid’s temperature, ensuring accuracy across its full 0-60°C operational range.

Housed in an ABS plastic casing, the device is designed for field and benchtop use in applications from aquaculture and hydroponics to educational labs and environmental testing. The simple one-button operation cycles between pH and temperature displays, making it accessible for both professionals and hobbyists requiring reliable water quality data.

Key Features

  • High-sensitivity combined pH electrode with stable, fast response.
  • Automatic Temperature Compensation (ATC) from 0 to 60°C (32 to 140°F).
  • Dual-scale temperature display switchable between Celsius and Fahrenheit.
  • Large, backlit LCD screen for clear readability in various lighting conditions.
  • Low-power design powered by two standard LR44 batteries for extended portability.
  • Durable ABS housing providing splash resistance for handheld use.
  • Simple one-button operation for power and display mode cycling.
  • Includes a complete set of pH calibration buffers (4.00, 6.86, 9.18) for precise instrument calibration.

Applications

  • Aquaculture and fish tank water quality monitoring and management.
  • Hydroponic system nutrient solution pH level testing.
  • Educational laboratory experiments and environmental science fieldwork.
  • Basic water quality assessment for pools, spas, and freshwater aquariums.
  • Food processing and beverage industry pH spot-checks.

Technical Specifications

Model NumberPH-05
Measurement Range (pH)0.00 - 14.00 pH
Temperature Range0 - 60 °C / 32 - 140 °F
Temperature CompensationAutomatic (ATC)
Power Supply2 x LR44 Button Cell Batteries
OperationSingle Power/Function Button
DisplayLCD with Backlight
Housing MaterialABS Plastic
Primary ApplicationWater Quality Analysis

Frequently Asked Questions

How do I calibrate the PH-05 pH meter?

Use the included buffer powder packets (4.00, 6.86, 9.18) to create calibration solutions. Immerse the electrode in the buffer, press the power button to enter calibration mode if applicable (consult the manual), and allow the reading to stabilize. The meter will store the calibration point. Always calibrate with fresh buffers for best accuracy.

What is Automatic Temperature Compensation (ATC) and why is it important?

ATC automatically adjusts the pH reading based on the temperature of the solution being measured, as pH electrode output is temperature-dependent. The PH-05 has a built-in temperature sensor, ensuring accurate pH values across its 0-60°C range without manual correction, which is critical for reliable water quality data.

What type of batteries does the PH-05 use and how long do they last?

The PH-05 operates on two standard LR44 button cell batteries. Battery life depends on usage frequency and backlight use, but under typical intermittent use, they can last for several months. The LCD will display a low battery indicator when replacement is needed.

Can this pH meter be used for testing soil or other non-aqueous liquids?

No. The PH-05 is designed specifically for testing pH in aqueous (water-based) solutions. Its glass electrode requires immersion in a liquid medium. Using it in soil, viscous fluids, or corrosive chemicals can damage the sensitive electrode and void its accuracy.

Package Includes

  • 1 x PH-05 Portable pH Meter
  • 1 x Set of pH Buffer Powder (4.00, 6.86, 9.18)

Additional Information

Weight 0.11 kg
Dimensions 10 × 6 × 4 cm
