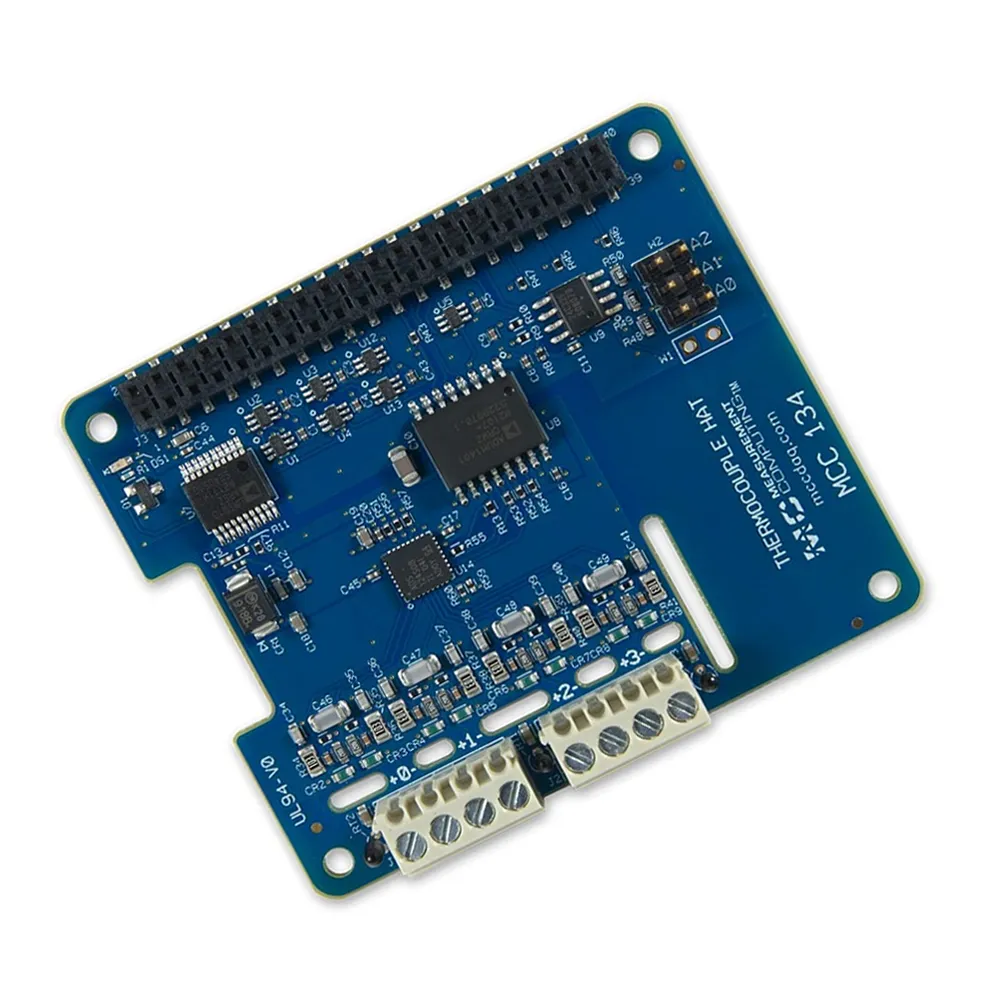

Digilent MCC 134: Thermocouple DAQ HAT for Raspberry Pi
The Digilent MCC 134 is a high-accuracy, 24-bit thermocouple measurement DAQ HAT designed for Raspberry Pi systems. It provides four isolated inputs, supporting a wide range of thermocouple types with integrated cold junction compensation for precise temperature monitoring.
Features
- Four isolated thermocouple inputs for flexible temperature monitoring.
- Integrated 24-bit A/D converter ensures professional-grade accuracy.
- Supports a wide range of thermocouple types (J, K, R, S, T, N, E, B).
- Features cold junction compensation for precise measurements.
Out of stock
The Digilent MCC 134 DAQ HAT integrates high-precision thermocouple measurement capabilities into Raspberry Pi-based data acquisition systems. Featuring four isolated thermocouple inputs, this HAT utilizes a 24-bit analog-to-digital converter to deliver professional-grade accuracy for critical temperature monitoring applications. Each channel supports a wide range of thermocouple types, including J, K, R, S, T, N, E, and B, with individual type selection for maximum flexibility.
Designed for robust operation, the MCC 134 includes cold junction compensation and open thermocouple detection, ensuring reliable data even in challenging environments. Users can stack up to eight MCC HATs onto a single Raspberry Pi, enabling scalable, multi-function data logging solutions. Digilent provides comprehensive C/C++ and Pythonâ„¢ examples, open-source libraries, and extensive API documentation to facilitate rapid development and integration.
Additional Information
| Weight | 0.3 kg |
|---|---|
| Dimensions | 27 × 21 × 5 cm |
