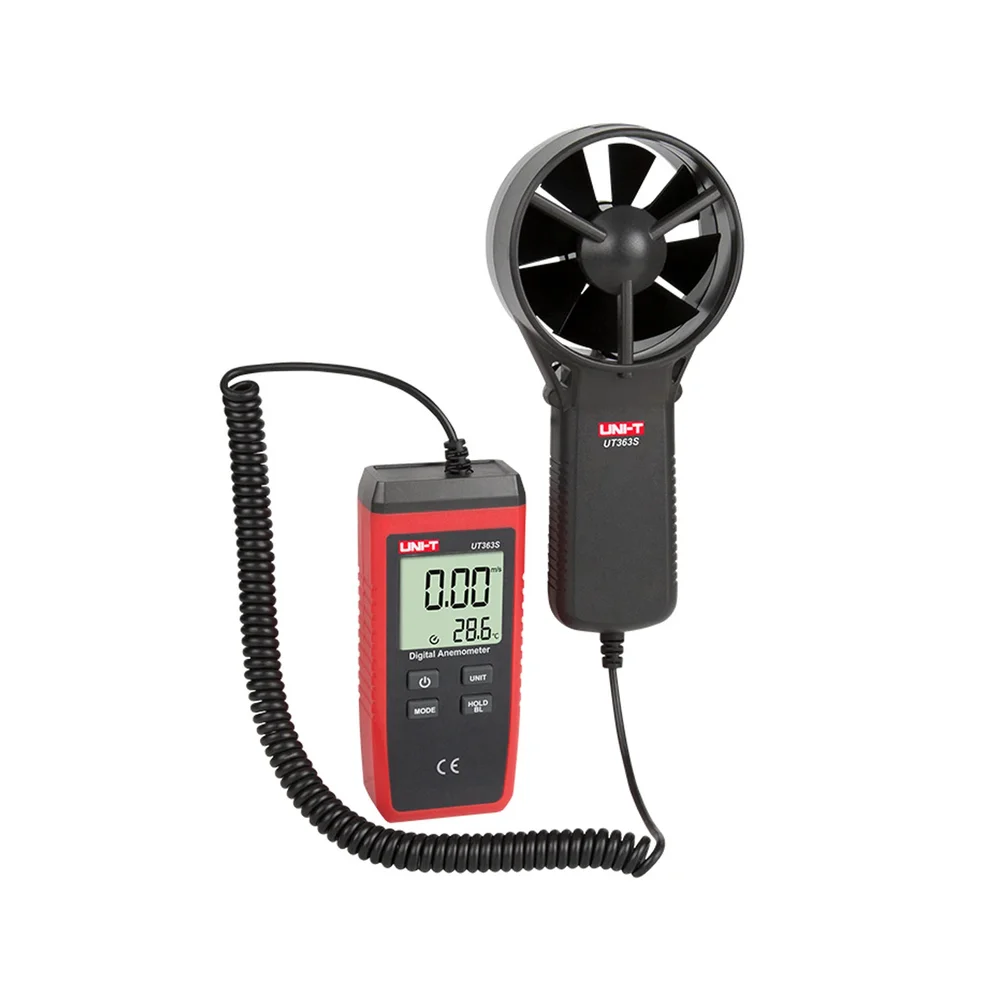

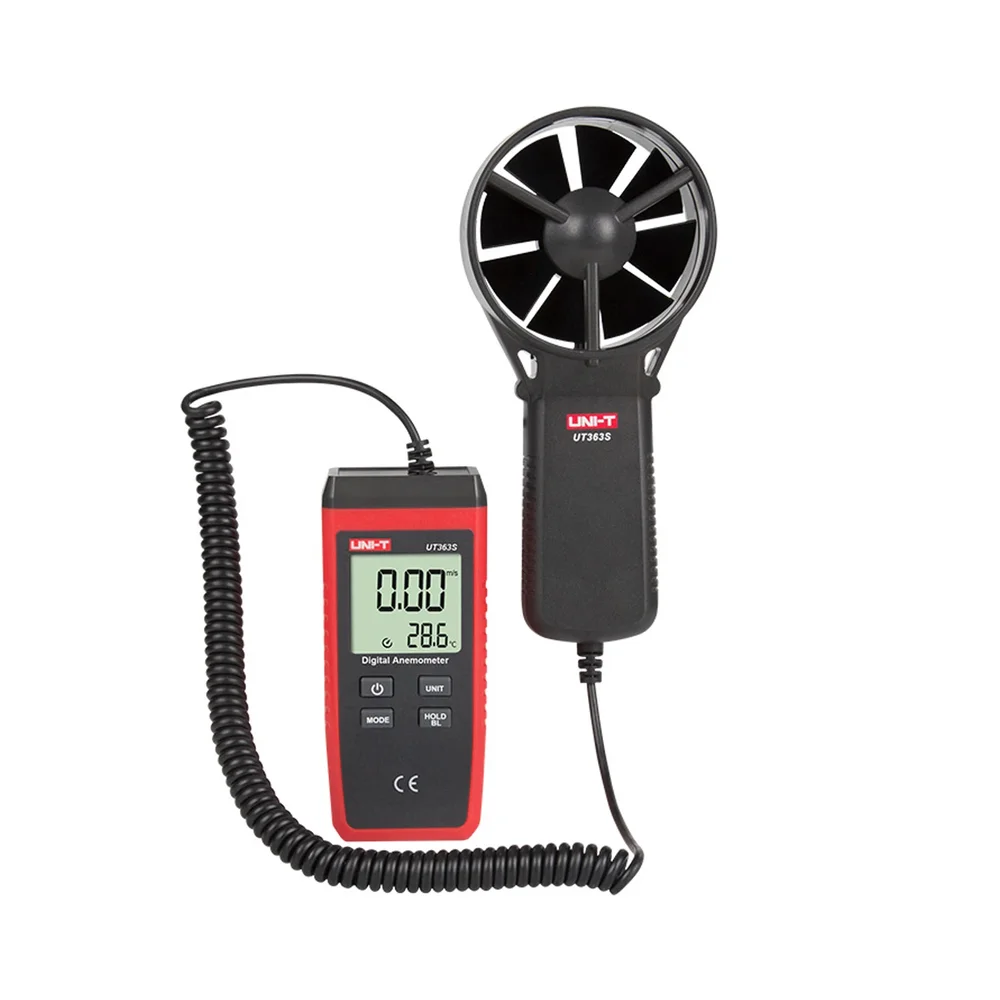

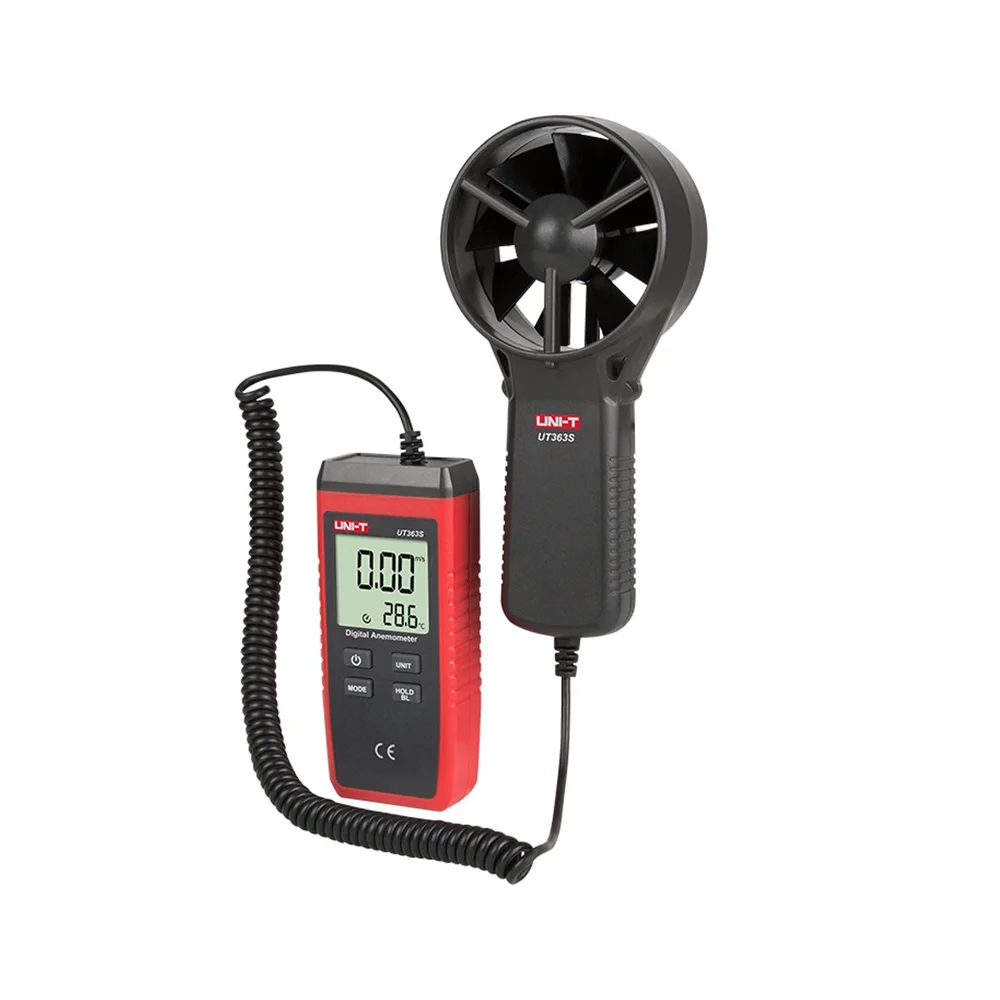

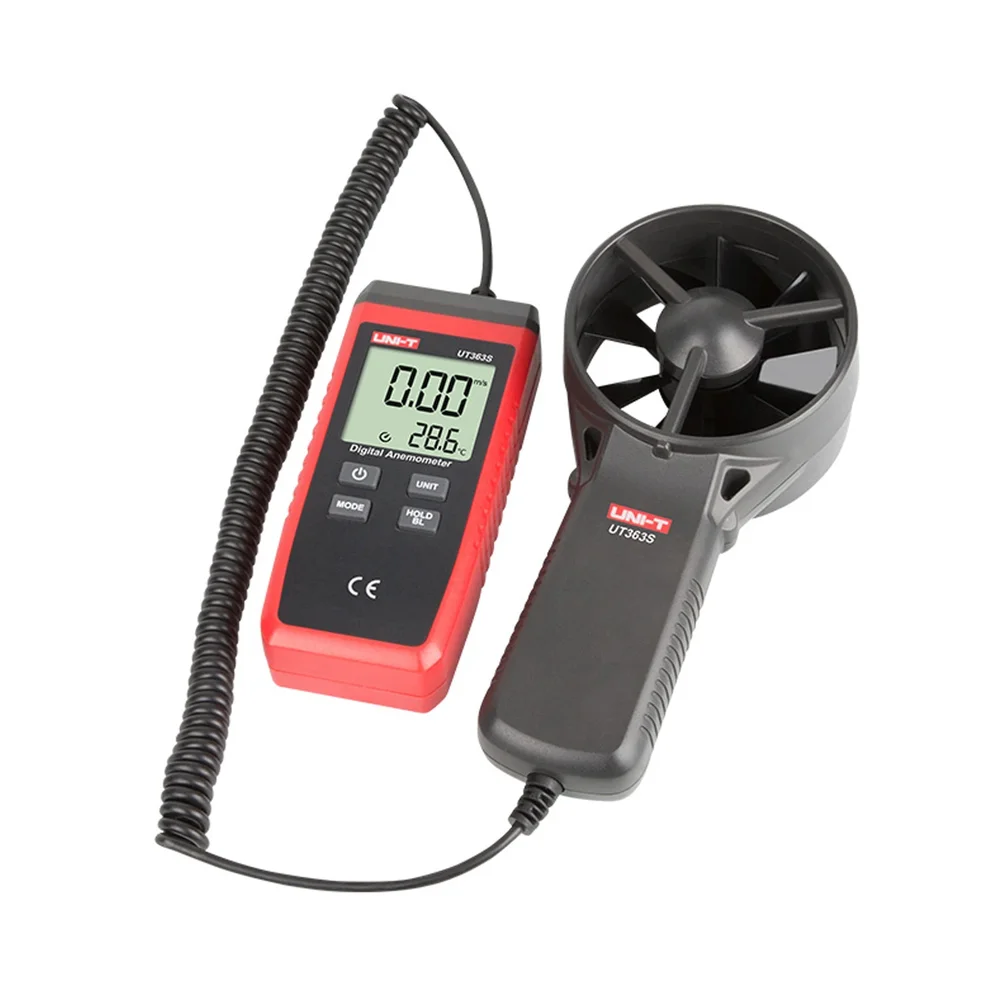

UNI-T UT363S Anemometer Wind Speed Meter 0.4~30m/s, Temperature Measurement, Split Sensor, Backlight LCD

â‚č2,929.00 (Inclusive of all taxes)
Out of Stock

The UNI-T UT363S is a professional-grade split-type anemometer for precise wind speed (0.4–30 m/s) and temperature (-10°C to 50°C) measurement. Featuring a flexible sensor probe and a backlit LCD, it is designed for HVAC, ventilation inspection, and environmental monitoring applications.

Features

  • Split-type sensor design for accessing confined or difficult-to-reach airflow points.
  • Measures wind speed from 0.4 to 30 m/s with an accuracy of ±(5%+0.5 m/s).
  • Integrated temperature measurement from -10°C to 50°C (±2°C accuracy).
  • Backlit LCD display with MAX/MIN/AVG, data hold, and multiple unit support (m/s, km/h, ft/min, knots, mph).
  • Compact, handheld design with auto power-off and low battery indication for field use.

Out of stock

Description

The UNI-T UT363S Anemometer utilizes a precision vane-type sensor to measure wind speed, coupled with an integrated thermistor for ambient temperature readings. Its split-type design separates the measurement head from the display unit, providing exceptional flexibility for duct inspections, vent checks, and other applications where direct access is limited.

Engineered for stable performance and low power consumption, the meter features a fast 0.55-second sampling rate and records maximum, minimum, and average values. The robust construction and clear backlit display ensure reliable operation in professional environments such as HVAC servicing, industrial ventilation systems, and environmental studies.

Key Features

  • Flexible split-type sensor probe for versatile placement and measurement.
  • High-accuracy wind speed measurement across a broad 0.4–30 m/s range.
  • Simultaneous ambient temperature sensing with dual °C/°F unit support.
  • Advanced data functions: MAX, MIN, AVG recording and data hold for analysis.
  • User-selectable wind speed units: m/s, km/h, ft/min, knots, and mph.
  • Energy-efficient design with auto power-off and clear low-battery alert.
  • Large, backlit LCD display (35mm x 32mm) for readability in low-light conditions.
  • Durable, ergonomic housing designed for reliable handheld field use.

Applications

  • HVAC system balancing and duct airflow velocity measurement.
  • Industrial ventilation and fume extraction efficiency inspection.
  • Environmental wind speed monitoring for meteorological and sports applications.
  • Fan performance testing and optimization in mechanical systems.
  • Airflow analysis in confined spaces for mining, petrochemical, and energy-saving projects.

Technical Specifications

Item TypeSplit-Type Anemometer
BrandUNI-T
ModelUT363S
Wind Speed Range0.4 to 30 m/s
Wind Speed Accuracy±(5% + 0.5 m/s)
Wind Speed Unitsm/s, km/h, ft/min, knots, mph
Temperature Range-10°C to 50°C (14°F to 122°F)
Temperature Accuracy±2°C / ±4°F
Wind Scale0 to 12
Sampling Rate0.55 seconds
Temperature Unit°C / °F (selectable)
Operating Temperature0°C to 40°C
Display Size35 mm x 32 mm
Product Dimensions120 mm x 53 mm x 43 mm
Product Weight365 g

Frequently Asked Questions

What is the advantage of the split-type sensor design?

The split-type design separates the measurement vane from the display unit via a cable, allowing you to insert the sensor into tight, confined, or hard-to-reach spaces like ductwork, vents, or machinery housings. This provides much greater flexibility and access for accurate airflow measurement compared to a single integrated unit.

How accurate is the temperature measurement function?

The integrated temperature sensor has a range of -10°C to 50°C with an accuracy of ±2°C (±4°F). It uses a thermistor for measurement and displays readings in selectable °C or °F units, making it suitable for general ambient temperature checks in ventilation and environmental monitoring scenarios.

Can this anemometer log or store measurement data?

The UT363S does not have internal memory for continuous data logging. However, it features MAX, MIN, and AVG recording functions that track the highest, lowest, and average readings during a session. The Data Hold function also freezes the current display value for manual recording.

What power source does it use and what is the battery life?

The meter is powered by standard AAA batteries (included in some packages; check contents). It features an auto power-off function to conserve battery life during inactivity and a clear low-battery indicator on the LCD. Exact battery life depends on usage frequency and backlight use.

Package Includes

  • 1 x UNI-T UT363S Anemometer Wind Speed Meter
  • 1 x User Manual

Additional Information

Weight 0.365 kg
Dimensions 12 × 5.3 × 4.3 cm
