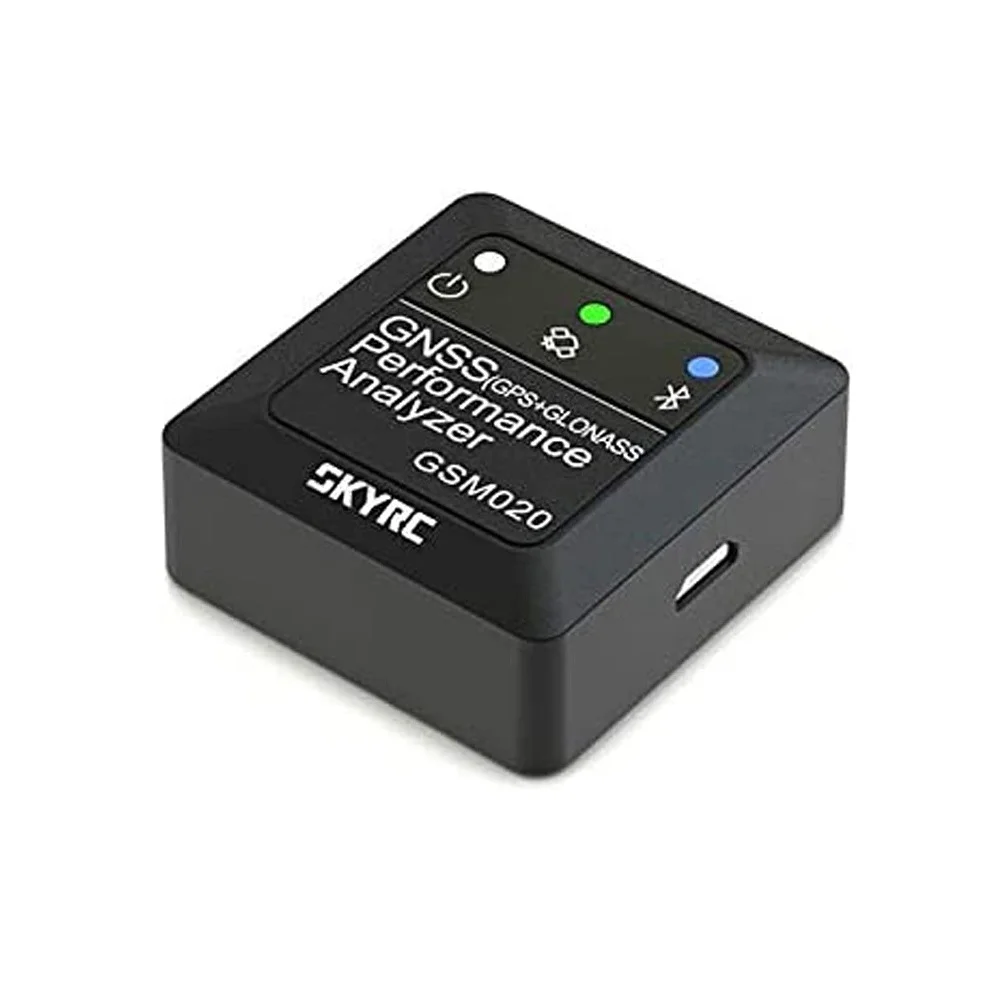

SkyRC GSM020 GNSS Performance Analyzer Speed Meter
The SkyRC GSM020 is a compact GNSS performance analyzer and speed meter for RC models, utilizing GPS and GLONASS satellite systems to log speed, acceleration, G-forces, and distance data directly to a mobile app via Bluetooth 4.0.
Features

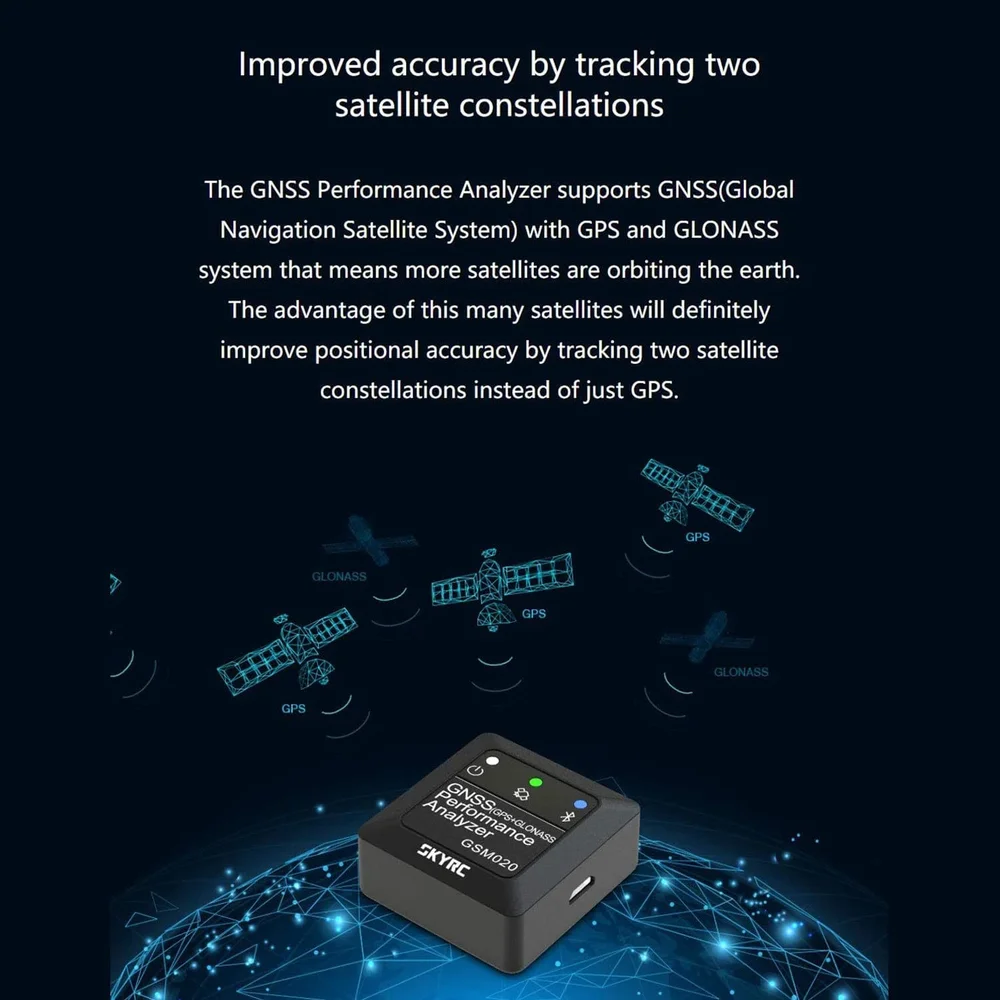

- Dual-constellation GNSS receiver (GPS & GLONASS) for enhanced positional accuracy and reliable speed tracking at up to 10 Hz update rate.

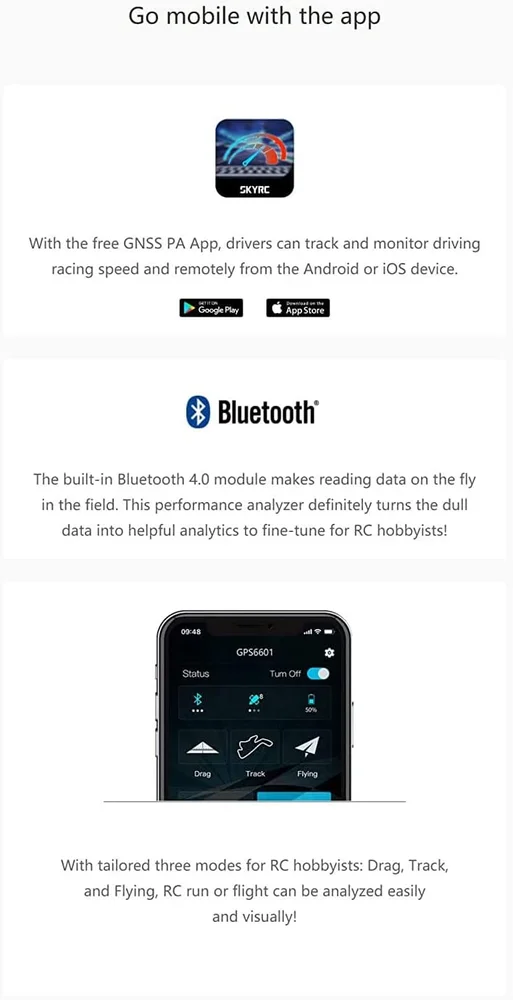

- Integrated Bluetooth 4.0 module wirelessly transmits logged performance data to the free GNSS PA app for iOS and Android.

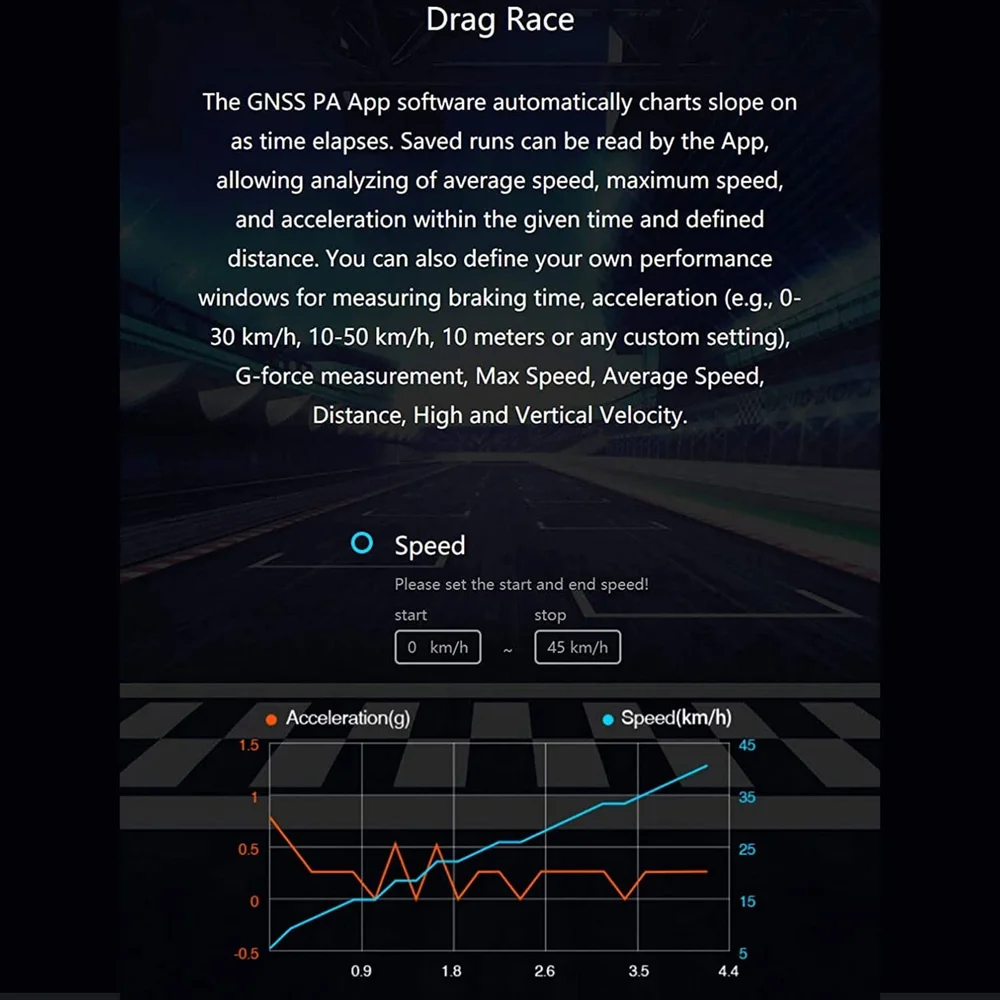

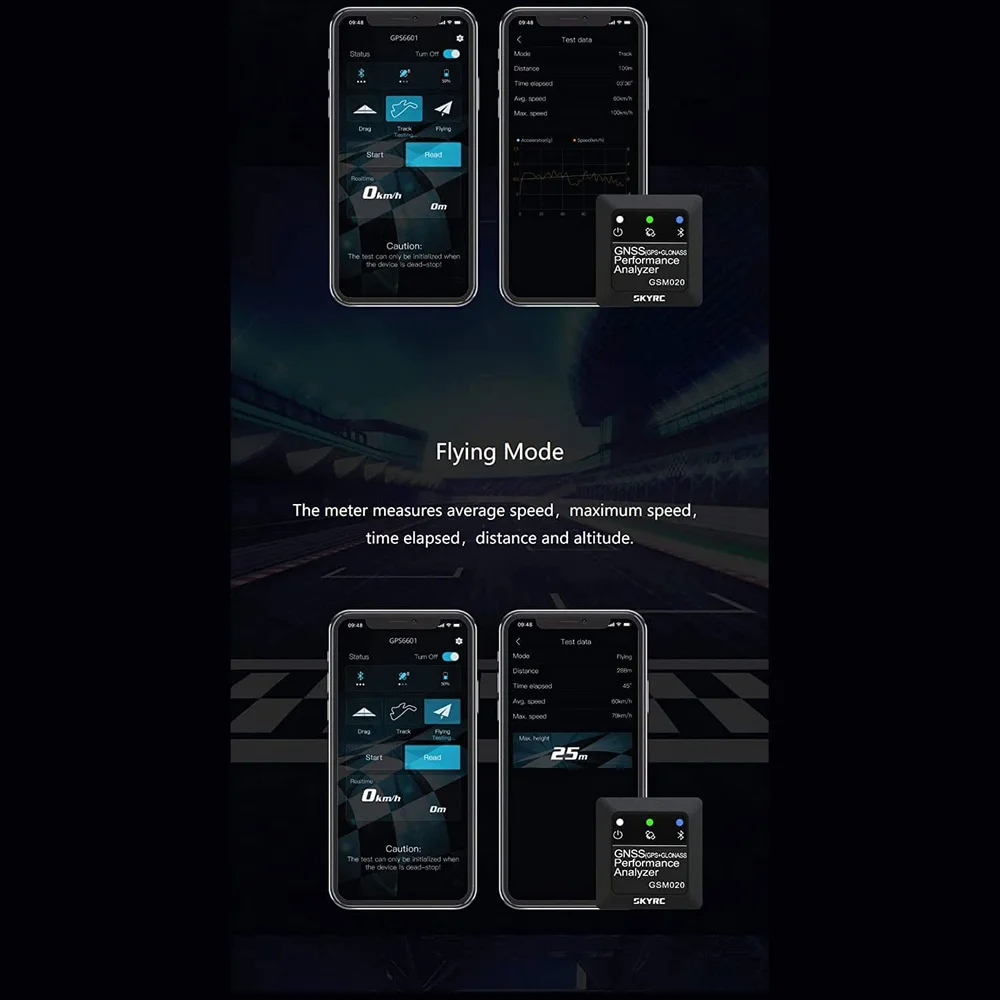

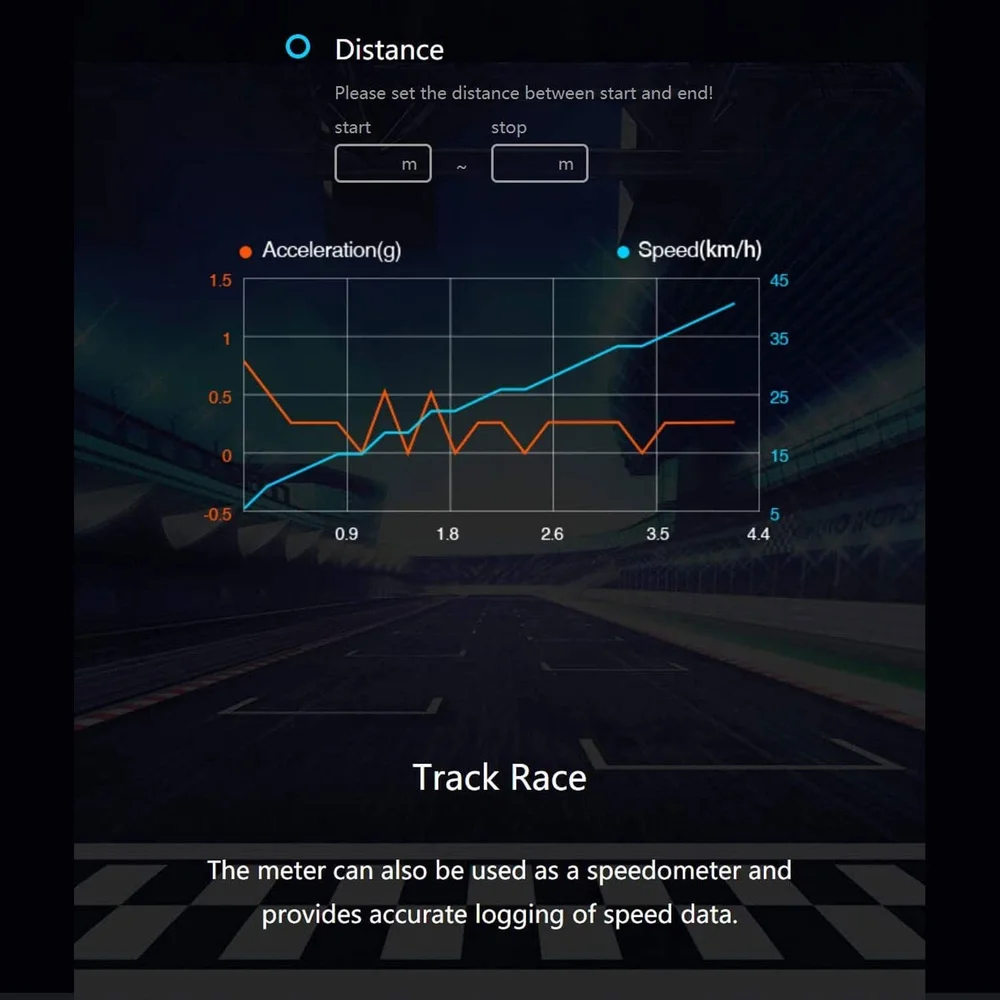

- Features three tailored analysis modes: Drag Race, Track Race, and Flying Mode for cars, planes, and rockets.
- Built-in 1MB memory stores run data, with metrics for max/average speed, acceleration, G-force, and vertical velocity.

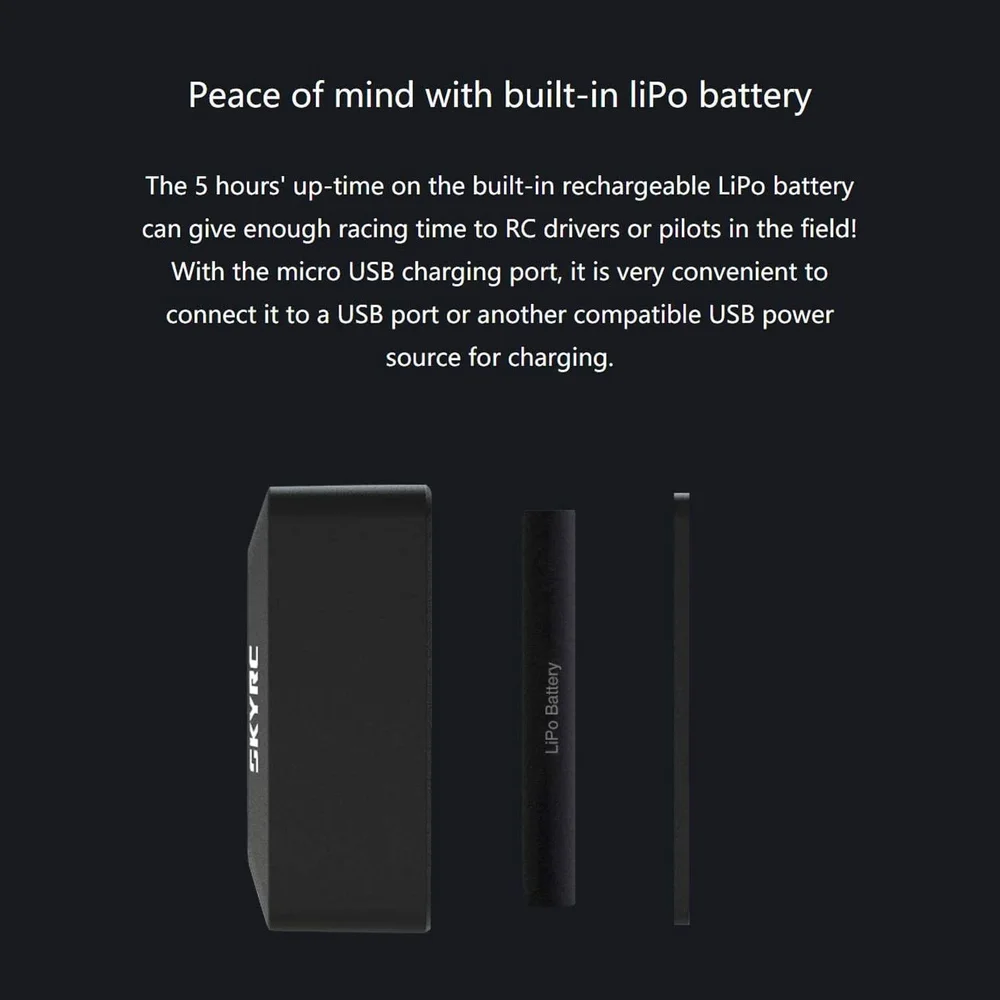

- Powered by a rechargeable 500mAh LiPo battery providing 4-5 hours of continuous field operation, charged via micro USB.
Out of stock
The SkyRC GSM020 GNSS Performance Analyzer is a dedicated telemetry module for RC hobbyists and competitive racers. It connects to GPS and GLONASS satellite constellations to capture high-frequency (10 Hz) positional and kinematic data, including real-time speed, acceleration, G-forces, distance, and vertical velocity. This data is essential for quantitatively evaluating vehicle performance, tuning modifications, and comparing run statistics.

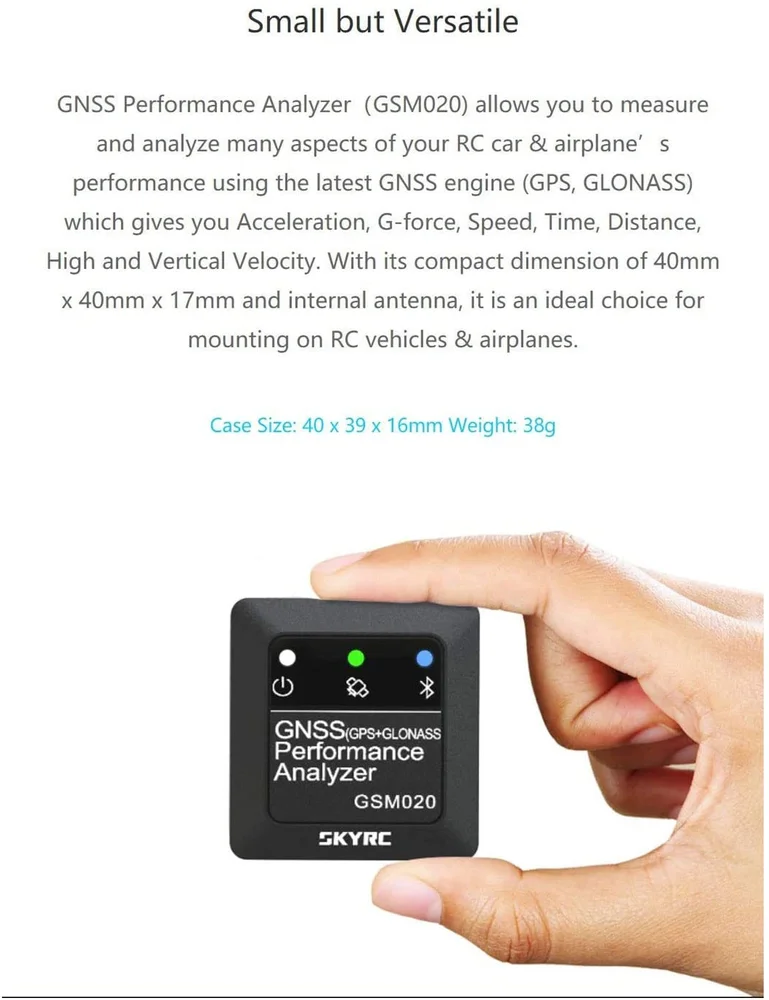

Engineered for field deployment, the module features a compact, low-profile form factor (40x39x16 mm) with an internal patch antenna, making it easy to mount discreetly on RC cars, planes, or drones. The integrated Bluetooth 4.0 radio enables on-the-fly data streaming and logging to a smartphone, where the companion app visualizes performance metrics and charts trends over time. With a built-in 500mAh LiPo battery offering several hours of runtime, it’s designed for extended practice sessions and race days.
Additional Information
| Weight | 0.038 kg |
|---|---|
| Dimensions | 4 × 3.9 × 1.6 cm |
