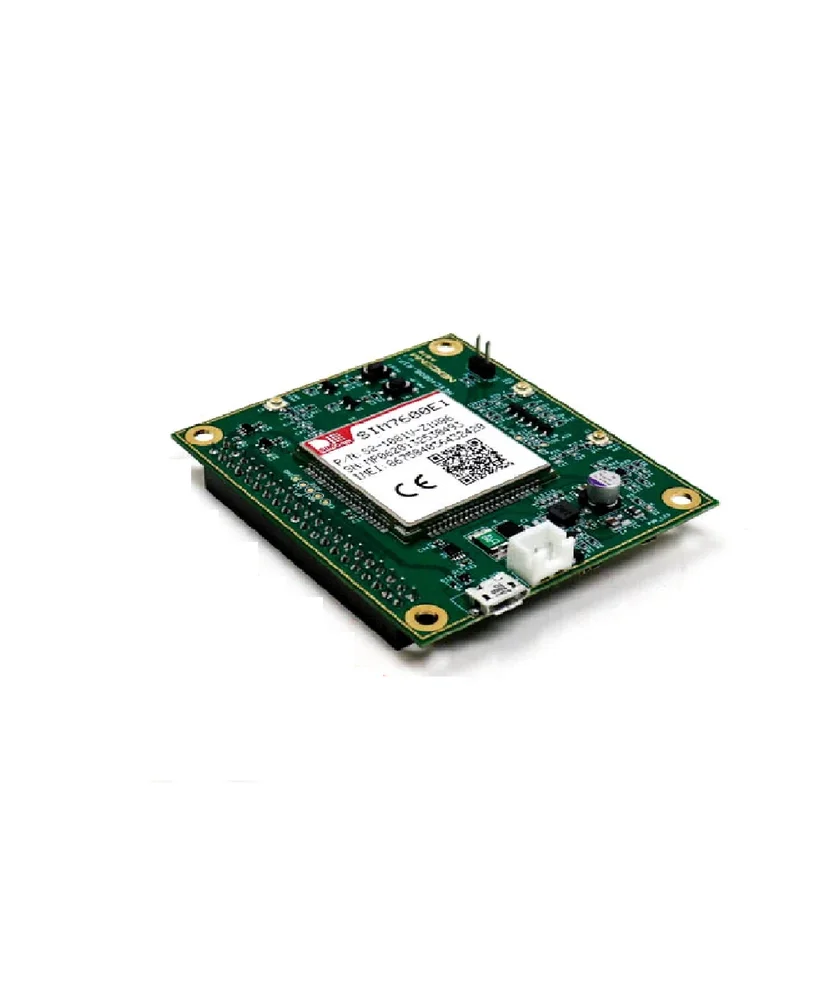

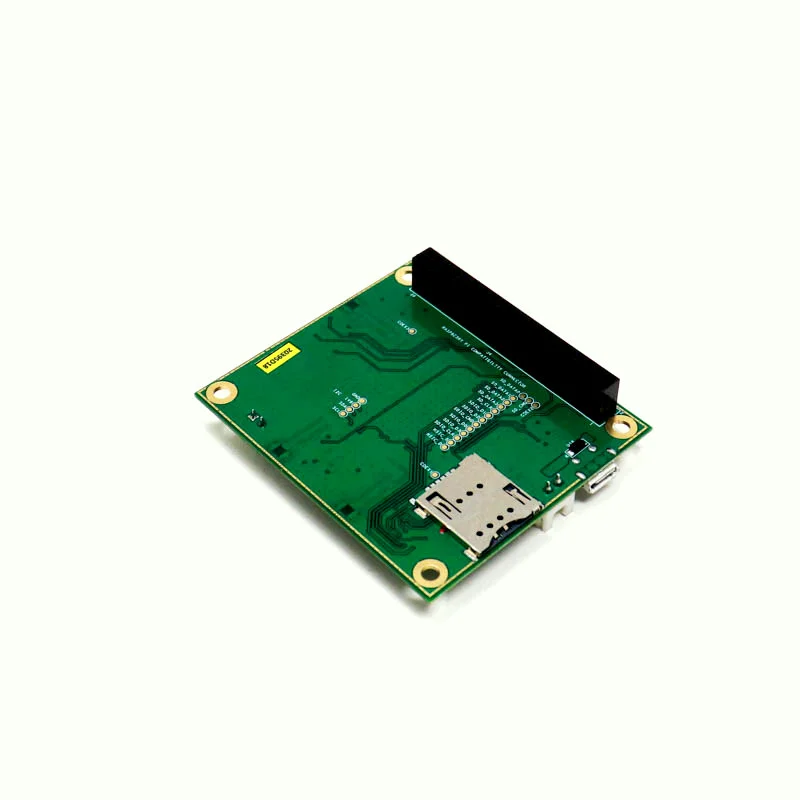

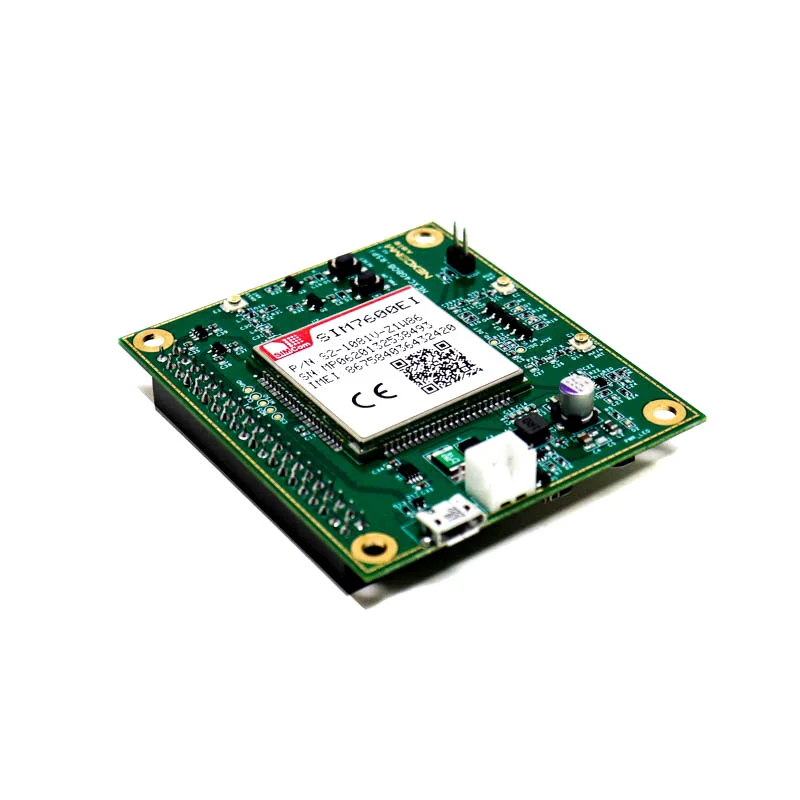

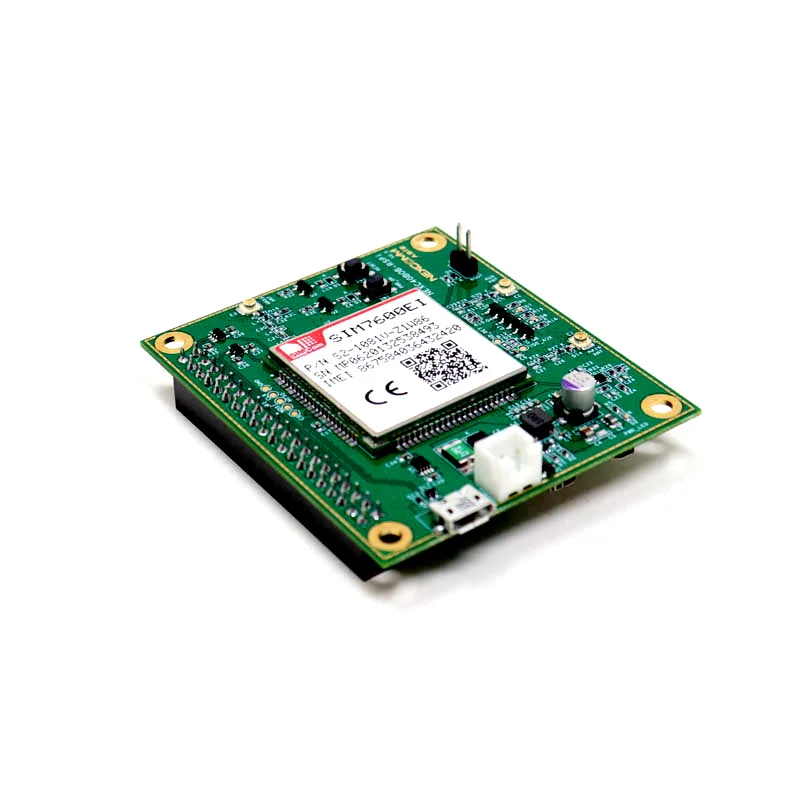

Nexcomm SIM7600EI 4G LTE CAT1 Modem GPS/GNSS IoT Board
The Nexcomm SIM7600EI is a multi-band LTE CAT1 cellular IoT module offering up to 10Mbps downlink speeds, integrated GPS/GNSS, and a rich set of interfaces (UART, USB, I2C, SPI). It is AT command controlled and compatible with Raspberry Pi and other embedded platforms for remote telemetry and asset tracking applications.
Features
- Multi-band LTE CAT1 modem supporting FDD B1/B3/B5/B8 and TDD B40/B41 for global coverage, with fallback to HSPA+/UMTS and GSM/GPRS/EDGE networks.
- Integrated GPS/GNSS receiver enables precise location tracking for IoT applications like fleet management and asset monitoring.
- Compact LCC form factor pin-compatible with SIM5360 and SIM7100 modules, allowing for scalable, future-proof hardware designs.
- Rich peripheral set includes UART, USB 2.0, SPI, I2C, and PCM interfaces for flexible sensor integration and system control.
- Extensive protocol stack support for TCP/IP, HTTP/HTTPS, FTP/FTPS, SSL/TLS, and MQTT (via AT commands) simplifies cloud connectivity.
Out of stock
The SIM7600EI module is a comprehensive cellular IoT solution built around a multi-band LTE CAT1 transceiver, delivering reliable, medium-speed data connectivity for remote monitoring and telemetry applications. Its architecture supports seamless fallback to 3G and 2G networks, ensuring operational continuity in areas with varying coverage. The integrated GNSS engine provides concurrent positioning data, making it ideal for mobile or fixed-location tracking scenarios.
Designed for embedded integration, the module features a low-profile LCC package and a comprehensive set of hardware interfaces, including high-speed USB for data and firmware updates, multiple serial ports for sensor networks, and digital audio paths. Power management is optimized for IoT deployments, supporting various low-power modes controlled via AT commands to conserve energy in battery-operated nodes.
Additional Information
| Weight | 0.018 kg |
|---|---|
| Dimensions | 6.6 × 4 cm |
