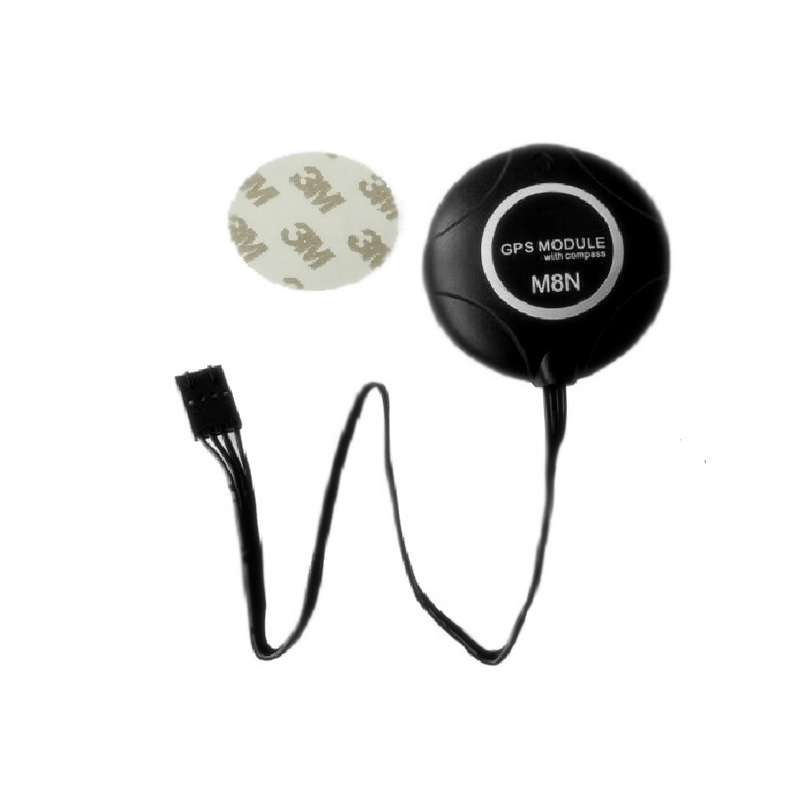

NEO-M8N GPS & Compass Module for DJI Naza M V1/V2 FC
This high-precision NEO-M8N GPS and compass module, powered by a u-blox M8 engine, offers advanced navigation capabilities for drones. Engineered for direct compatibility with DJI Naza M V1 and V2 flight controllers, it delivers enhanced positional accuracy and robust signal tracking for improved flight stability.
Features
- High-precision u-blox NEO-M8N GPS engine with 72-channel M8 receiver.
- Integrated compass module optimized for DJI Naza M V1 & V2 flight controllers.
- Achieves ultimate positional accuracy of 0.6 to 0.9 meters.
- Features 32-bit processor for superior performance over 8-bit systems.
- Supports multiple GNSS constellations: GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1.
Out of stock
The NEO-M8N GPS and Compass module represents a significant upgrade for DJI Naza M V1 and V2 flight controller systems, bringing modern navigation technology to a robust platform. Utilizing a u-blox M8 series engine, this module boasts a 72-channel receiver capable of tracking multiple global navigation satellite systems simultaneously, including GPS/QZSS L1 C/A, GLONASS L10F, and BeiDou B1. This multi-GNSS capability ensures higher signal availability and integrity, resulting in improved positional accuracy, typically achieving 0.6 to 0.9 meters, which is a considerable enhancement over previous generation GPS units.

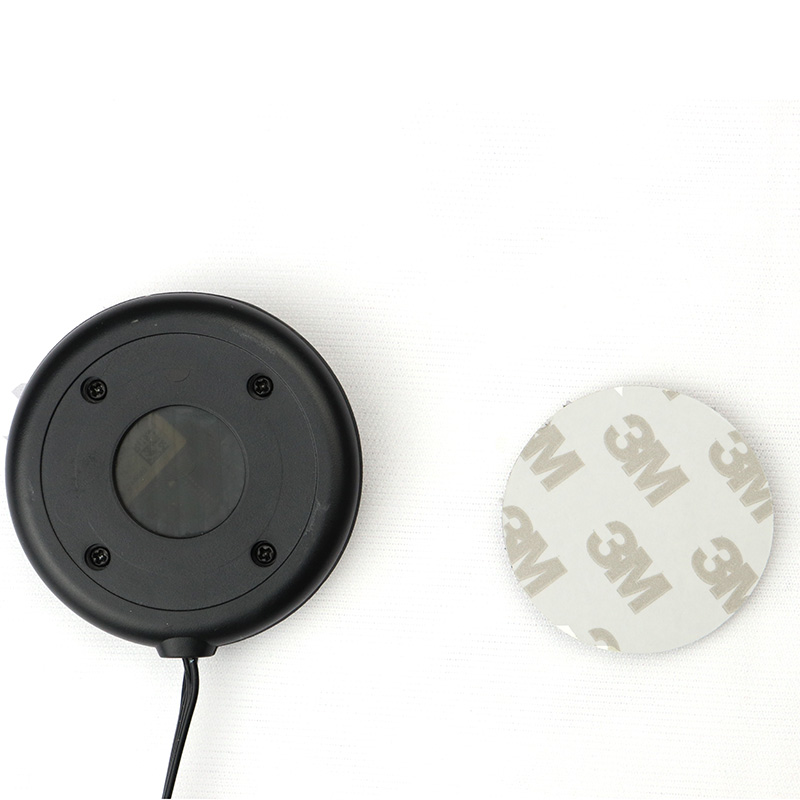

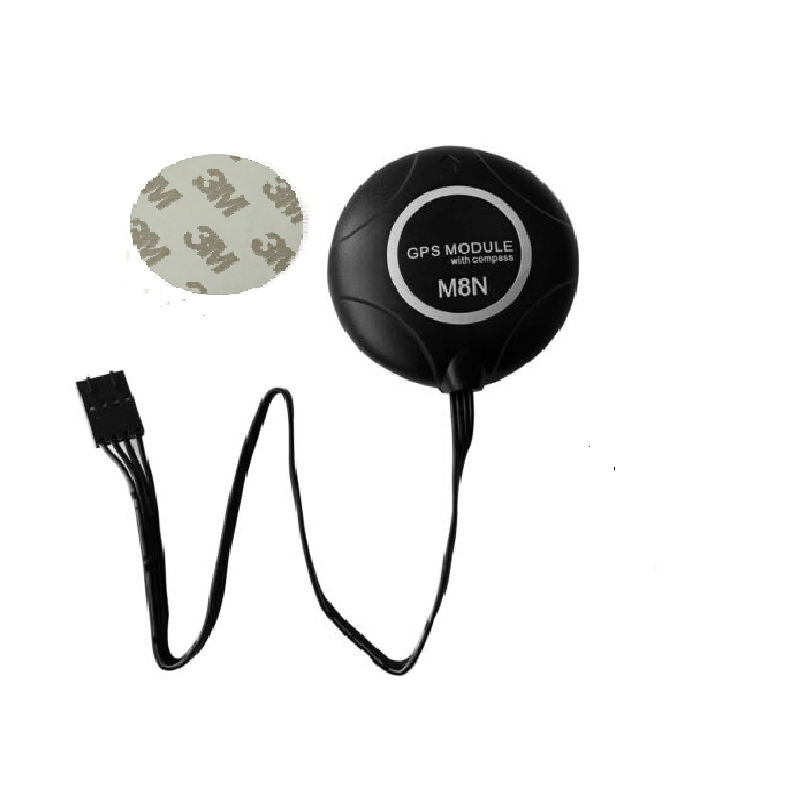

Designed with a powerful 32-bit processor, this module seamlessly integrates with DJI Naza M V1 and V2 flight controllers, outperforming older 8-bit solutions in data processing and responsiveness. Its construction includes features like active CW detection and removal for anti-jamming, an onboard SAW bandpass filter to minimize signal interference, and a metal foil label on the bottom to further reduce electronic noise. The module comes with a soft silicone gel cable for flexible installation, pre-wired with standard color coding (black=GND, white=TX, yellow=RX, red=5V), operating within a 3.3-7.5V input voltage range. Proper compass calibration upon initial setup is crucial for optimal performance, ensuring accurate heading data for your Naza-equipped aircraft.
Additional Information
| Dimensions | 5.4 × 5.4 × 1.52 cm |
|---|
