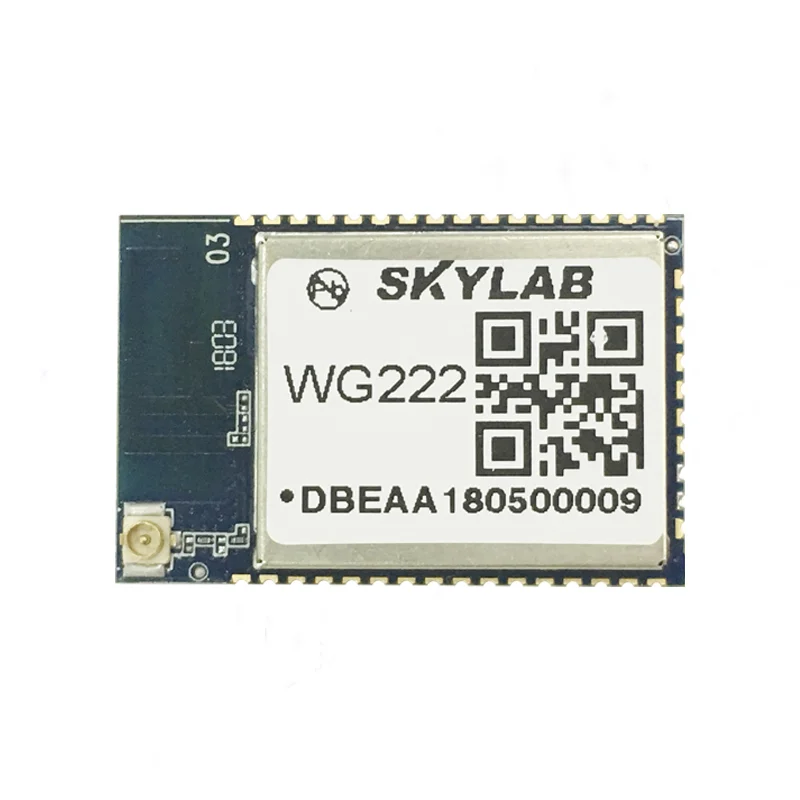

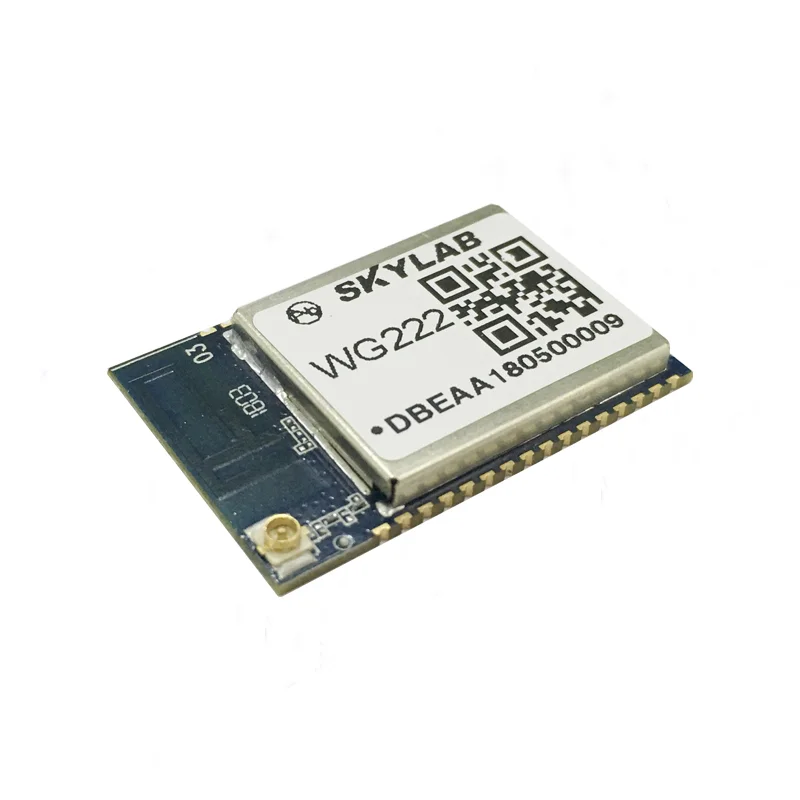

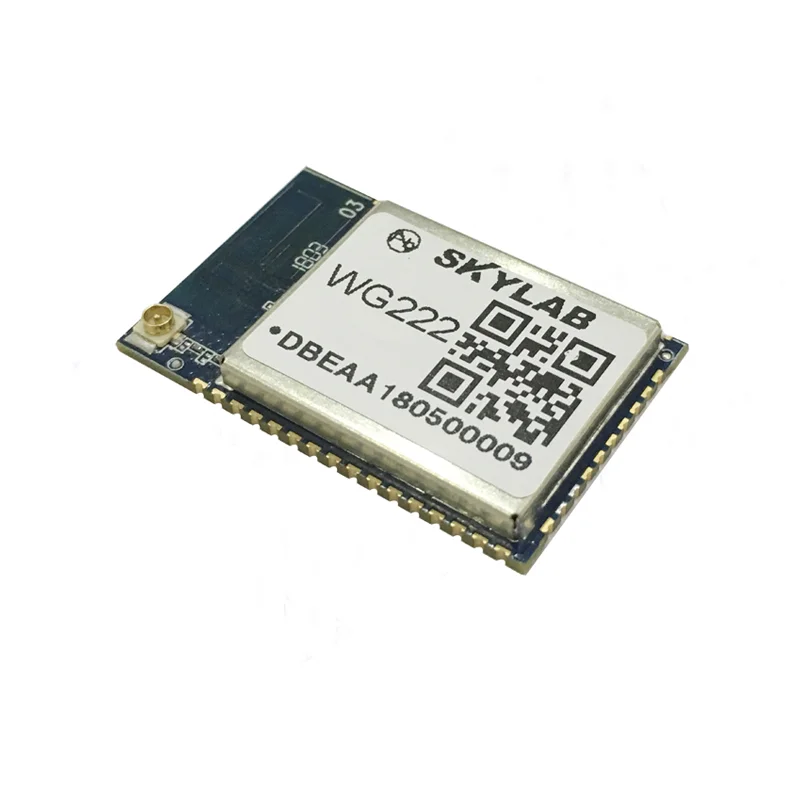

Skylab WG222 Dual-band Serial Port Wi-Fi Bluetooth Combo Module
The Skylab WG222 is a high-performance dual-band Wi-Fi and Bluetooth 4.2 BLE combo module, powered by an ARM Cortex-M4F processor for IoT, smart home, and wearable device development.
Features
- Dual-band 2.4GHz & 5GHz 802.11 a/b/g/n Wi-Fi with up to +21dBm TX power for robust wireless connectivity.
- Bluetooth 4.2 BLE support with configurable TX power from -20dBm to +10dBm for short-range device pairing.
- ARM Cortex-M4F MCU with FPU, clockable up to 192MHz, providing ample processing power for embedded applications.
- Rich peripheral set including UART, SPI, I2C, I2S, 4x 12-bit ADC channels, and PWM for versatile sensor and actuator integration.
- Compact 31.3mm x 20.3mm footprint with 3.3V operation, designed for space-constrained, low-power IoT deployments.
Out of stock
The Skylab WG222 WiFi Bluetooth Module integrates a powerful ARM Cortex-M4F microcontroller with dual-band wireless radios in a compact, surface-mount package. It provides a complete wireless subsystem for developers building connected products requiring both local Wi-Fi networking and Bluetooth Low Energy for device configuration or peripheral connectivity. The module supports all standard 802.11 a/b/g/n operations in both 2.4GHz and 5GHz bands, with transmit power up to +21dBm for extended range.
Engineered for low-power operation, the WG222 is ideal for battery-powered IoT endpoints, wearables, and smart home sensors. Its integrated Bluetooth 4.2 stack enables beaconing, data transfer, and peripheral emulation alongside Wi-Fi connectivity. The module’s extensive GPIO and peripheral interfaces, including high-resolution ADCs and I2S for audio, allow it to serve as the central processing and communication hub in complex embedded systems, simplifying hardware design and reducing time-to-market.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 3.13 × 2.03 × 0.32 cm |
