SIYI HM30 Full HD Digital Image Transmission FPV System
SIYI HM30 Full HD Digital Image Transmission FPV System - Image 2
SIYI HM30 Full HD Digital Image Transmission FPV System - Image 3
SIYI HM30 Full HD Digital Image Transmission FPV System - Image 4
SIYI HM30 Full HD Digital Image Transmission FPV System - Image 5
SKU: DRFC-2140
📋 GST Invoice Available

SIYI HM30 Full HD Digital Image Transmission FPV System

₹36,959.00 (Inclusive of all taxes)
Out of Stock

The SIYI HM30 is a professional-grade digital HD FPV system delivering up to 30km of long-range, low-latency video transmission. It integrates a 1080p/720p camera, compact air unit, and portable ground receiver, designed for advanced drone pilots, aerial cinematography, and long-range telemetry applications.

Features

  • Full HD Digital Transmission with up to 30km maximum range in ideal conditions
  • Integrated 3MP FPV Camera with 105° FOV and H.265 encoding for efficient video
  • Portable Ground Unit with 0.96″ OLED screen, IP53 rating, and PD fast charging
  • Wide Voltage Input (11-16.8V, expandable to 4S-18S) for versatile drone integration
  • Comprehensive I/O including S.Bus, PWM, UART datalink, and Ethernet for telemetry

Out of stock

Description

The SIYI HM30 system employs robust digital transmission technology to provide a stable, high-definition video link critical for FPV flight and aerial observation. Its air unit is engineered for minimal size and weight, featuring active cooling and a broad 11-16.8V input range that supports direct connection to 3S-4S LiPo batteries and can be expanded for high-voltage industrial platforms.

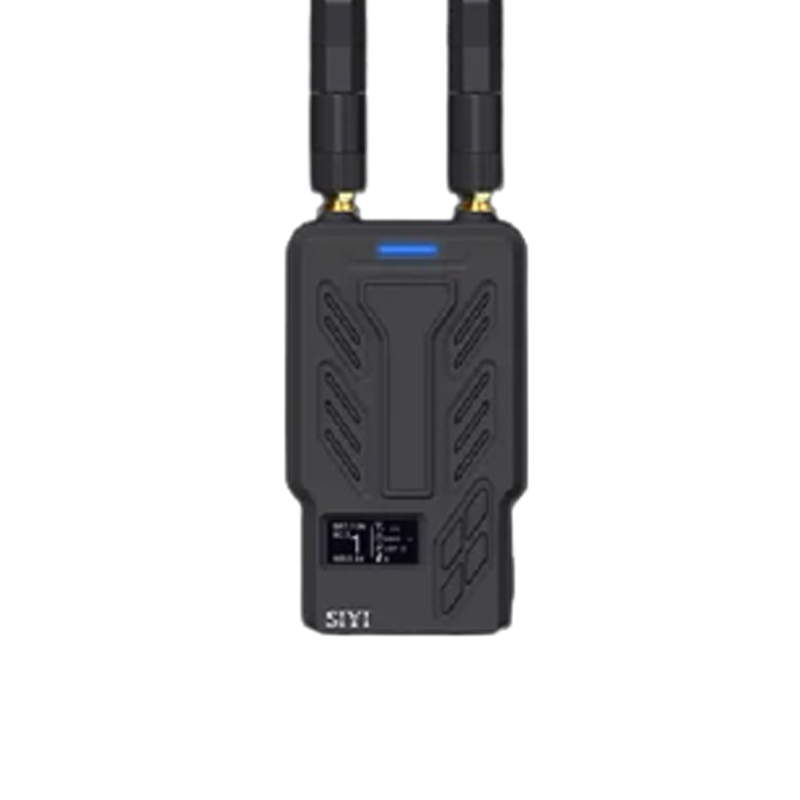

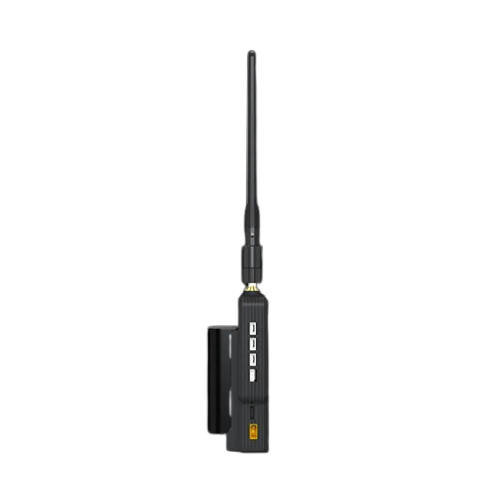

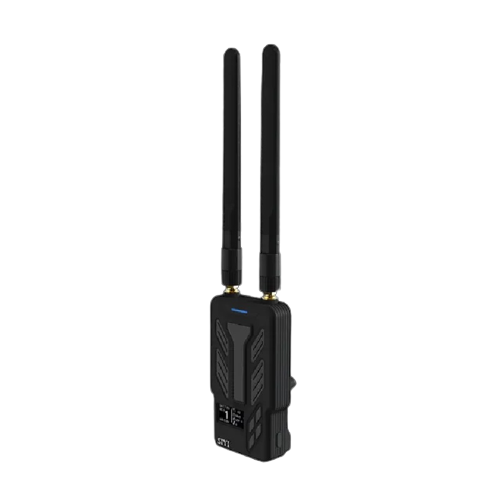

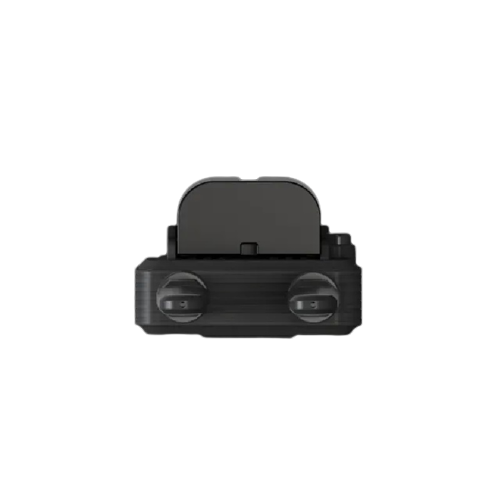

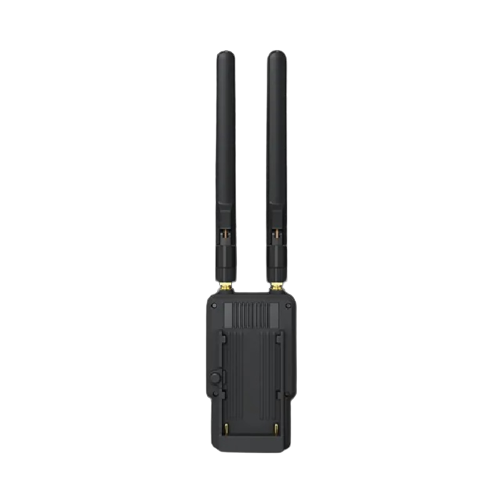

The ground unit serves as a compact command center, combining video reception, telemetry data display, and RC signal relay. Its IP53-rated enclosure and support for quick-release NP-F series batteries ensure reliability in field operations. The system’s low-latency performance and integrated datalink make it suitable for demanding applications beyond recreational FPV, including mapping, inspection, and autonomous drone missions.

Key Features

  • Long-Range HD Video: Digital transmission provides clear 1080p/720p video with a theoretical maximum range of 30 kilometers under optimal, unobstructed conditions.
  • Integrated Telemetry Datalink: Built-in UART interface supports bidirectional MAVLink telemetry for integration with PX4 and ArduPilot flight controllers.
  • Multi-Protocol Control Relay: Air unit outputs 16 channels of S.Bus and 5 channels of PWM, allowing direct control of gimbals, servos, or flight modes.
  • Portable & Field-Ready Ground Station: Compact design with OLED status display, multiple antenna options (5 dBi omni & 11 dBi long-range), and IP53 weather resistance.
  • Flexible Power Architecture: Air unit accepts 11-16.8V (3S-4S) natively, with external BEC support for up to 18S (75.6V) systems for heavy-lift drones.
  • Comprehensive Connectivity: Includes Ethernet port for network integration, USB-C for video output/firmware updates, and dedicated ports for RC input and power distribution.

Applications

  • Long-range FPV exploration and mapping drones requiring stable HD video and telemetry links.
  • Aerial cinematography platforms where low-latency, high-quality live feed is crucial for camera operators.
  • Industrial inspection and surveillance UAVs integrated with PX4 or ArduPilot for automated missions.
  • Heavy-lift and agricultural drones needing reliable control relay (S.Bus/PWM) and video transmission over several kilometers.
  • Research and development platforms requiring bidirectional MAVLink telemetry and Ethernet connectivity for ground station networks.

Technical Specifications

Model NameHM30
Max Transmission Range30 km (unobstructed, ideal conditions)
Ground Unit Display0.96-inch OLED Screen
Ground Unit Dimensions (excl. antennas)109 x 61 x 28 mm
Ground Unit Weight (excl. battery)132 g
Ground Unit Power InputXT30, supports PD 30W Fast Charging
Ground Unit Compatible BatteriesNP-F550 / F750 / F770 / F950 / F970 series
Ground Unit Waterproof RatingIP53
Air Unit Dimensions (incl. fan, excl. antenna)70 x 55 x 16 mm
Air Unit Weight (excl. antenna)74 g
Air Unit Voltage Input11-16.8 V (3S-4S), expandable to 4S-18S with external BEC
Air Unit Control Output16 channels S.Bus, 5 channels PWM
FPV Camera Sensor1/2.9" CMOS, 3 MP Effective Resolution
FPV Camera Lens3.2 mm, F/2.8, 105° FOV
FPV Camera Video EncodingH.265, 1080p30 @ 2.3 Mbps or 720p30 @ 1.57 Mbps
FPV Camera Dimensions42 x 42 x 25 mm
FPV Camera Weight23 g
Operating Temperature Range-10°C to 50°C (Ground & Air), -10°C to 55°C (Camera)
Shipping Weight1.011 kg
Shipping Dimensions21 x 15 x 7 cm

Frequently Asked Questions

What is the real-world video range of the SIYI HM30 system?

The specified 30km range is a theoretical maximum achieved under ideal, unobstructed conditions with clear line-of-sight and no RF interference. Practical operational range will be less, depending on antenna selection, output power settings, local regulations, and environmental factors like terrain and weather.

Can I use the HM30 Air Unit with a 6S or higher voltage battery?

Yes, but not directly. The air unit's native input range is 11-16.8V (3S-4S). For use with 6S (22.2V) or higher voltages up to 18S, you must use an external step-down BEC (voltage regulator) that provides a stable output within the air unit's specified input range to avoid damage.

How do I integrate the HM30 system with my ArduPilot or PX4 flight controller?

Use the included telemetry cable to connect the UART datalink port on the HM30 ground unit to a telemetry port on your flight controller. Configure the corresponding serial port in your flight controller firmware (e.g., Mission Planner, QGroundControl) for MAVLink telemetry to enable bidirectional data transmission like GPS position, battery voltage, and flight mode.

What video outputs are available from the HM30 Ground Unit?

The primary video output is via the USB Type-C port, which can stream video to a compatible display or capture device. The unit also has an Ethernet port, which can be used for network streaming or integration when configured via the provided RJ45 cable.

Does the included FPV camera support manual camera control settings?

The provided specifications indicate the camera offers configurable video parameters. Settings such as resolution (1080p/720p), bitrate, and potentially other image parameters are typically adjustable via the system's OSD menu or a dedicated configuration software provided by SIYI, allowing optimization for different lighting conditions and bandwidth requirements.

Package Includes

  • 1 x SIYI HM30 Ground Unit
  • 1 x HM30 Air Unit
  • 1 x R1M Recording FPV Camera
  • 2 x Standard Omni Antenna (5 dBi)
  • 2 x Long Range Antenna (11 dBi)
  • 1 x Ground Unit XT30 Male Power Cable
  • 1 x Type-C to Type-C Charging Cable
  • 1 x Type-C to USB-A Converter
  • 1 x Type-C to Micro-USB Cable
  • 1 x GH1.25 4Pin to S.Bus Connector Cable
  • 1 x GH1.25 4Pin to RJ45 (Ethernet) Connector Cable
  • 1 x PX4 / ArduPilot Flight Controller Telemetry Cable
  • 1 x Air Unit S.Bus Cable
  • 1 x Air Unit PWM Cable
  • 1 x Ethernet Cable

Additional Information

Weight 1.011 kg
Dimensions 15 × 21 × 7 cm
