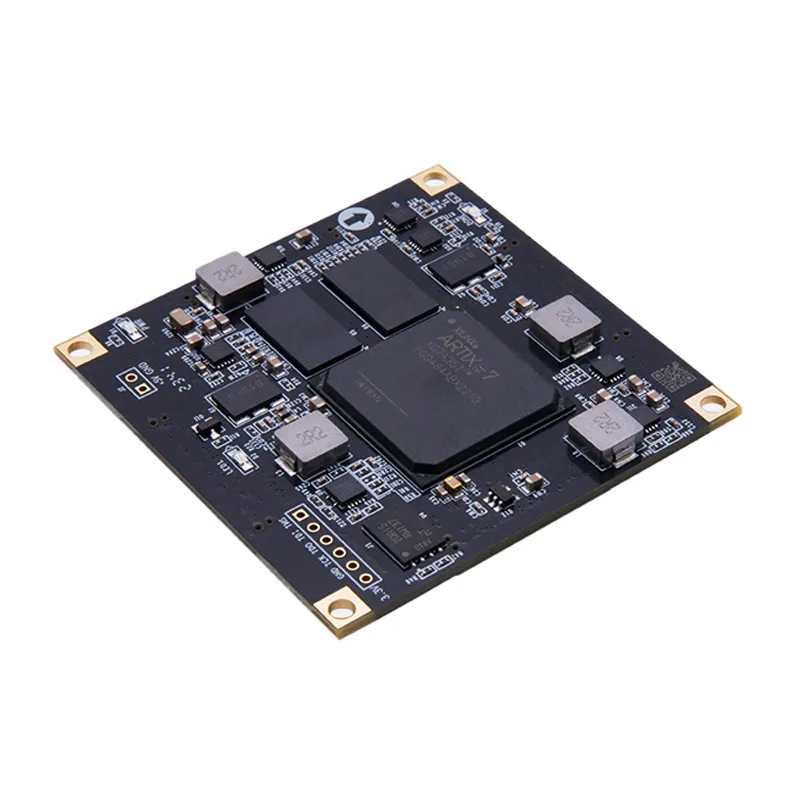

Alinx AC7A035 FPGA SoM – AMD Artix-7 XC7A35T

Description

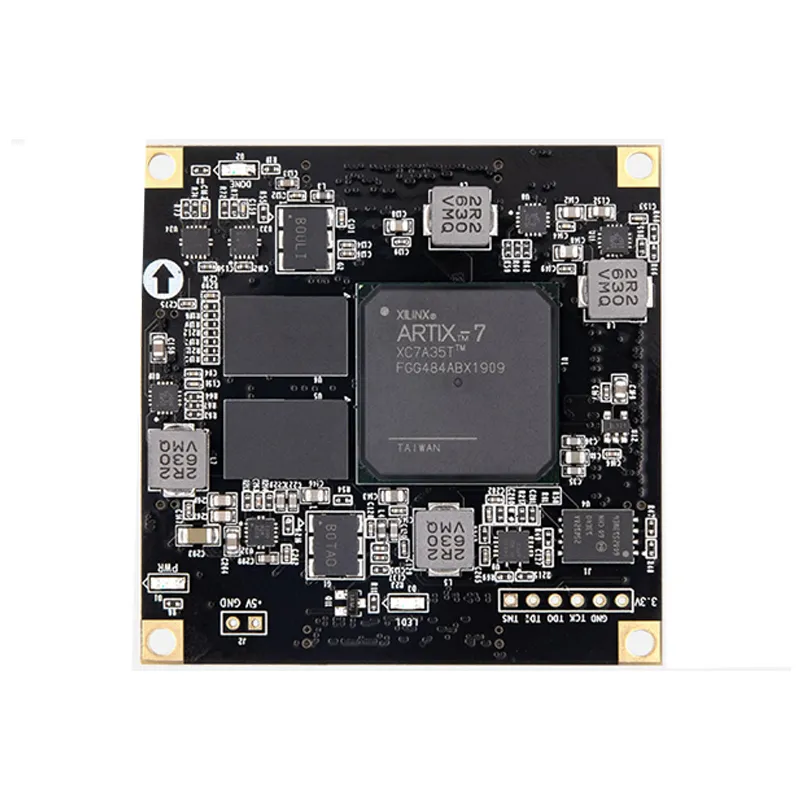

The AC7A035 FPGA SoM is a compact and high-performance embedded processing solution built around the AMD Artix-7 XC7A35T FPGA. Designed for power-efficient and cost-optimized applications, it combines 1GB DDR3 SDRAM and 16MB QSPI Flash with advanced transceivers for high-speed data processing.

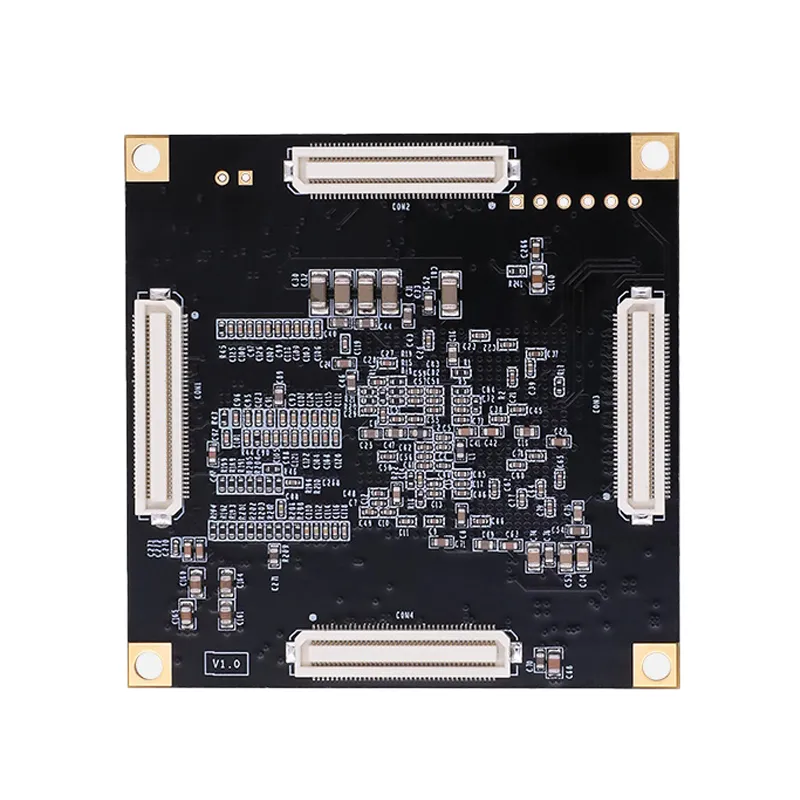

The pluggable form factor with 4 Panasonic board-to-board connectors makes integration simple and reliable. Supporting PCIe Gen2, gigabit transceivers up to 6.6Gbps, and 161 user I/Os, this module delivers excellent flexibility for industrial, communication, and embedded system applications. With a 60×60 mm footprint, wide temperature range, and 5V single supply, it ensures robust performance in demanding environments.
