SICK NANS3-CAAZ30ZA1 Safety Laser Scanner, 275° Beam Angle, 128 Field Pairs, Type 3, SIL2, IP65, Sensing Range: 40m

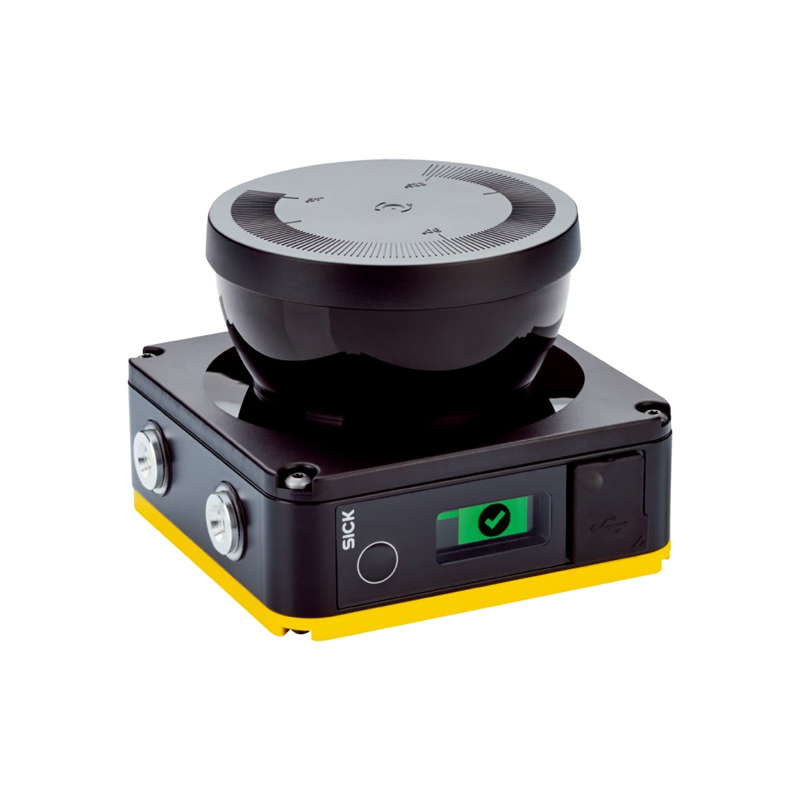

SICK NANS3-CAAZ30ZA1 Safety Laser Scanner, 275° Beam Angle, 128 Field Pairs, Type 3, SIL2, IP65, Sensing Range: 40m - Image 2
SKU: SENS-2735
📋 GST Invoice Available

SICK NANS3-CAAZ30ZA1 Safety Laser Scanner, 275° Beam Angle, 128 Field Pairs, Type 3, SIL2, IP65, Sensing Range: 40m

₹531,009.00 (Inclusive of all taxes)
Out of Stock

The SICK NANS3-CAAZ30ZA1 is a Type 3, SIL2-rated safety laser scanner designed for industrial automation and mobile robotics. Featuring a 275° scanning angle and a 40m protective range, it provides reliable area monitoring and intrusion detection for AGVs, AMRs, and machine guarding applications.

Features

  • 275° wide scanning angle for extensive area coverage and monitoring.
  • Up to 40-meter sensing range for establishing large protective safety zones.
  • Supports up to 128 configurable field pairs for dynamic, multi-zone safety configuration.
  • Certified to Type 3 safety level and SIL2 performance level for reliable personnel protection.
  • IP65-rated housing ensures durability in dusty and wet industrial environments.

Out of stock

Description

The SICK NANS3-CAAZ30ZA1 nanoScan3 series safety laser scanner utilizes advanced safe HDDM (High Definition Distance Measurement) scanning technology. This principle provides high-resolution detection and reliable performance even in challenging conditions with dust, ambient light interference, or vibrations, ensuring consistent safety function integrity.

Designed for integration into modern automation systems, it supports both stationary machine guarding and mobile navigation for Automated Guided Vehicles (AGVs) and Autonomous Mobile Robots (AMRs). The compact, rugged IP65 enclosure is built for long-term operation in harsh industrial settings, offering both safety protection and localization capabilities in a single unit.

Key Features

  • Advanced safe HDDM scanning technology for reliable detection in dusty or high-ambient-light conditions.
  • Configurable protective field range starting from 3 meters, extendable up to 40 meters.
  • Flexible resolution settings (30/40/50/60/70/150 mm) to tailor detection sensitivity to the application.
  • Integrated USB 2.0 micro-USB interface for straightforward configuration, diagnostics, and field set programming.
  • Compact form factor (11.7 cm length) designed for easy integration into machinery and mobile robot platforms.
  • 2-in-1 functionality providing both safety zone monitoring and precise localization data for navigation.
  • Ruggedized construction with an IP65 rating for protection against dust ingress and water jets.

Applications

  • Perimeter guarding and access protection for industrial machinery and robotic workcells.
  • Safety zone monitoring and intrusion detection for Automated Guided Vehicles (AGVs) and Autonomous Mobile Robots (AMRs).
  • Hazardous area monitoring in manufacturing, logistics, and automotive assembly lines.
  • Dynamic safety field configuration for collaborative robot (cobot) applications and flexible automation.
  • Navigation and localization aid for mobile platforms in smart factory and warehouse environments.

Technical Specifications

Model NumberNANS3-CAAZ30ZA1
Scanning Angle275°
Sensing RangeUp to 40 m
Protective Field Range3 m
Field Sets128 Configurable Field Pairs
Safety LevelType 3, SIL2
Protection RatingIP65
Resolution30/40/50/60/70/150 mm (Configurable)
Configuration InterfaceUSB 2.0, micro USB
Length11.7 cm
Height1.1 cm
Weight0.67 kg

Frequently Asked Questions

What is the primary safety certification of the SICK NANS3-CAAZ30ZA1 scanner?

The NANS3-CAAZ30ZA1 is certified to Type 3 safety level and achieves a Safety Integrity Level (SIL) 2 according to IEC 62061 / ISO 13849-1. This certification validates its performance for personnel protection applications in industrial automation, ensuring reliable detection and failure tolerance.

How many safety zones can I configure with this laser scanner?

This scanner supports the configuration of up to 128 field pairs, allowing for highly flexible and dynamic safety zoning. You can define multiple warning and protective fields with different shapes and resolutions to suit complex layouts for machinery, AGV pathways, or collaborative workspaces.

What is the configuration interface for the NANS3 scanner?

Configuration and diagnostics are performed via a USB 2.0 micro-USB interface. Using SICK's proprietary software tools, you can connect directly to the scanner to set up field sets, adjust resolution, define monitoring cases, and perform operational diagnostics.

Is this scanner suitable for outdoor or harsh indoor environments?

Yes, with its IP65 rating, the scanner is protected against dust ingress and low-pressure water jets from any direction. This makes it suitable for harsh industrial environments like manufacturing floors, warehouses, and logistics centers, though it is not intended for prolonged submersion or high-pressure washing.

Can this scanner be used for navigation as well as safety?

Absolutely. The NANS3 series offers 2-in-1 functionality, providing both safety-related protective field monitoring and non-safety-related localization data. This dual capability is ideal for mobile robots (AGVs/AMRs), where it can simultaneously ensure safe operation and provide precise position feedback for navigation.

Package Includes

  • 1 x SICK NANS3-CAAZ30ZA1 Safety Laser Scanner

Additional Information

Weight 0.67 kg
Dimensions 11.7 × 1.1 cm
