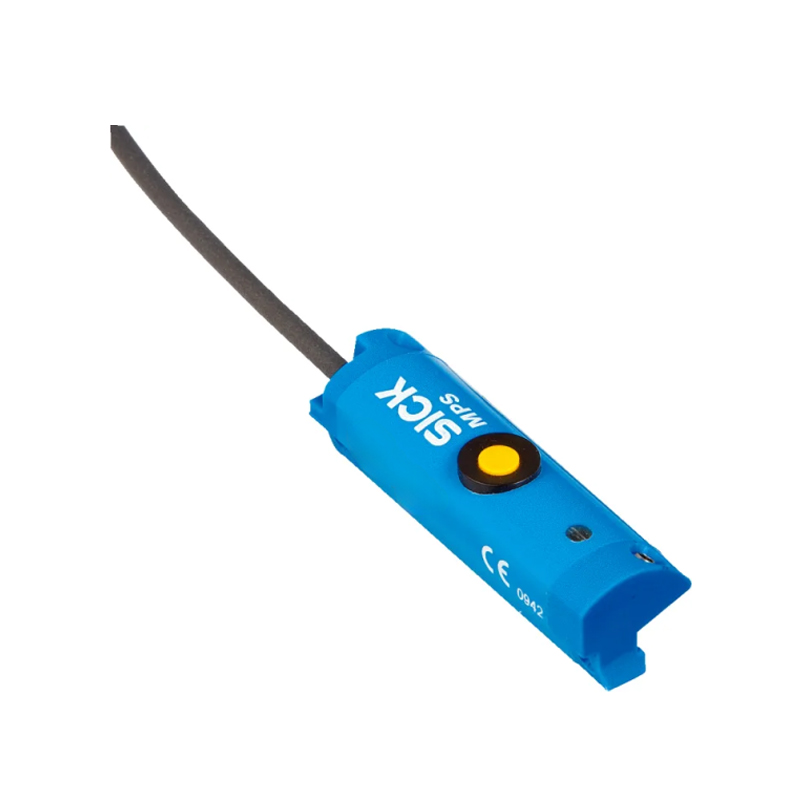

SICK MPS-256TSTU0 Cylinder Position Sensor, T-Type, Analogue Output, 2m 4-Wire Cable, 15-30VDC, IP67, 256mm Range
The SICK MPS-256TSTU0 is a high-precision, IP67-rated linear position sensor designed for T-slot mounting on pneumatic cylinders. It provides reliable 0-10V or 4-20mA analog position feedback over a 256mm stroke, operating from a 15-30VDC supply for seamless integration into industrial PLCs and motion control systems.
Features
- 256mm linear measurement range with high-precision analog output (0-10V / 4-20mA).
- Rugged IP67-rated housing for reliable operation in harsh industrial environments.
- Designed for direct T-slot mounting on standard pneumatic cylinders.
- Contactless magnetic sensing principle ensures long-term reliability and wear-free operation.
- Integrated 2-meter, 4-wire cable with M8 connector for simplified installation.
Out of stock
The SICK MPS-256TSTU0 is a magnetostrictive linear position sensor engineered for precise, continuous feedback of piston rod position in pneumatic and hydraulic cylinders. Its contactless sensing technology translates the position of an internal magnetic ring into a proportional analog voltage or current signal, providing accurate real-time data for closed-loop control systems.
Housed in a robust, anodized aluminum extrusion with an IP67 ingress protection rating, the sensor is built to withstand dust, moisture, and vibration common in factory automation, packaging machinery, and material handling applications. The integrated 2-meter cable with a 4-pin M8 connector ensures a secure, sealed electrical connection, simplifying field wiring and maintenance.
Additional Information
| Weight | 0.136 kg |
|---|---|
| Dimensions | 30 × 1.42 cm |
