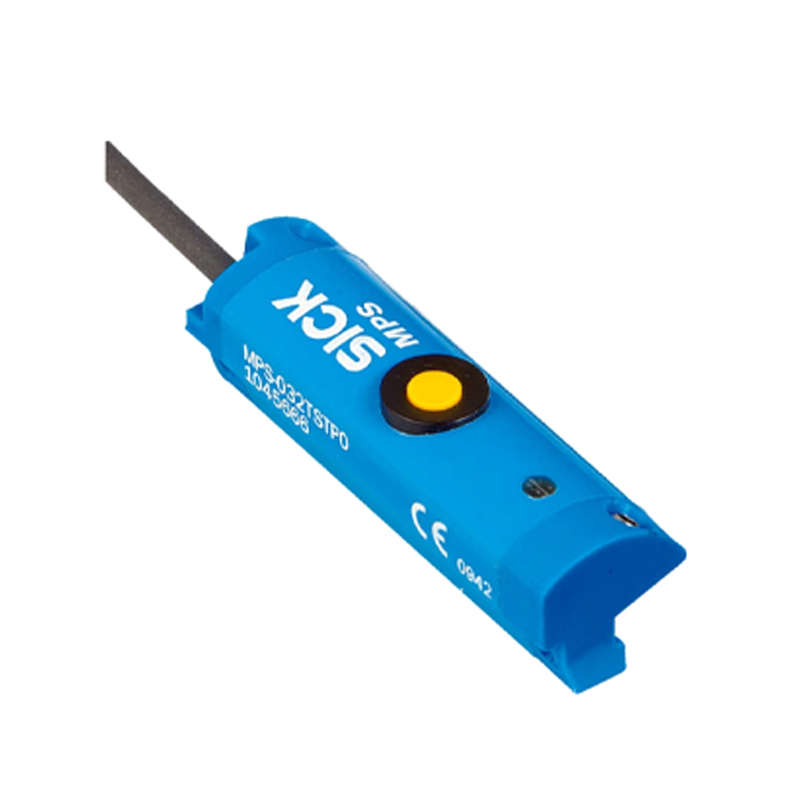

SICK MPS-032TSTP0 Cylinder Position Sensor, T-Type, Analogue, Cable with 4 Pin M8, 15-30VDC, IP67, Range: 32mm
The SICK MPS-032TSTP0 is a high-precision magnetic linear position sensor designed for T-slot mounting on pneumatic cylinders. It provides a 0–10V analog output signal for continuous position feedback, operating from a 15-30VDC supply and featuring a robust IP67-rated housing for reliable performance in industrial automation environments.
Features
- Magnetic sensing principle for precise linear position detection up to 32 mm.
- Provides a 0–10V analog output signal for real-time, continuous position monitoring.
- Designed for direct T-slot mounting on compatible pneumatic cylinders.
- Rugged IP67-rated housing ensures protection against dust and temporary water immersion.
- Wide 15-30VDC operating voltage range for flexible integration into industrial control systems.
Out of stock
The SICK MPS-032TSTP0 is a specialized linear displacement sensor engineered for accurate position feedback on pneumatic actuators. Utilizing a non-contact magnetic sensing principle, it detects the position of a magnet integrated into a cylinder piston, translating it into a proportional 0–10V analog signal. This provides a continuous, high-resolution readout suitable for precise motion control and monitoring tasks.
Built for demanding industrial settings, the sensor’s compact housing is rated IP67, offering robust protection against particulate ingress and temporary water submersion. Its 4-wire configuration with a fixed 4-pin M8 connector simplifies electrical integration, while the T-slot mechanical design allows for secure and straightforward mounting on a wide range of profile, tie-rod, and round body cylinders, ensuring versatile application across automation platforms.
Additional Information
| Weight | 0.04 kg |
|---|---|
| Dimensions | 4.5 × 1.36 cm |
