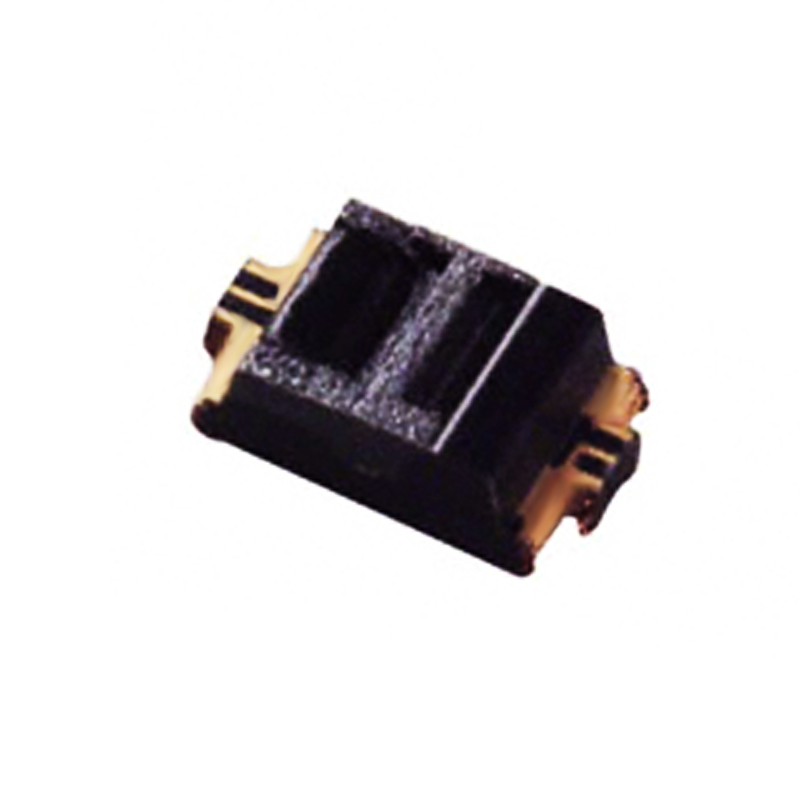

Sharp Microelectronics GP2S60 Reflective Optical Sensor, 0.5mm Detection Range, Phototransistor Output, Compact SMT
The Sharp Microelectronics GP2S60 is a reflective photointerrupter with phototransistor output, designed for precise non-contact detection at a 0.5mm range. Its ultra-compact SMT package is compatible with automated reflow soldering processes for integration into high-volume electronics assembly.
Features
- Reflective phototransistor output for non-contact object detection.
- Ultra-compact leadless SMT package measuring 3.2 × 1.7 × 1.1 mm.
- Optimized sensing distance of 0.5 mm for precision applications.
- Features visible light cut resin to minimize false triggering from ambient light.
- Supports reflow soldering and is supplied in Tape & Reel format for automated assembly.
Out of stock
The GP2S60 is a reflective photointerrupter module integrating an infrared emitter and a phototransistor detector aligned in the same direction. This configuration allows it to detect the presence of an object by measuring the reflection of its emitted IR light. The device is housed in a light-blocking molded package that incorporates a visible light cut resin, significantly reducing sensitivity to ambient light sources and enhancing detection reliability.
Engineered for modern surface-mount technology (SMT) production lines, the leadless package is compatible with standard reflow soldering profiles. Its miniature footprint and low profile make it an ideal solution for space-constrained designs in consumer electronics, portable devices, and precision industrial equipment requiring reliable object sensing.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 0.32 × 0.17 × 0.11 cm |
