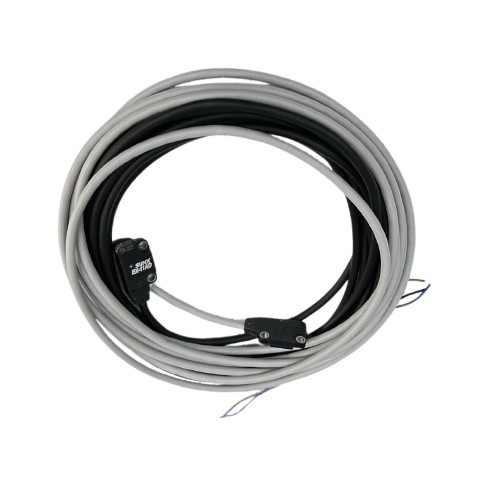

Panasonic EX-11AD Photoelectric Sensor, Range: 150 mm, IP67, 2m Cable

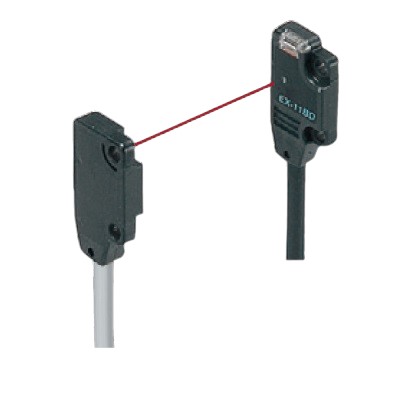

Panasonic EX-11AD Photoelectric Sensor, Range: 150 mm, IP67, 2m Cable - Image 2
SKU: SENS-1779
📋 GST Invoice Available

Panasonic EX-11AD Photoelectric Sensor, Range: 150 mm, IP67, 2m Cable

₹3,119.00 (Inclusive of all taxes)
Out of Stock

The Panasonic EX-11AD is a compact thru-beam photoelectric sensor receiver unit with a 150 mm sensing range, designed for reliable object detection in industrial automation. It operates on a 12-24V DC supply and features IP67 protection and a 2-meter cable for robust integration into PLCs, packaging machinery, and assembly line monitoring systems.

Features

  • Thru-beam receiver with a 150 mm (5.9 in) sensing range for precise object detection.
  • Robust IP67-rated polyarylate housing for reliable operation in harsh industrial environments.
  • High-speed response time of ≤0.5 ms for fast-paced automation and packaging applications.
  • Operates on a wide 12-24V DC supply (±10%) with low current consumption (≤10 mA).
  • Features both light-on and dark-on operation modes for flexible system integration.

Out of stock

Description

The Panasonic EX-11AD is a dedicated receiver unit for a thru-beam photoelectric sensing system, utilizing a modulated red LED (680 nm) emitter for stable, interference-resistant detection. Its compact, space-saving design is engineered for installations in confined spaces on machinery and automated lines.

Built with a durable polyarylate enclosure and lens, the sensor meets IP67 protection standards, ensuring reliable performance in environments with dust and temporary water immersion. It operates across an industrial temperature range of -25°C to +55°C and is rated for Pollution Degree 3, making it suitable for demanding factory floor applications.

Key Features

  • Compact, slim-profile design optimized for mounting in tight spaces on machinery.
  • IP67-rated (IEC) enclosure provides robust protection against dust and water ingress.
  • High-speed response time of 0.5 ms or less enables detection in high-cycle automation.
  • Features dual operation modes (light-on/dark-on) for versatile control logic configuration.
  • Equipped with clear operation (OrangeRX LED) and stability (green LED) indicator lights.
  • Designed for harsh industrial conditions with high vibration (20 G max) and shock (50 G) resistance.
  • Includes a 2-meter, 3-core cabtyre cable for simplified installation and connection.
  • Supports cable extensions up to 50 meters total for flexible system layout.

Applications

  • Precision object detection and counting on high-speed packaging and bottling lines.
  • Part presence verification and positioning control in automated assembly machinery.
  • Material handling and conveyor belt monitoring for jam detection and process control.
  • Robotics end-effector tooling for pick-and-place and component insertion verification.
  • Security and access control systems for beam-break detection in industrial settings.

Technical Specifications

ModelPanasonic EX-11AD
Sensing TypeThru-Beam (Receiver Unit)
Sensing Range150 mm (5.906 in)
Min. Sensing Objectø1 mm (opaque)
Supply Voltage12 to 24 V DC ±10%
Current Consumption≤10 mA (Receiver), ≤10 mA (Emitter)
Output VoltageMax. 30 V DC
Response Time≤0.5 ms
Light SourceModulated Red LED (680 nm)
Operation ModesLight-On / Dark-On
Protection RatingIP67 (IEC)
Housing MaterialPolyarylate
Operating Temperature-25°C to +55°C
Operating Humidity35 to 85% RH
Cable2 m, 3-core cabtyre cable
WeightApprox. 50 g

Frequently Asked Questions

What type of photoelectric sensing does the EX-11AD use?

The EX-11AD is specifically a receiver unit designed for a thru-beam sensing system. It requires a separate, compatible Panasonic emitter unit to create a detection beam. An object is sensed when it interrupts this beam between the emitter and receiver.

What is the operating voltage range and how do I wire it?

The sensor operates on a 12 to 24V DC supply with a ±10% tolerance. It features a 2-meter, 3-core cable. You must connect the brown wire to the positive DC supply, the blue wire to the negative/0V, and the black wire is the switched output. Always refer to the official datasheet for the exact pinout and connection diagram for your specific control system.

Can the EX-11AD's cable be extended for longer-distance installations?

Yes, the system supports cable extensions. Using a cable with a cross-section of 0.3 mm² or more, the total combined cable length for both the emitter and receiver can be extended up to 50 meters (164 feet) without significant signal degradation, allowing for flexible machine layout.

What do the LED indicators on the sensor signify?

The EX-11AD has two LED indicators. The OrangeRX LED lights up when the output is active (ON), providing a clear visual confirmation of detection. The green LED lights up when the unit is in a stable state, either receiving a consistent light signal (stable light) or in a consistent dark condition, indicating proper system alignment and function.

Package Includes

  • 1 x Panasonic EX-11AD Photoelectric Sensor (Receiver Unit)

Additional Information

Weight 0.05 kg
