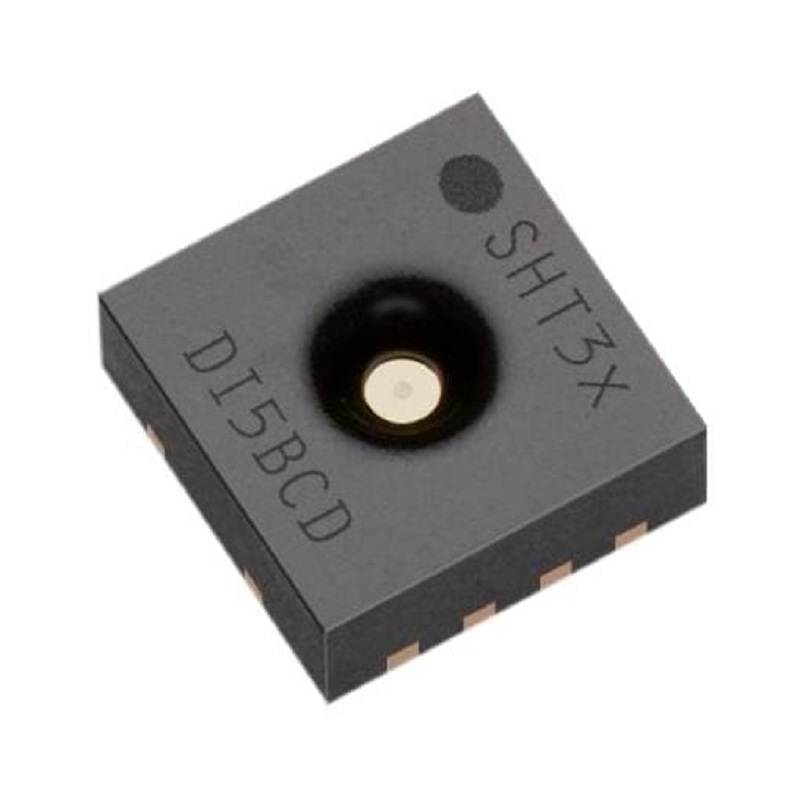

Sensirion SHT35-DIS-B2.5KS Humidity & Temperature Sensor, 0 to 100%RH, −40°C to +125°C, ±1.5%RH, I2C Interface, DFN-8 Package
Sensirion SHT35-DIS-B2.5KS Humidity & Temperature Sensor, 0 to 100%RH, −40°C to +125°C, ±1.5%RH, I2C Interface, DFN-8 Package - Image 2
SKU: SENS-3506
📋 GST Invoice Available

Sensirion SHT35-DIS-B2.5KS Humidity & Temperature Sensor, 0 to 100%RH, −40°C to +125°C, ±1.5%RH, I2C Interface, DFN-8 Package

₹519.00 (Inclusive of all taxes)
Out of Stock

The Sensirion SHT35-DIS-B2.5KS is a fully calibrated digital humidity and temperature sensor with an I2C interface, designed for high-accuracy environmental monitoring. It operates from 2.4V to 5.5V, making it compatible with 3.3V and 5V logic systems like Arduino, Raspberry Pi, ESP32, and industrial PLCs.

Features

  • High-Accuracy Sensing: Delivers ±1.5% RH humidity accuracy and ±0.2°C temperature precision over a wide operating range.
  • Robust Digital Interface: Features a standard I2C digital output for reliable communication and easy system integration.
  • Extended Environmental Range: Operates from -40°C to +125°C and 0-100% RH for demanding industrial and outdoor applications.
  • Low Power Profile: Optimized for energy efficiency, suitable for battery-powered data loggers and portable devices.
  • Industrial-Grade Package: Housed in a compact, reflow-solderable DFN-8 package for automated PCB assembly and space-constrained designs.

Out of stock

Description

The SHT35-DIS-B2.5KS utilizes Sensirion’s proven CMOSens® technology, which integrates a capacitive polymer humidity sensor and a band-gap temperature sensor on a single CMOS silicon chip. This monolithic design ensures excellent signal quality, minimal thermal hysteresis, and outstanding long-term stability. The sensor’s digital signal conditioning provides fully calibrated, linearized readings directly via the I2C bus.

Engineered for reliability, the sensor features a robust protective cover and is designed to withstand challenging environmental conditions, including condensation. Its wide supply voltage range from 2.4V to 5.5V offers flexibility for various system architectures, from low-power wireless nodes to standard 5V microcontroller platforms.

Key Features

  • High-Precision Measurement: Provides industry-leading accuracy of ±1.5% RH and ±0.2°C for critical monitoring applications.
  • Fully Digital I2C Output: Delivers calibrated, temperature-compensated digital readings, eliminating the need for analog signal conditioning.
  • Exceptional Long-Term Stability: Features Sensirion's patented technology for minimal drift, ensuring consistent performance over the product lifetime.
  • Wide Operating Range: Functions reliably across an extensive temperature span from -40°C to +125°C and 0-100% relative humidity.
  • Low Power Consumption: Optimized for energy-sensitive applications, supporting extended operation in battery-powered systems.
  • Reflow-Solderable DFN Package: The compact DFN-8 surface-mount package is designed for high-volume, automated PCB assembly processes.
  • Fast Response Time: Enables rapid detection of environmental changes for dynamic control systems.
  • High-Value Build: Combines premium sensing performance with a durable construction optimized for cost-effective integration.

Applications

  • HVAC & Building Automation: Precise climate control and indoor air quality monitoring in commercial and residential systems.
  • Industrial Process Monitoring: Environmental condition tracking in manufacturing, cleanrooms, and pharmaceutical storage.
  • Weather Stations & Environmental Networks: High-accuracy data logging for meteorological research and outdoor monitoring.
  • Automotive Cabin Control: Climate management and defogging systems within vehicle interiors.
  • Portable Data Loggers & IoT Devices: Battery-operated field instruments for agricultural, scientific, and asset tracking applications.

Technical Specifications

Manufacturer Part NumberSHT35-DIS-B2.5KS
BrandSensirion
Sensor TypeHumidity & Temperature
Humidity Range0 to 100 %RH
Humidity Accuracy±1.5 %RH
Temperature Range-40°C to +125°C
Supply Voltage2.4 V to 5.5 V DC
Output InterfaceI2C (Digital)
Package / CaseDFN-8
Operating Temperature-40°C to +125°C
CalibrationFully Calibrated
Long-Term StabilityExcellent
SolderabilityReflow Solderable

Frequently Asked Questions

What is the operating voltage range for the SHT35-DIS-B2.5KS sensor?

The SHT35-DIS-B2.5KS operates from a wide supply voltage range of 2.4V to 5.5V DC. This makes it directly compatible with both 3.3V and 5V microcontroller systems, such as Arduino, Raspberry Pi, and ESP32 boards, without requiring a level shifter.

How do I communicate with this sensor using the I2C interface?

The sensor uses a standard I2C communication protocol. You will need to connect the SDA (data) and SCL (clock) lines to your microcontroller, along with power and ground. The sensor's I2C address is configurable, and Sensirion provides comprehensive datasheets with command sets for initiating measurements and reading data.

Is the sensor calibrated, and what is its long-term stability?

Yes, the SHT35-DIS-B2.5KS is fully calibrated and delivers linearized digital output. Sensirion's CMOSens® technology ensures excellent long-term stability, meaning the sensor maintains its specified ±1.5% RH accuracy over its operational lifetime with minimal drift, which is critical for long-term monitoring applications.

Can this sensor withstand harsh or condensing environments?

The SHT35 is designed with robustness in mind and can operate across its full -40°C to +125°C range. It features a protective cover and is engineered to handle challenging conditions, including temporary exposure to condensation. For prolonged exposure to liquids, additional conformal coating on your PCB may be recommended.

Package Includes

  • 1 x Sensirion SHT35-DIS-B2.5KS Humidity & Temperature Sensor (DFN-8 Package)

Additional Information

Weight 0.02 kg
Dimensions 11 × 9 × 5 cm
