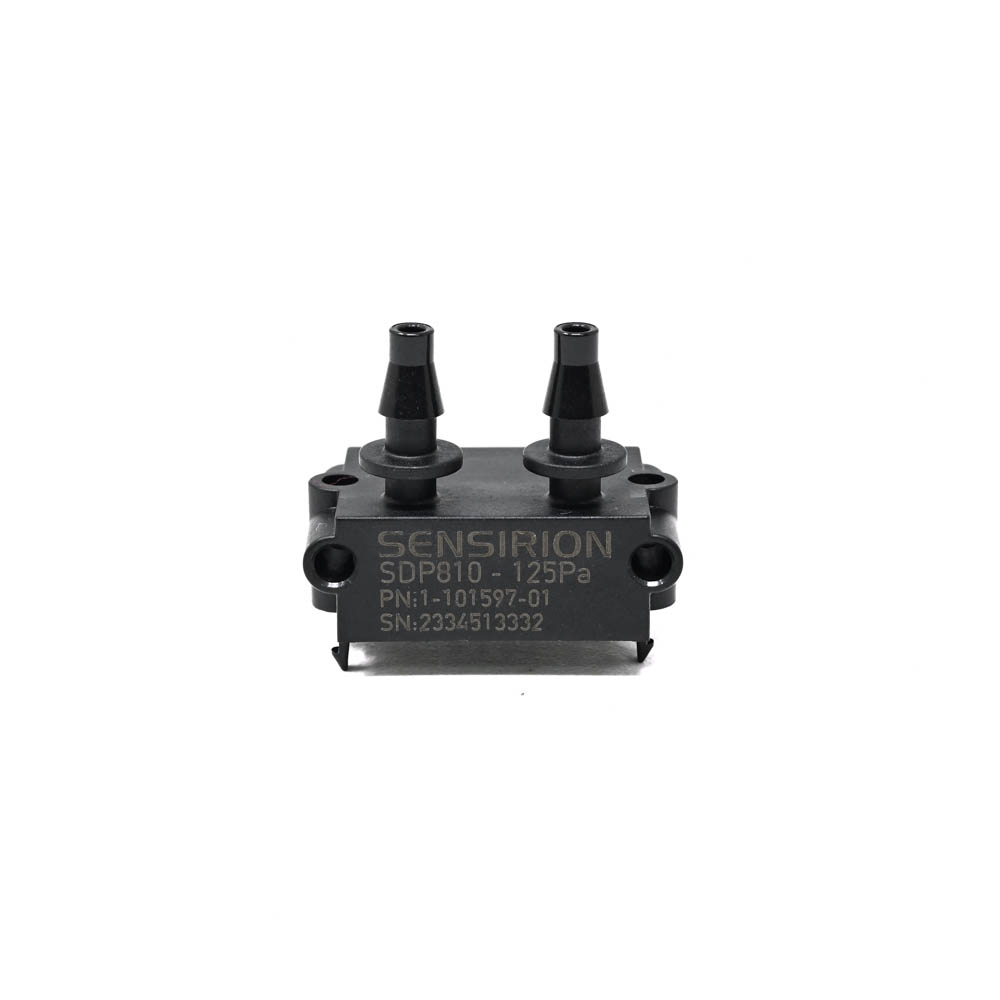

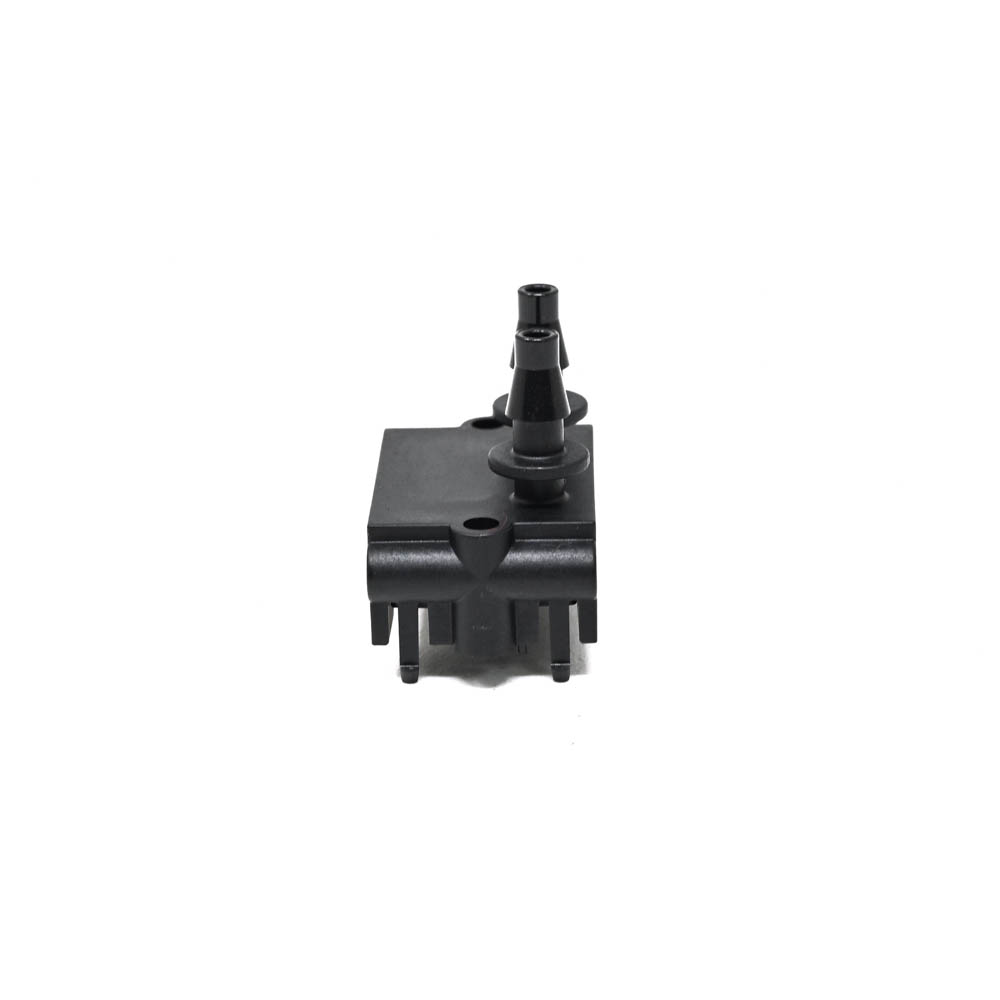

Sensirion SDP810-125PA Differential Pressure Sensor, 125 Pa, Digital I2C, Tube Port
The Sensirion SDP810-125PA is a digital differential pressure sensor with a tube port, designed for precise measurement of air and non-aggressive gases. It features a direct I2C digital interface for easy integration with microcontrollers, industrial PLCs, and data acquisition systems, making it ideal for HVAC and medical instrumentation applications.
Features
- Digital differential pressure sensor with ±125 Pa measurement range.
- CMOSens MEMS technology ensures high accuracy, zero drift, and long-term stability.
- Direct I2C digital interface (2-wire) for simple microprocessor connection.
- Wide operating voltage range from 3.0V to 5.5V with low power consumption.
- Robust performance across a calibrated temperature range of -20°C to 85°C.
Out of stock
The SDP810-125PA utilizes Sensirion’s patented CMOSens technology, integrating the sensor element, signal processing, and digital calibration on a single CMOS chip. This thermal flow-through sensing principle provides exceptional accuracy at the low end of the measurement range, with no offset drift and minimal hysteresis. The sensor is specifically calibrated for air and nitrogen.
Designed for high-volume, cost-sensitive OEM applications, it offers a fast response time and excellent signal-to-noise ratio. The digital output eliminates the need for external analog-to-digital conversion, simplifying system design and improving reliability in demanding environments such as HVAC systems, gas boilers, and medical devices.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 10 × 7 × 3 cm |
