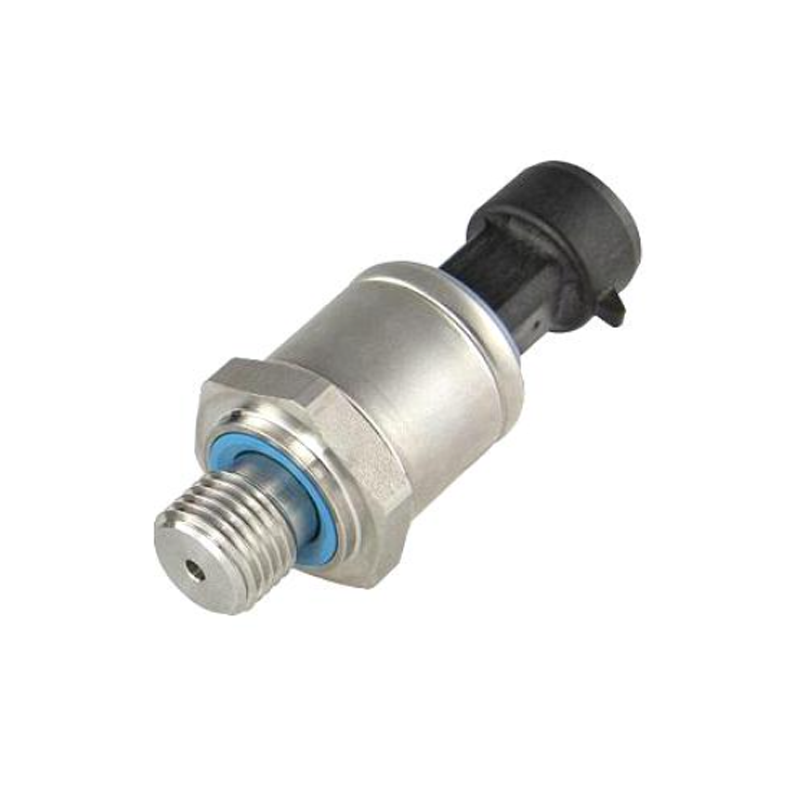

Sensata Technologies PTE7100-21AC-1A050BN Pressure Transmitter, Gauge, 0-50 bar, BSPP G1/4A Port, Metri-Pack 150 Connector
Sensata Technologies PTE7100-21AC-1A050BN Pressure Transmitter, Gauge, 0-50 bar, BSPP G1/4A Port, Metri-Pack 150 Connector - Image 2
SKU: SENS-2162
📋 GST Invoice Available

Sensata Technologies PTE7100-21AC-1A050BN Pressure Transmitter, Gauge, 0-50 bar, BSPP G1/4A Port, Metri-Pack 150 Connector

₹17,249.00 (Inclusive of all taxes)
Out of Stock

The Sensata Technologies PTE7100-21AC-1A050BN is an industrial-grade gauge pressure transmitter delivering a 0-50 bar measurement range via a robust 17-4PH stainless steel housing with a BSPP G1/4A port. Featuring a current output signal and a wide 8-32VDC supply range, it integrates directly with PLCs, DCS, and industrial control systems for reliable process monitoring.

Features

  • Gauge pressure measurement range from 0 to 50 bar (0 to 5 MPa)
  • Current output signal for robust, noise-immune transmission over long distances
  • 17-4PH stainless steel housing and BSPP G1/4A pressure port for durability in harsh fluid/gas media
  • Wide 8 to 32VDC supply voltage and -40°C to 100°C operating temperature range
  • Metri-Pack 150 connector for secure, vibration-resistant electrical termination

Out of stock

Description

The Sensata Technologies PTE7100 series transmitter utilizes a precision strain gauge sensing element to provide accurate and stable gauge pressure readings. The 17-4PH precipitation-hardened stainless steel construction ensures exceptional mechanical strength and corrosion resistance, making it suitable for demanding industrial environments including hydraulic systems, process automation, and mobile equipment.

Its current output provides inherent immunity to electrical noise and signal degradation over extended cable runs, ensuring reliable data acquisition by PLCs and data loggers. The integrated Metri-Pack 150 connector offers a sealed, positive-lock interface for quick and secure wiring, while the standardized BSPP G1/4A threaded port simplifies installation into existing piping and manifold systems.

Key Features

  • Industrial-grade pressure transmitter with 0-50 bar gauge range
  • High-strength 17-4PH stainless steel housing for maximum durability
  • Current loop output ensures stable signal transmission in electrically noisy environments
  • Broad compatibility with 8-32VDC power supplies and -40°C to 100°C operating temperatures
  • BSPP G1/4A pressure port conforms to international fluid system standards
  • Sealed Metri-Pack 150 connector provides reliable, vibration-proof electrical connection
  • Designed for long-term stability and minimal drift in harsh industrial applications
  • Ideal for monitoring hydraulic pressure, process control, and compressor systems

Applications

  • Hydraulic system pressure monitoring and control in mobile machinery
  • Process pressure measurement in chemical, oil, and gas industry pipelines
  • Compressed air and gas pressure monitoring in industrial automation
  • Pump and compressor performance monitoring and protection systems
  • Fluid power system diagnostics and condition-based maintenance in manufacturing

Technical Specifications

Manufacturer Part NumberPTE7100-21AC-1A050BN
Pressure TypeGauge
Pressure Range0 to 50 bar
Output SignalCurrent
Supply Voltage8 to 32 VDC
Pressure PortG1/4A BSPP
Electrical ConnectionMetri-Pack 150
Housing Material17-4PH Stainless Steel
Operating Temperature-40°C to 100°C
Length75 mm
Width28 mm
Weight400 g

Frequently Asked Questions

What is the output signal type of the PTE7100-21AC-1A050BN pressure transmitter?

This transmitter provides a current output signal. Current loop outputs, typically 4-20mA, are standard in industrial environments due to their high noise immunity and ability to transmit signals over long distances without significant degradation, making them ideal for integration with PLCs and distributed control systems.

What type of pressure port and thread does this sensor have?

The sensor is equipped with a G1/4A BSPP (British Standard Pipe Parallel) female pressure port. This is a common international standard for fluid and gas connections, requiring a matching male BSPP threaded fitting for installation into pipelines, manifolds, or test points.

What is the operating voltage range for this pressure transmitter?

The transmitter operates from a wide-range DC power supply of 8 to 32 volts. This broad compatibility allows it to be powered by common industrial 12VDC or 24VDC power sources, providing flexibility for integration into various mobile and stationary equipment control panels.

Is this sensor suitable for use with aggressive media or in harsh environments?

Yes. The housing is constructed from 17-4PH stainless steel, which offers high strength and excellent corrosion resistance. Combined with its IP-rated electrical connector (Metri-Pack 150) and a wide operating temperature range of -40°C to 100°C, it is designed to perform reliably in demanding industrial settings.

How do I electrically connect to the transmitter?

Connection is made via a sealed Metri-Pack 150 series connector. This connector provides a secure, vibration-resistant interface. You will need the corresponding Metri-Pack 150 series female connector terminals and housing to wire the power supply and output signal to your control system.

Package Includes

  • 1 x Sensata Technologies PTE7100-21AC-1A050BN Pressure Transmitter

Additional Information

Weight 0.4 kg
Dimensions 7.5 × 2.8 cm
