Sencoch GZP6816D Pressure Sensor, 30Kpa~110Kpa Range, 3.3V I2C
The Sencoch GZP6816D is a low-power MEMS piezoresistive pressure sensor module with an I2C digital interface, designed for 3.3V systems such as ESP32, Raspberry Pi, and STM32 microcontrollers. It provides precise gauge pressure measurement from 30 kPa to 110 kPa, ideal for portable and battery-powered applications.
Features
- Ultra-low standby current of 50 nA for extended battery life
- Digital I2C interface for easy integration with 3.3V microcontrollers

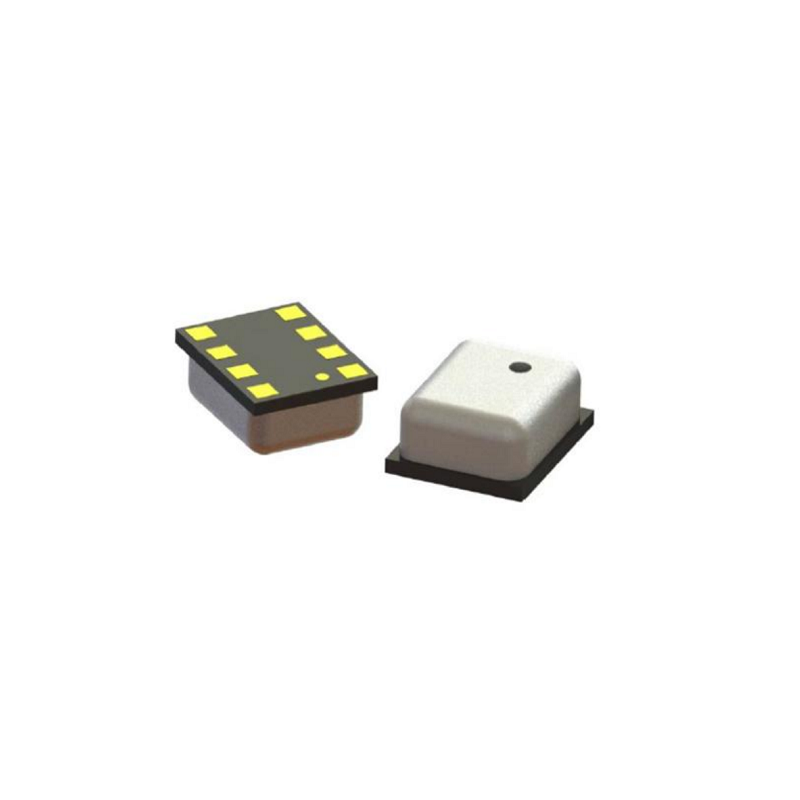

- Compact SMD-8P package (2×2.5mm) for space-constrained designs
- Wide operating temperature range from -30°C to +85°C
- ±2% accuracy for reliable gauge pressure monitoring
Out of stock
The GZP6816D utilizes a MEMS piezoresistive sensing element to translate applied pressure into a precise digital signal via its integrated I2C communication interface. This design ensures stable readings with minimal power consumption, making it suitable for always-on monitoring applications.
Engineered for reliability across a broad temperature spectrum, the sensor’s signal conditioning circuitry is optimized for 3.3V logic levels, providing robust performance in medical devices, portable instrumentation, and smart home appliances where power efficiency and compact size are critical.
Additional Information
| Weight | 0.008 kg |
|---|
