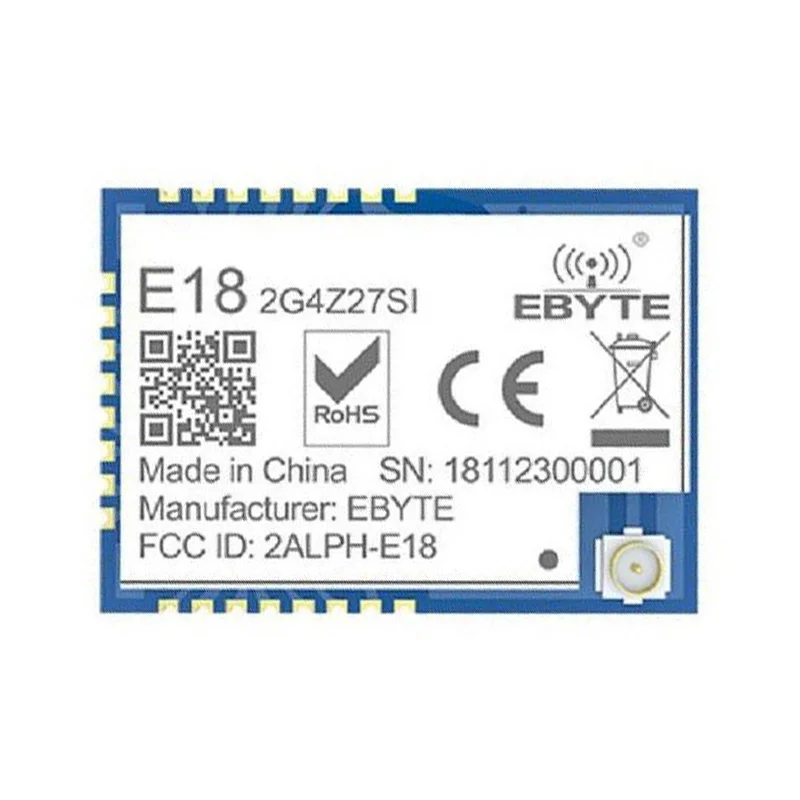

EByte E18-2G4Z27SI ZigBee Module CC2530F256+CC2592 27dBm 2.4GHz
The EByte E18-2G4Z27SI is a high-power 2.4GHz ZigBee wireless module based on the TI CC2530F256 SoC and CC2592 front-end, delivering up to 27dBm output power for long-range IoT mesh networks up to 2.5km. It operates at 3.3V and is designed for smart home automation and industrial sensor networks.
Features
- High-Power ZigBee Transceiver: Integrates TI CC2530F256 SoC with CC2592 PA/LNA for a massive 27dBm (500mW) output power, enabling robust, long-range mesh network links up to 2.5km in open areas.
- Excellent RF Sensitivity: Features a high receiver sensitivity of -98dBm, ensuring reliable data reception even from weak signals, critical for stable network performance in challenging RF environments.
- Comprehensive GPIO & ADC Interface: Provides accessible GPIO, ADC, and PWM pins for direct sensor integration and peripheral control, simplifying node design for automation and monitoring applications.
- Low-Power Operation for Battery Nodes: Offers optimized power consumption with 33mA receive current and deep sleep modes via the CC2530, making it suitable for battery-powered ZigBee end devices and routers.
- Industrial-Grade Reliability: Operates across a wide -40°C to +85°C temperature range with SMD construction and ROHS compliance, ensuring durability for outdoor and industrial IoT deployments.
Out of stock
The EByte E18-2G4Z27SI is a professional-grade 2.4GHz ZigBee RF module engineered for demanding wireless sensor networks and automation systems. Its core architecture combines the proven TI CC2530F256 system-on-chip—featuring an 8051 MCU, hardware AES encryption, and ZigBee PRO stack support—with the integrated CC2592 range extender. This pairing delivers exceptional +27dBm transmit power and high receiver sensitivity, dramatically extending the reliable communication distance for star or mesh network topologies.
Designed for seamless integration, the module operates from a single 3.3V supply and exposes critical interfaces including ADC, PWM, and multiple GPIOs for connecting sensors, actuators, and status LEDs. Its surface-mount form factor and integrated IPEX antenna connector allow for compact, low-profile PCB designs. The module’s power profile, with controlled transmit and receive currents, supports the creation of energy-efficient nodes that can operate for extended periods on battery power when utilizing the CC2530’s sleep modes.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 7 × 6 × 1 cm |
