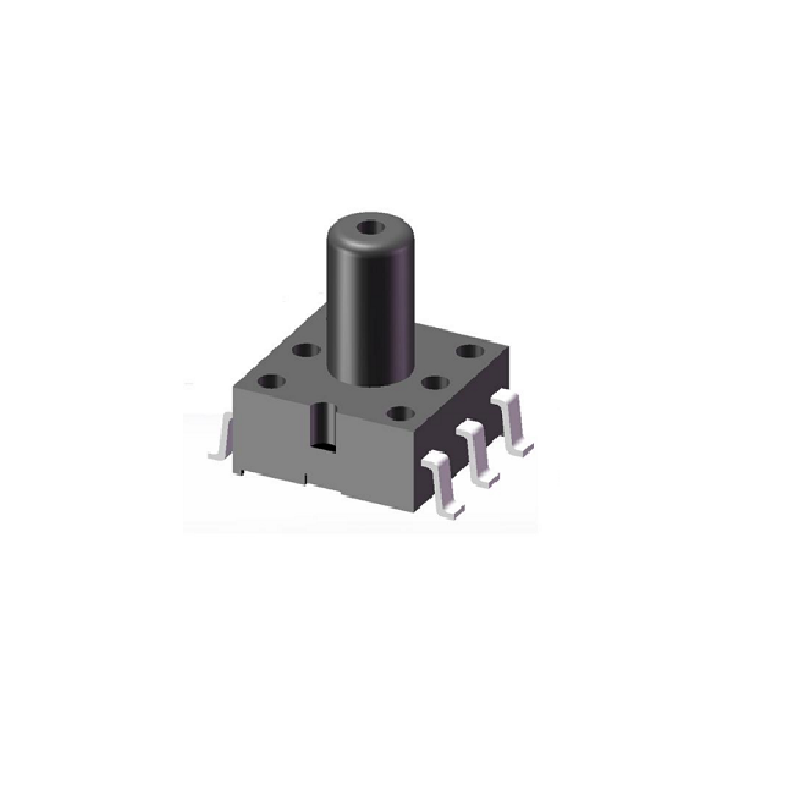

Sencoch GZP160-101S Analog Pressure Sensor, -100kPa~100kPa, 1.8V~15V, SOP-6 Package
The Sencoch GZP160-101S is a piezoresistive analog pressure sensor in an SOP-6 package, designed for gauge pressure measurement from -100 kPa to +100 kPa. It operates from a wide 1.8V to 15V DC supply, making it compatible with 3.3V and 5V microcontroller systems like Arduino and Raspberry Pi, and is suitable for applications from -30°C to +100°C.
Features
- Piezoresistive sensing element for gauge pressure measurement from -100 kPa to +100 kPa.
- Wide operating voltage range of 1.8V to 15V DC for flexible system integration.
- Analog voltage output signal for direct ADC connection to microcontrollers.
- Compact SOP-6 surface-mount package for space-constrained PCB designs.
- Extended operating temperature range from -30°C to +100°C.
Out of stock
The GZP160-101S utilizes a MEMS piezoresistive sensing element to translate applied pressure into a proportional analog voltage signal. This design provides a stable and linear output across its full measurement range, suitable for precise monitoring and control systems.
Housed in a robust SOP-6 package, the sensor is engineered for reliable performance in demanding environments, including medical devices and household appliances. Its wide supply voltage tolerance ensures compatibility with various logic levels and power supplies without requiring additional regulation.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 6 × 9 × 2 cm |
