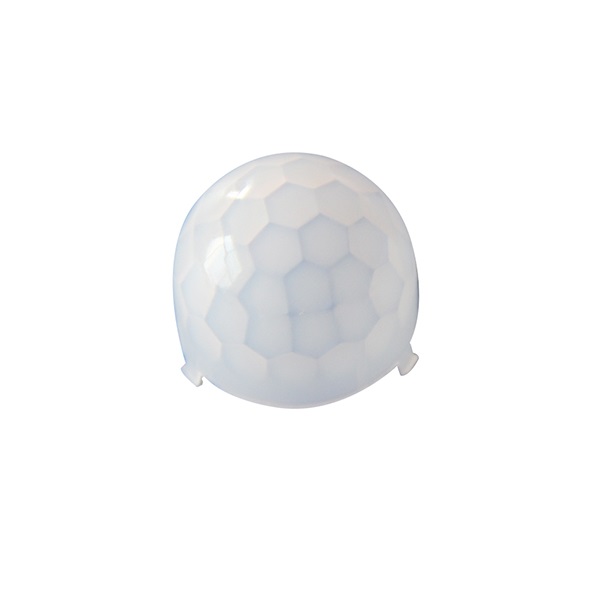

Senba S9004 HDPE Optical Fresnel Lens for PIR Sensors - 8m Detection, 100° Viewing Angle
The Senba S9004 is a high-density polyethylene (HDPE) Fresnel lens designed to focus infrared radiation onto Passive Infrared (PIR) sensor elements, enhancing detection range and sensitivity for security and automation systems. It features a 10.5mm focal length, an 8-meter detection distance, and a 100° viewing angle for broad coverage.
Features
- HDPE (High-Density Polyethylene) construction for durability and optical clarity.
- Optimized for PIR sensors with a 10.5mm focal length and 100° wide viewing angle.
- Enhances sensor detection range up to 8 meters for improved system coverage.
- Standard 22.5mm diameter and 3-pin footprint for easy integration into existing sensor housings.
- Concentric groove design efficiently focuses IR radiation onto the sensor element.
Out of stock
The Senba S9004 Fresnel lens is a critical optical component for Passive Infrared (PIR) motion detection systems. Its concentric groove pattern on one side focuses ambient infrared radiation from a wide 100° field of view onto the pyroelectric sensor element, significantly increasing its sensitivity and effective detection range to 8 meters. The smooth opposite side protects the optical surface.
Manufactured from transparent HDPE, this lens offers a high-value balance of optical performance, environmental resistance, and mechanical durability. It is a direct-fit component designed for integration into standard PIR sensor modules, alarm systems, and human presence detection switches, forming the essential optical interface between the environment and the sensing electronics.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 5 × 3 × 1 cm |
