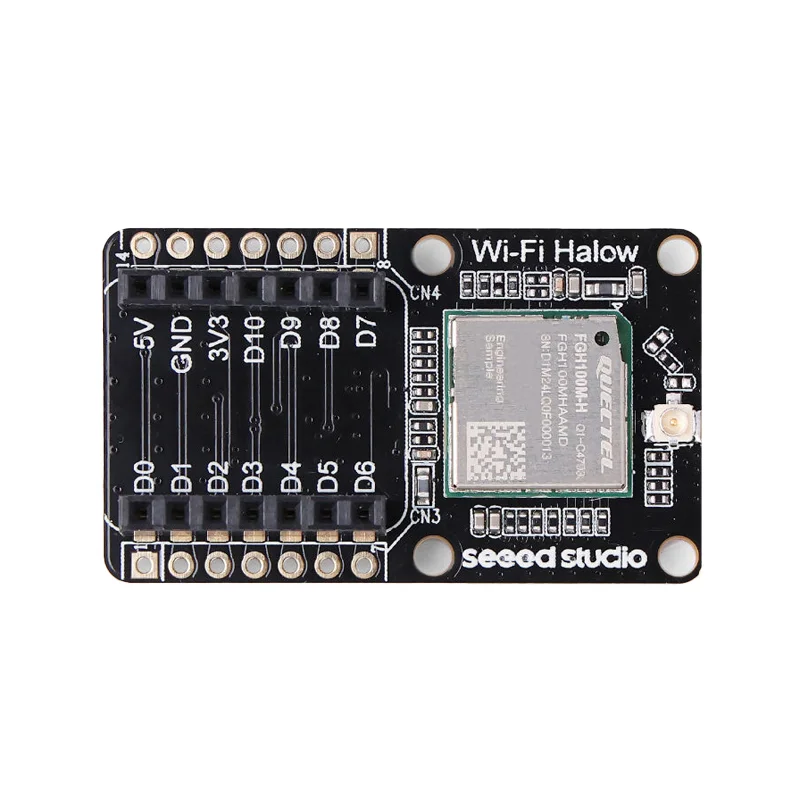

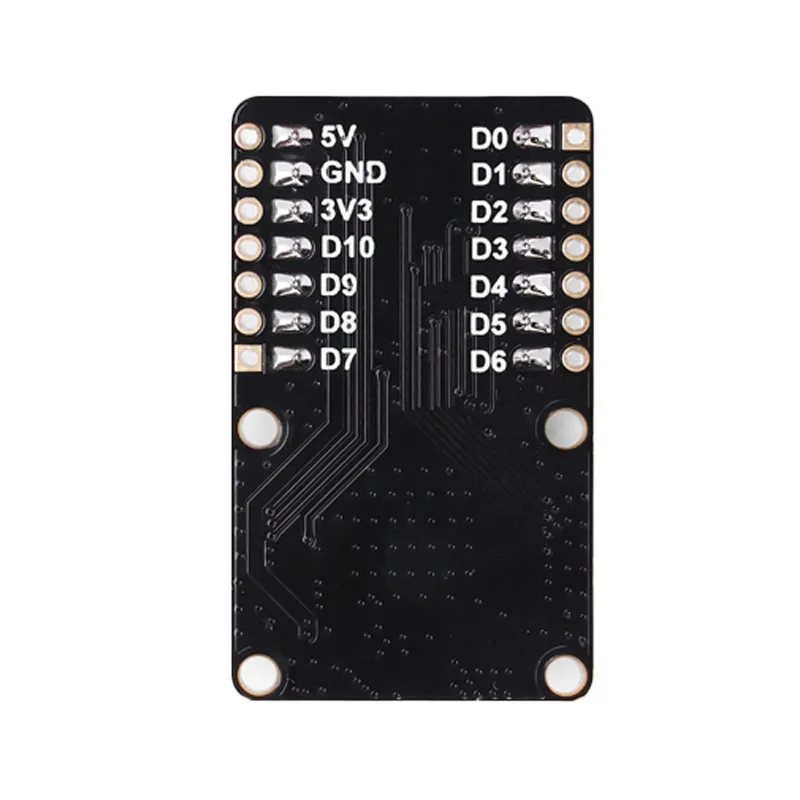

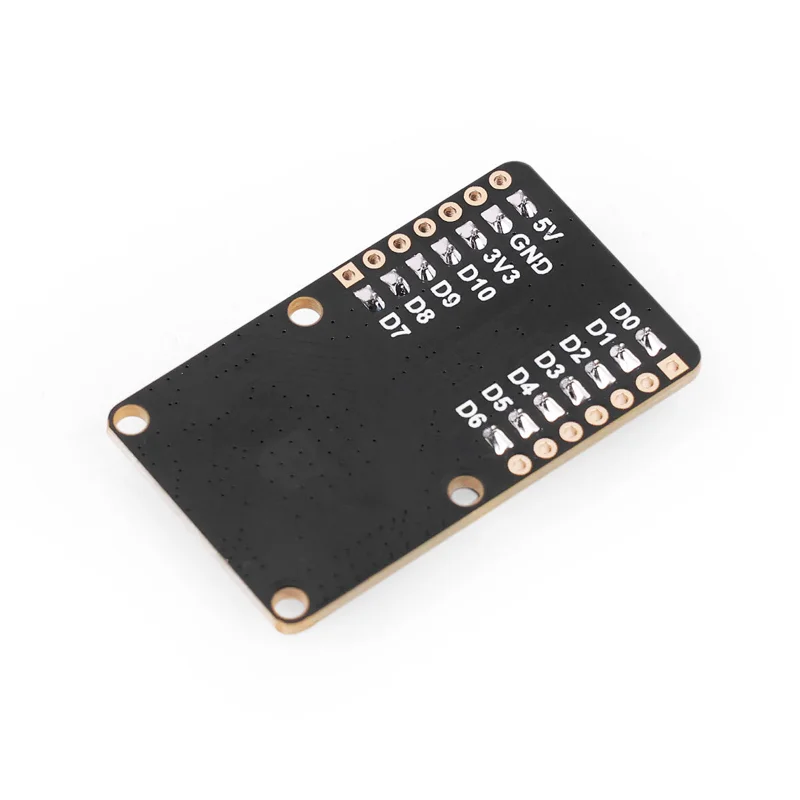

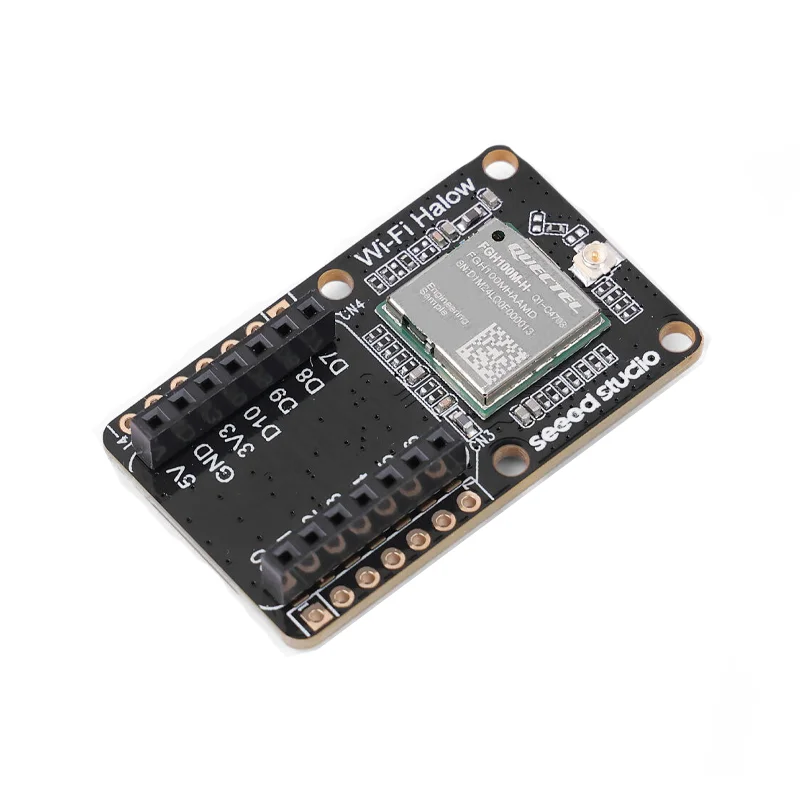

Seeed Studio Studio Wi-Fi HaLow FGH100M-H Module Transceiver for XIAO
The Seeed Studio Studio Wi-Fi HaLow Transceiver, based on the FGH100M-H module, provides long-range, sub-GHz wireless connectivity for the XIAO ecosystem. Operating on the IEEE 802.11ah standard in the 902–928 MHz band, it offers extended range and superior wall penetration for IoT and smart city applications.
Features
- Long-range sub-GHz Wi-Fi HaLow (IEEE 802.11ah) transceiver operating in the 902–928 MHz band.
- Delivers coverage up to 1 km with strong signal penetration through walls and obstacles.
- Features advanced AES, SHA-256/384/512, and WPA3 encryption for robust network security.
- Ultra-low power design ideal for battery-operated IoT sensors and remote monitoring nodes.
- Pre-soldered and ready for seamless integration with Seeed Studio Studio XIAO boards, especially the XIAO ESP32 series.
Out of stock
The Seeed Studio Studio Wi-Fi HaLow Transceiver leverages the FGH100M-H module to implement the IEEE 802.11ah standard, a wireless protocol engineered for the Internet of Things. Operating in the license-exempt 902–928 MHz sub-GHz band, this module achieves significantly greater range and building penetration compared to traditional 2.4 GHz Wi-Fi, making it a cornerstone for large-scale, low-power sensor networks.
Its architecture is optimized for low-duty-cycle applications, featuring deep sleep modes and efficient power management that prolong battery life in field-deployed devices. The compact 42 x 25 mm board form factor and pre-soldered headers allow for direct plug-and-play compatibility with the XIAO development ecosystem, simplifying prototype development for smart agriculture, industrial telemetry, and smart city infrastructure.
Additional Information
| Weight | 0.002 kg |
|---|---|
| Dimensions | 4.5 × 2.5 cm |
