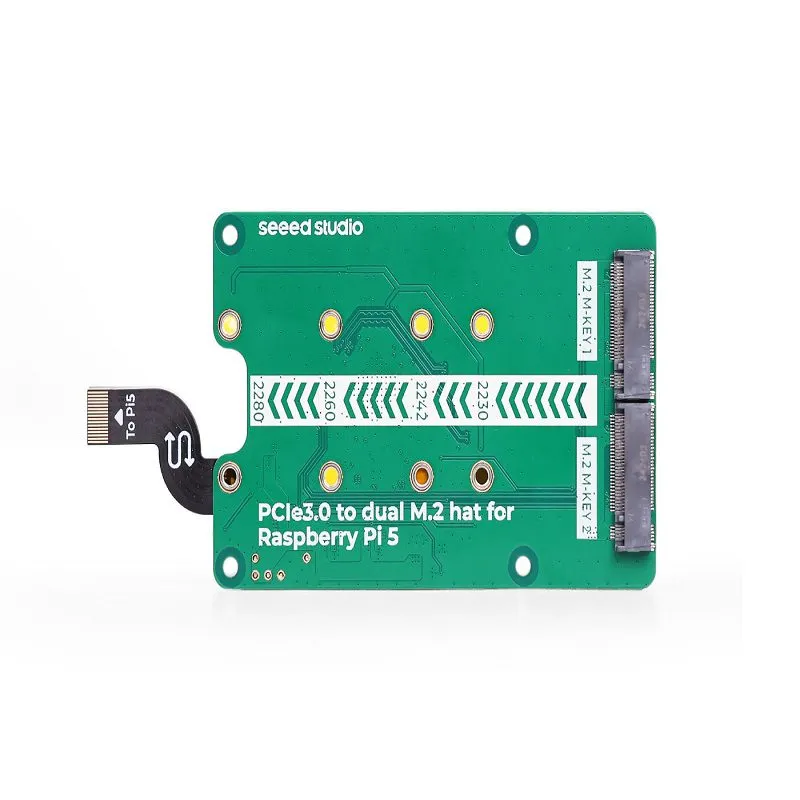

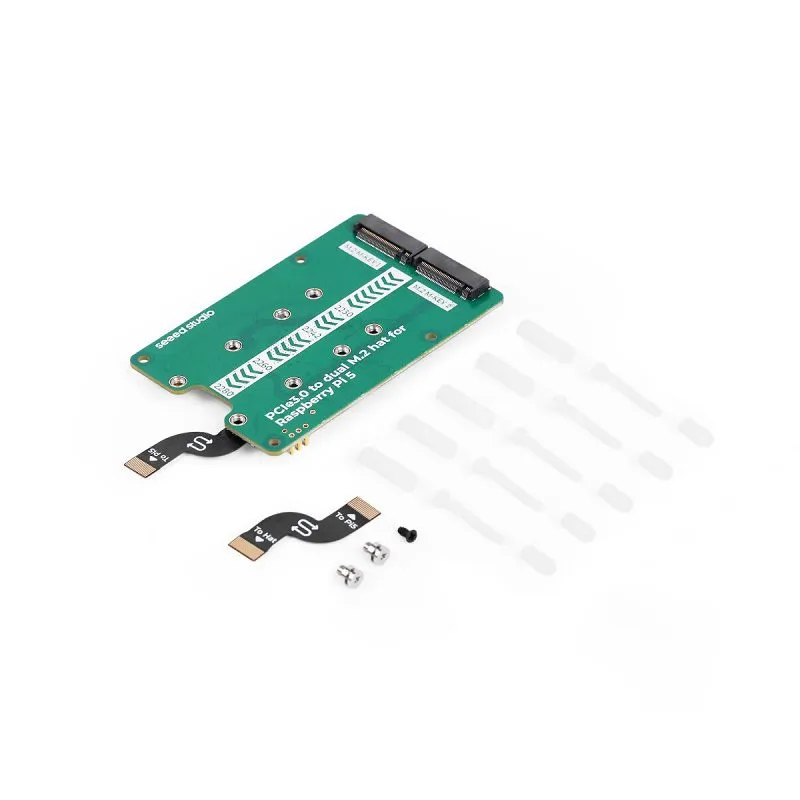

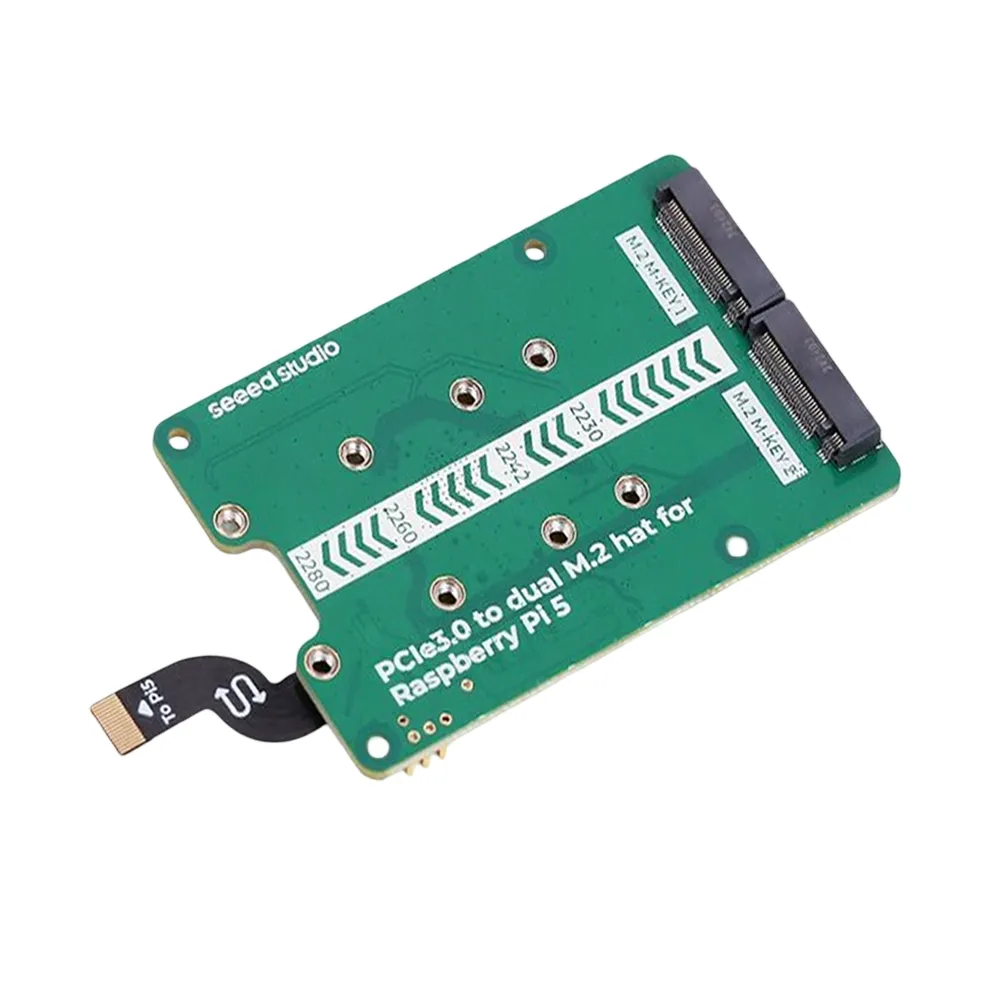

Seeed Studio Studio Dual M.2 PCIe 3.0 Switch HAT for Raspberry Pi 5
The Seeed Studio Studio Dual M.2 PCIe 3.0 Switch HAT for Raspberry Pi 5 leverages the board’s PCIe interface to provide two M.2 M-Key slots for NVMe SSDs and AI accelerators like Hailo-8/8L, ideal for high-speed storage and edge AI applications.
Features
- Dual M.2 slots with PCIe 3.0 for NVMe SSDs and AI accelerators.
- Stable power delivery via additional pogo pins ensures reliable performance.
- Supports multiple M.2 form factors (2230/2242/2260/2280).
- Back-mounted design keeps the 40-pin GPIO header free for other HATs.
- User-friendly S-shaped FPC cable does not obstruct the micro SD card slot.
Out of stock

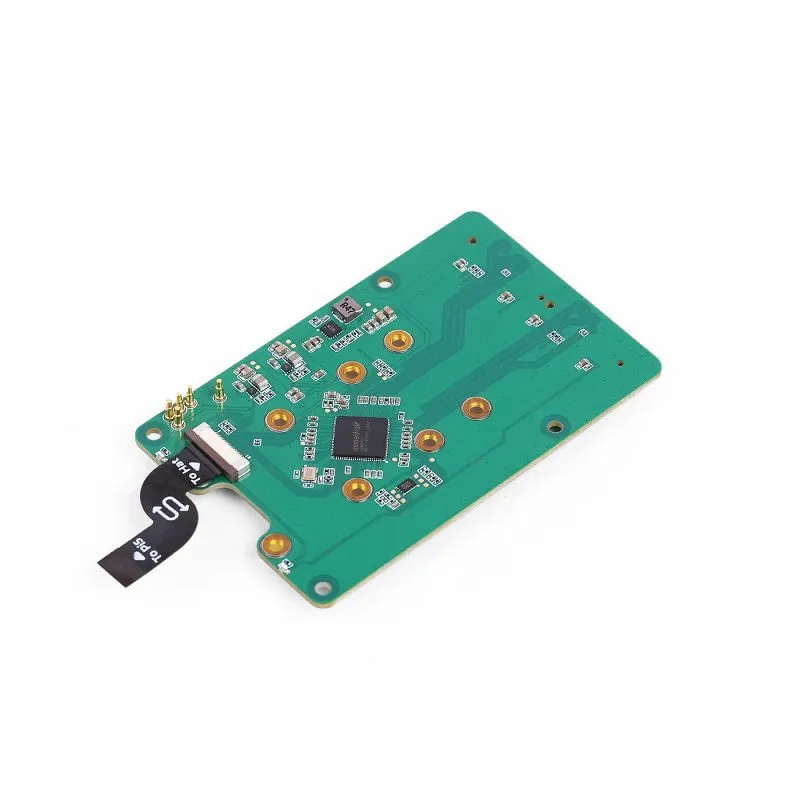

The Seeed Studio Studio PCIe 3.0 Switch to Dual M.2 HAT is a purpose-built expansion board engineered for the Raspberry Pi 5, designed to fully utilize the host board’s integrated PCIe interface. This HAT features an advanced ASMedia ASM2806 PCIe Gen 3.0 switch chip, which intelligently bifurcates the single PCIe lane from the Raspberry Pi 5 into two independent M.2 M-Key slots. This architecture enables users to integrate high-speed NVMe SSDs for enhanced storage performance and next-generation AI accelerators such as the Hailo-8 and Hailo-8L.
This HAT provides a robust and practical solution for developers and makers engaged in demanding applications like edge computing, machine learning, and data-intensive projects. By combining both rapid data storage and potent AI processing capabilities within a compact form factor, it eliminates performance bottlenecks and maximizes the Raspberry Pi 5’s potential without compromising system footprint or thermal efficiency. The design prioritizes stability with pogo pin power delivery and user accessibility, ensuring GPIO pins and SD card access remain unhindered.
Additional Information
| Weight | 0.023 kg |
|---|---|
| Dimensions | 8.9 × 5.5 cm |
