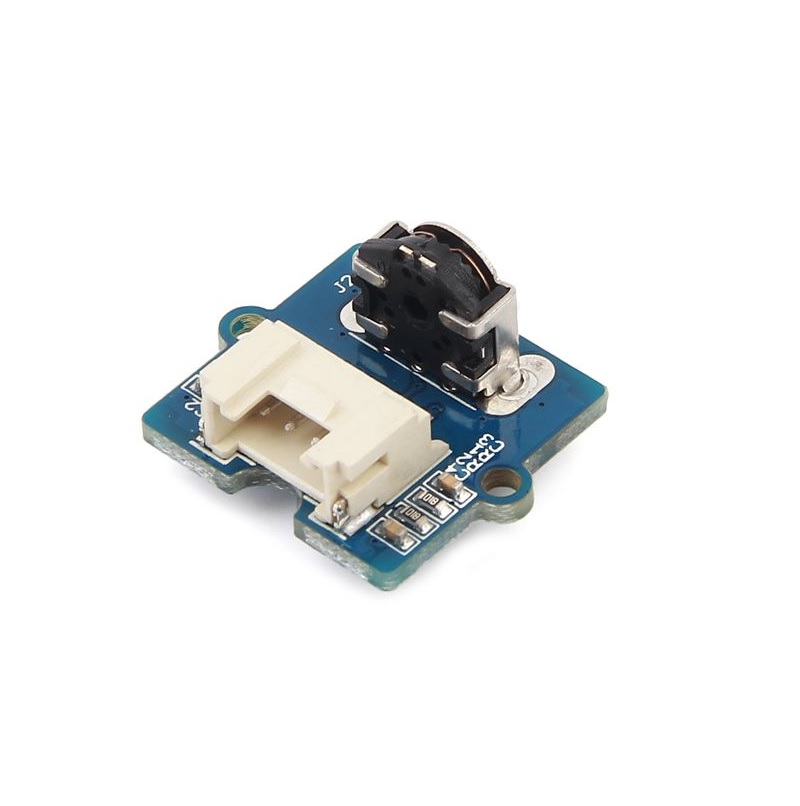

Seeed Studio Studio Grove Mouse Encoder - Mechanical Rotary Encoder Module
The Seeed Studio Studio Grove Mouse Encoder is a mechanical incremental rotary encoder module featuring A and B quadrature channels for precise direction and speed feedback. It integrates a standard Grove interface for simplified connection to Arduino, Raspberry Pi, and other 3.3V/5V microcontroller platforms.
Features
- Mechanical incremental rotary encoder with A/B quadrature output.
- Standard Grove 4-pin interface for plug-and-play wiring.
- Wide operating voltage range of 3.3V to 5.5V DC.
- Robust construction adapted for heavy-duty and harsh environments.
- Provides 12 pulses per mechanical revolution with tactile detents.
Out of stock
The Grove Mouse Encoder is a precision electromechanical component designed to convert angular position or motion into a digital pulse train. It operates on the principle of mechanical contact switching, generating two square wave signals (Channel A and Channel B) with a 90-degree phase shift, enabling microcontrollers to determine both the direction of rotation and the relative speed.

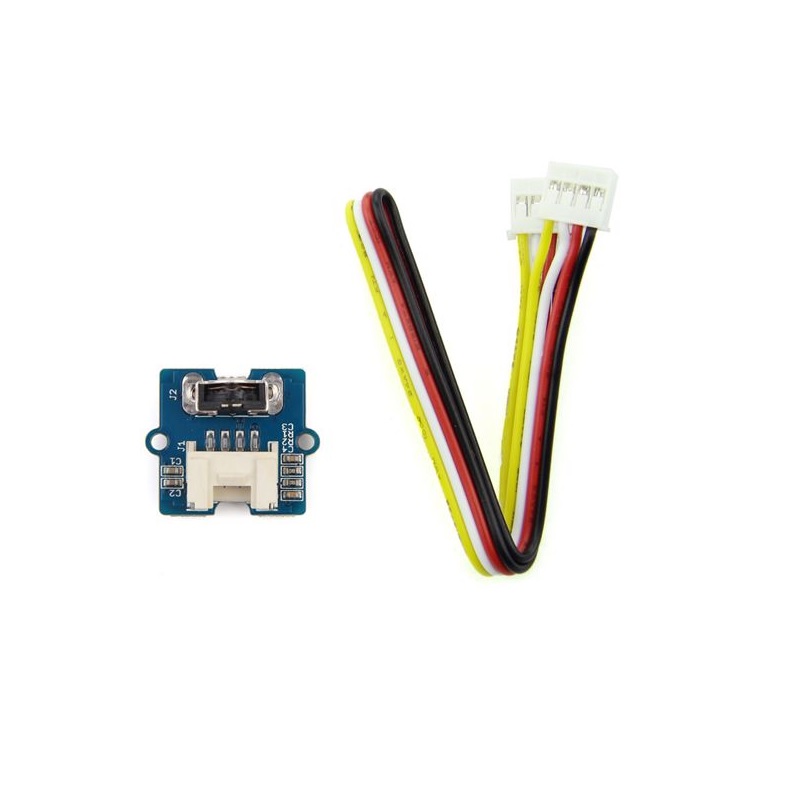

Its integrated Grove connector eliminates complex wiring, offering a reliable interface for rapid prototyping and integration into control systems. The encoder’s durable mechanical design ensures stable performance in demanding applications, with a specified maximum rotational speed of less than 1000 radians per minute to maintain signal integrity and longevity.
Additional Information
| Weight | 0.009 kg |
|---|---|
| Dimensions | 13 × 9 × 1.8 cm |
