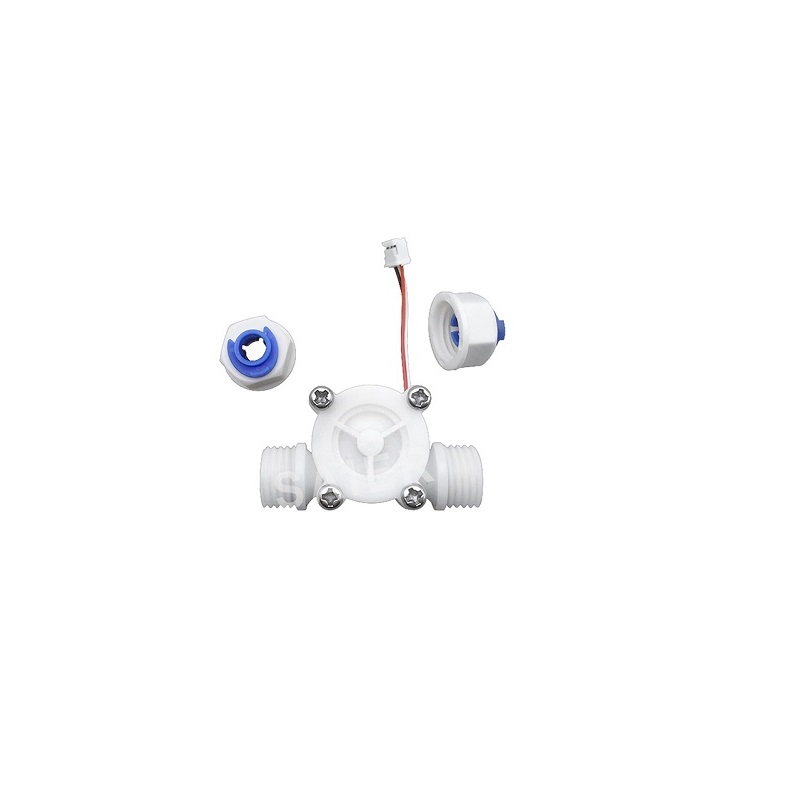

Saier HZ06B Water Flow Sensor (0.4–2.3 L/min) - Turbine Flowmeter, DC 4.5-18V
The Saier HZ06B is a compact turbine-based water flow sensor designed for precise flow rate monitoring from 0.4 to 2.3 L/min. Operating on a wide DC 4.5-18V supply, it provides a digital pulse output compatible with microcontrollers like Arduino, Raspberry Pi, and industrial PLCs for integration into automation and IoT systems.
Features
- Turbine-based flow sensor with a measurement range of 0.4 to 2.3 liters per minute (L/min).
- Wide operating voltage range from DC 4.5V to 18V with low current consumption (<15mA).
- Digital pulse frequency output for direct interface with microcontroller counters or PLC inputs.
- Compact and durable housing designed for easy inline installation in tight spaces.
- Suitable for monitoring clean water flow in appliances, automation, and process control.
Out of stock
The Saier HZ06B employs a precision turbine rotor and Hall-effect sensor to generate a digital pulse signal proportional to the flow rate. Each pulse corresponds to a specific volume of liquid passing through, enabling accurate cumulative flow measurement and real-time rate calculation.
Constructed for reliability in aqueous environments, the sensor features a durable body capable of withstanding working pressures up to 1.2 MPa. Its electrical design includes robust insulation resistance (>100 MΩ) and dielectric strength, ensuring stable performance and longevity in residential, commercial, and light industrial monitoring applications.
Additional Information
| Weight | 0.027 kg |
|---|---|
| Dimensions | 10 × 8 × 4 cm |
