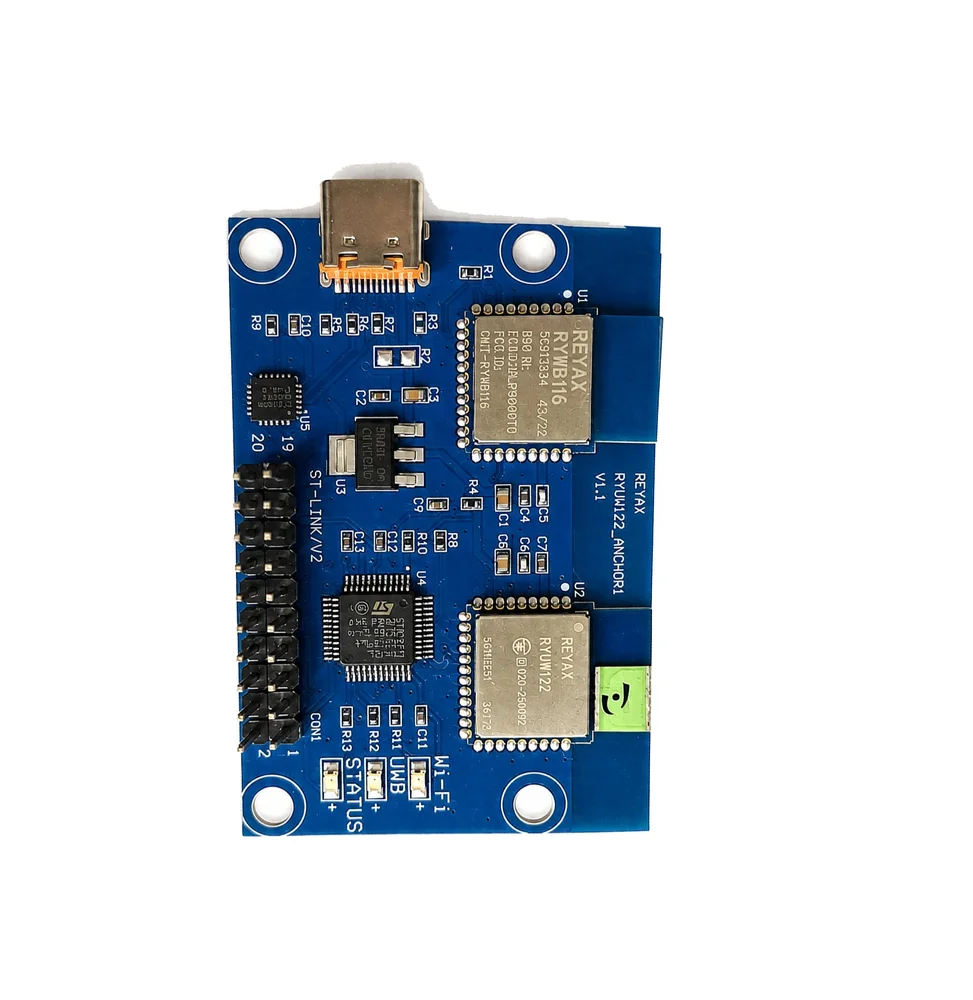

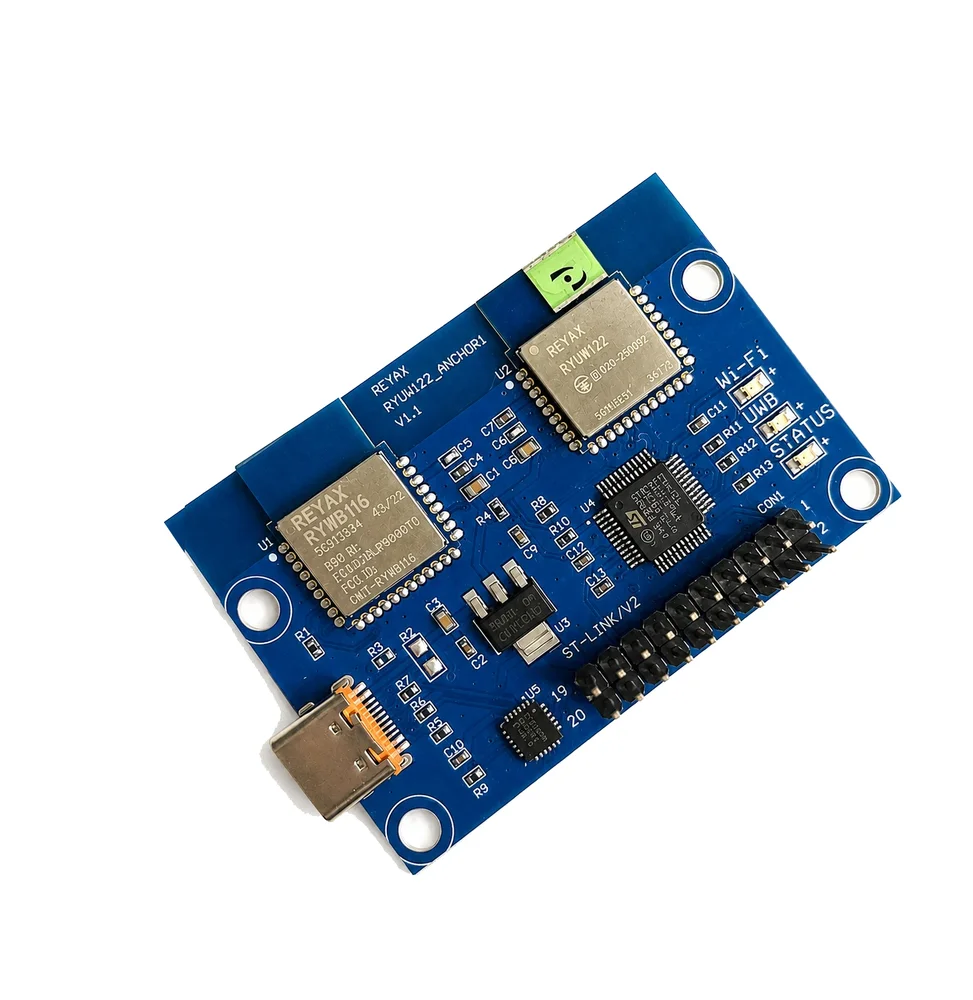

Reyax RYUW122_ANCHOR1 UWB Anchor with Wi-Fi
Reyax RYUW122_ANCHOR1 UWB Anchor with Wi-Fi - Image 2
SKU: IOWC-0892
📋 GST Invoice Available

Reyax RYUW122_ANCHOR1 UWB Anchor with Wi-Fi

₹8,849.00 (Inclusive of all taxes)
Out of Stock

The Reyax RYUW122_ANCHOR1 is a pre-configured UWB anchor node integrating an STM32 MCU, RYUW122 UWB module, and RYWB116 Wi-Fi module for high-precision indoor RTLS. It features preloaded firmware for centimeter-level positioning and communicates via Wi-Fi TCP for easy host system integration.

Features

  • Ready-to-deploy UWB anchor with pre-installed positioning firmware on an STM32 MCU, eliminating complex firmware development.
  • Delivers up to 10 cm positioning accuracy using IEEE 802.15.4z BPRF UWB on Channel 5 (6489.6 MHz) and Channel 9 (7987.2 MHz).
  • Integrated Wi-Fi (RYWB116) enables TCP communication with a host PC or server for seamless data uplink and network integration.
  • Compact 58 x 38 mm board with USB Type-C interface for power, programming, and debugging via a built-in CP2102N UART bridge.
  • Ideal for scalable Real-Time Location Systems (RTLS) in smart factories, warehouse asset tracking, robotics, and industrial automation.

Out of stock

Description

The Reyax RYUW122_ANCHOR1 is a fully integrated Ultra-Wideband anchor platform engineered for deploying high-accuracy indoor positioning networks. It combines the RYUW122 UWB transceiver and RYWB116 Wi-Fi module under the control of a dedicated STM32 microcontroller, delivering precise time-of-flight ranging with minimal setup. The preloaded anchor firmware handles the complex UWB protocol stack, allowing developers to focus on application-layer integration via the onboard Wi-Fi TCP link.

Designed for reliability in industrial environments, the board supports dual UWB channels for flexibility and offers a communication range of up to 100 meters in open fields. The USB Type-C port provides a single connection for 5V power supply, firmware updates, and serial debugging, streamlining the deployment process. This turnkey solution is built for seamless integration into the broader Reyax UWB ecosystem, enabling rapid scaling of Real-Time Location Systems (RTLS) for asset tracking, automated guided vehicles, and smart spatial analytics.

Key Features

  • Turnkey UWB anchor solution with pre-configured STM32 firmware for immediate deployment in RTLS networks.
  • High-precision ranging based on IEEE 802.15.4-2015 and IEEE 802.15.4z (BPRF) standards for robust, interference-resistant performance.
  • Dual-channel UWB operation on 6489.6 MHz (Channel 5) and 7987.2 MHz (Channel 9) for deployment flexibility.
  • Integrated 2.4 GHz Wi-Fi module (RYWB116) provides TCP/IP connectivity for real-time data streaming to a central server or host PC.
  • Onboard Silicon Labs CP2102N-A02 USB-to-UART bridge simplifies serial communication and firmware debugging.
  • Compact, single-board design (58x38mm) with a USB Type-C connector for streamlined power and programming.
  • Designed for scalable indoor positioning applications in logistics, manufacturing, robotics, and smart infrastructure.

Applications

  • High-precision indoor asset tracking and inventory management in warehouses and logistics centers.
  • Real-Time Location Systems (RTLS) for personnel and equipment in smart factories and industrial automation.
  • Navigation and positioning for autonomous mobile robots (AMRs) and automated guided vehicles (AGVs).
  • Spatial analytics and zone monitoring in healthcare facilities, museums, and retail environments.
  • Integration into robotics platforms for precise localization and collaborative workspace mapping.

Technical Specifications

Product TypeUWB Anchor with Wi-Fi
ModelRYUW122_ANCHOR1
UWB ModuleReyax RYUW122
Wi-Fi ModuleReyax RYWB116
MicrocontrollerSTM32 MCU
UWB StandardIEEE 802.15.4-2015 & IEEE 802.15.4z (BPRF)
Frequency ChannelsChannel 5 (6489.6 MHz), Channel 9 (7987.2 MHz)
Positioning AccuracyUp to 10 cm (Open Field)
Communication RangeUp to 100 m (Open Field)
Host CommunicationWi-Fi TCP Communication
USB InterfaceUSB Type-C
USB to UART BridgeSilicon Labs CP2102N-A02
FirmwarePreloaded Anchor Firmware
Dimensions58 x 38 mm
Weight11g

Frequently Asked Questions

How do I communicate with the RYUW122_ANCHOR1 anchor node?

The anchor communicates via its integrated Wi-Fi module. On power-up, it acts as a TCP server. Connect your host PC or server to the same network, then establish a TCP socket connection to the anchor's IP address and configured port to send configuration commands and receive real-time UWB ranging data and status updates.

Can I update or modify the preloaded firmware on the STM32 MCU?

Yes, firmware can be updated via the USB Type-C port. Use STM32CubeProgrammer or similar ST-Link compatible tools. Connect the USB cable, place the MCU in bootloader mode (check for a boot pin), and flash the new .hex or .bin file. The onboard CP2102N USB-to-UART bridge facilitates serial communication for debugging during development.

What is the power supply requirement for the RYUW122_ANCHOR1?

The board is powered via the USB Type-C port at 5V DC. Ensure your USB power source or adapter can provide sufficient current for both the STM32 MCU and the active RF modules. For permanent installation, a regulated 5V supply can be connected to the appropriate pins, bypassing the USB port if needed.

How do I configure the UWB operating channel and network parameters?

Configuration is performed via TCP commands sent to the anchor. After establishing a TCP connection, send specific ASCII command strings to set the UWB channel (5 or 9), device role (anchor/tag), network ID, and ranging intervals. Refer to the Reyax UWB communication protocol documentation for the exact command set and structure.

Package Includes

  • 1 x Reyax RYUW122_ANCHOR1 UWB Anchor with Wi-Fi
  • 1 x USB Type-C Cable

Additional Information

Weight 0.045 kg
Dimensions 10 × 7 × 3 cm
