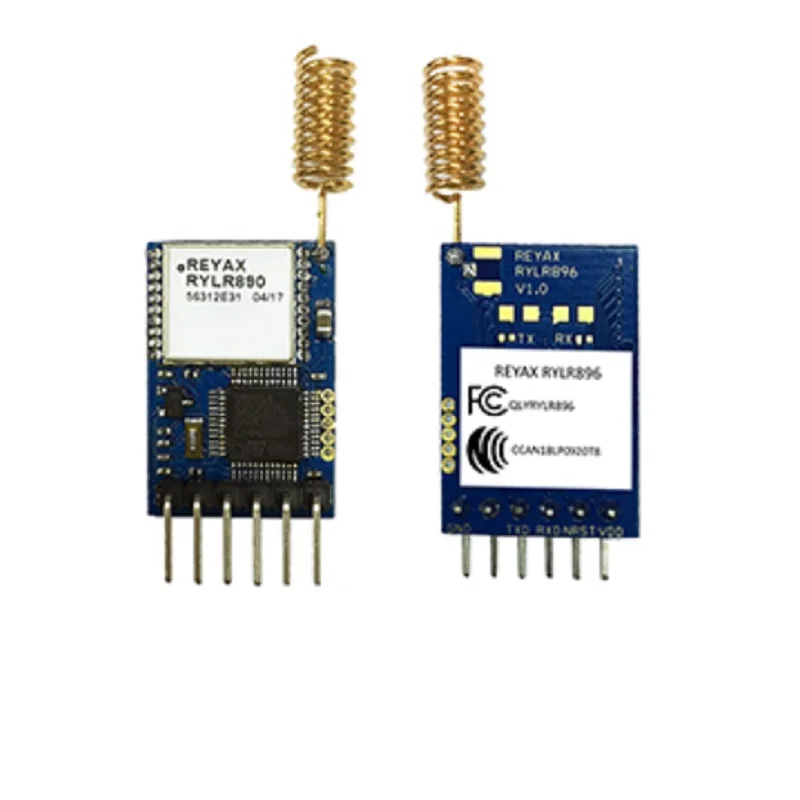

Reyax RYLR896 868/915MHz LoRa Transceiver Module DIP Version
The Reyax RYLR896 is a compact, integrated LoRa transceiver module based on the Semtech SX1276 engine, operating in the 868/915MHz ISM bands. It is controlled via simple AT commands over a UART interface, making it ideal for long-range, low-power IoT sensor networks and telemetry applications.
Features
- Semtech SX1276 LoRa modem for ultra-long-range spread spectrum communication with high interference immunity.
- Dual-band operation covering 868MHz and 915MHz ISM frequencies for global deployment flexibility.
- Integrated antenna design simplifies PCB layout and reduces BOM cost for compact end-devices.
- Low receive current and high sensitivity maximize battery life in remote sensing applications.
- Simple AT command interface over UART (300-115200 bps) for easy integration with any microcontroller.
Out of stock
The Reyax RYLR896 DIP module integrates the proven Semtech SX1276 LoRa transceiver into a compact, ready-to-use form factor with an onboard antenna. Its architecture provides a 127 dB dynamic range RSSI, enabling robust communication links in noisy RF environments while maintaining low current consumption for extended battery operation.
Designed for industrial IoT and remote monitoring, the module operates across a wide temperature range from -40°C to +85°C and features AS128 data encryption for secure transmissions. The integrated high-efficiency power amplifier and excellent blocking immunity ensure reliable performance in challenging conditions, from smart agriculture to urban telemetry networks.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 5 × 3 × 3 cm |
