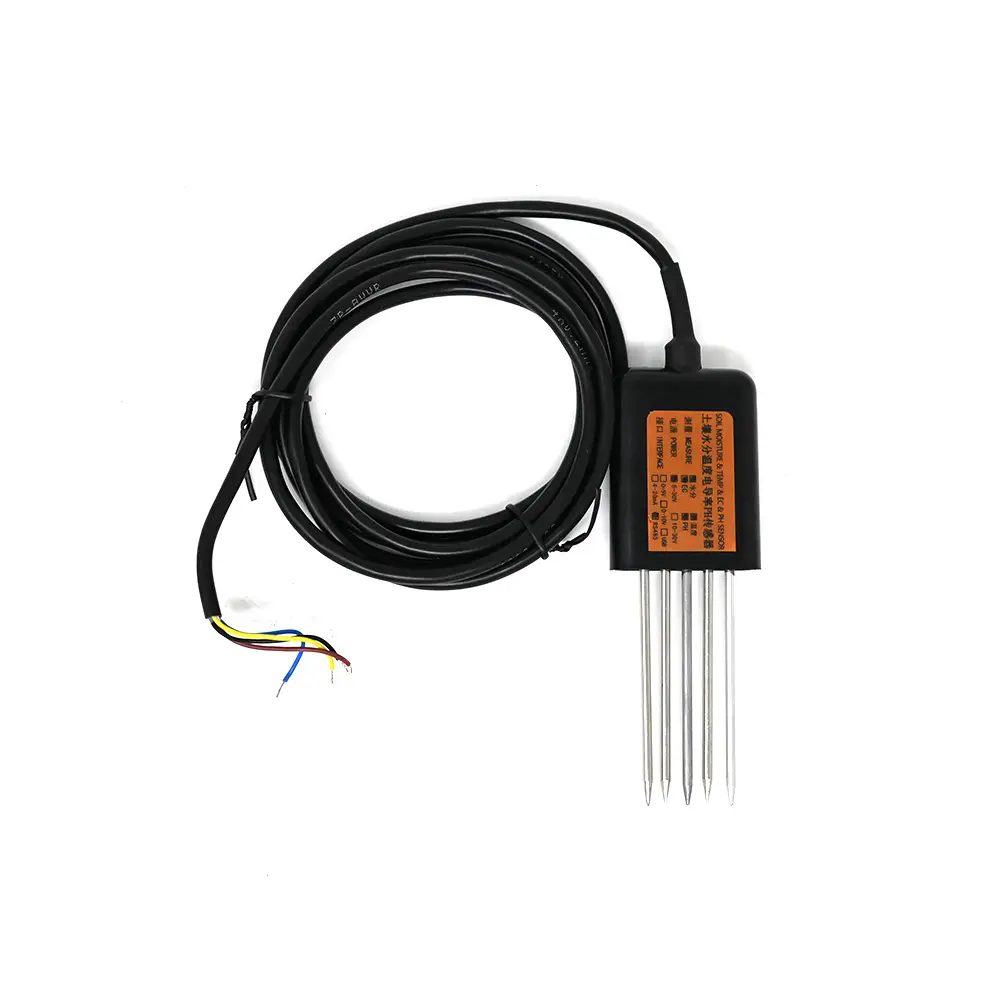

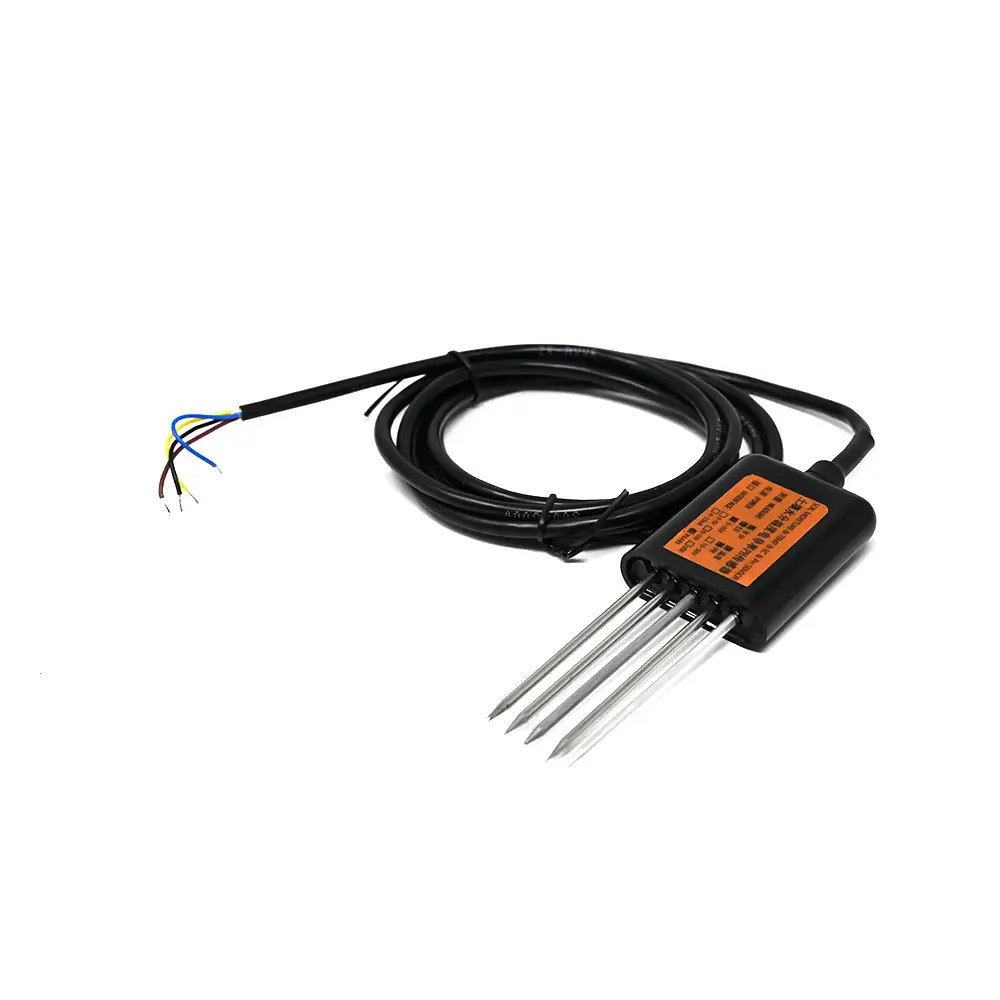

Renke RS-ECTHPH-N01-TR-1 4-in-1 Soil Nutrient Sensor (Moisture/Temp/EC/pH) - RS485, IP68
The Renke RS-ECTHPH-N01-TR-1 is a professional-grade, IP68 waterproof 4-in-1 soil sensor integrating measurements for moisture, temperature, electrical conductivity (EC), and pH via a robust RS485 Modbus interface. It is engineered for long-term deployment in agricultural, greenhouse, and environmental monitoring systems, compatible with PLCs, data loggers, and industrial controllers.
Features
- Integrated 4-in-1 sensing for soil moisture, temperature, EC, and pH.
- Industrial RS485 Modbus (RTU) output for stable, long-distance communication.
- IP68 epoxy-sealed housing and anti-corrosion electrodes for harsh outdoor use.
- Wide 4.5-30V DC input range with low 0.5W power consumption.
- Operates reliably across an extended -20°C to +60°C temperature range.
Out of stock
This multi-parameter soil nutrient sensor consolidates four critical agricultural measurements into a single, durable probe. It employs a five-electrode stainless steel design for simultaneous acquisition of volumetric water content, soil temperature, salinity via electrical conductivity, and acidity/alkalinity via pH. The integrated signal conditioning circuitry outputs calibrated digital values over a robust RS485 bus, enabling daisy-chained network configurations over hundreds of meters.
The sensor body is vacuum-sealed with black flame-retardant epoxy resin, achieving an IP68 rating for complete protection against dust and prolonged immersion. This construction, combined with specially treated anti-corrosion electrodes, ensures long-term stability and resistance to electrolysis in varied soil chemistries, making it suitable for permanent installation in precision agriculture, smart irrigation, and ecological research applications.
Additional Information
| Weight | 0.18 kg |
|---|---|
| Dimensions | 12.3 × 4.5 × 1.5 cm |
