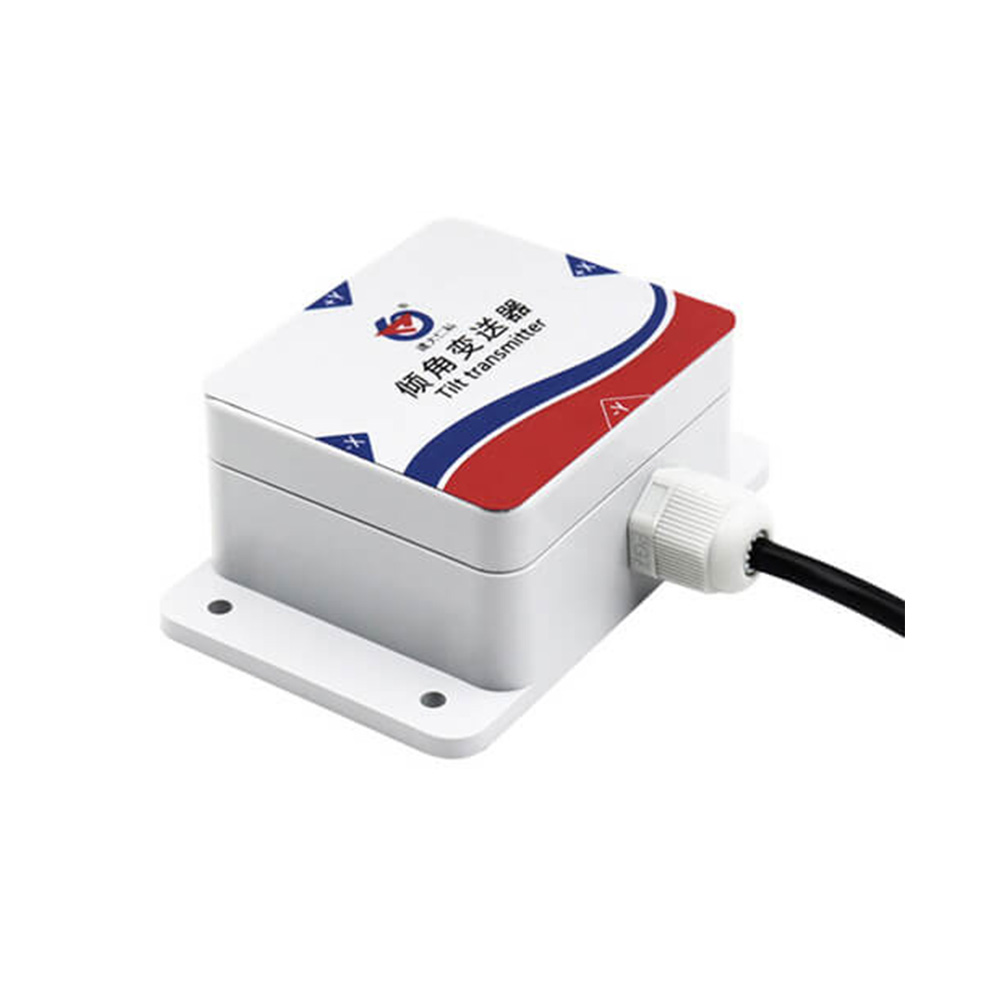

Renke RS-DIP-N01-1 Tilt Sensor & Inclinometer, IP65 Waterproof, RS485 Modbus Protocol
The Renke RS-DIP-N01-1 is a high-precision dual-axis tilt sensor and inclinometer featuring RS485 Modbus protocol output for seamless integration with industrial PLCs, SCADA systems, and data acquisition units. It delivers static accuracy up to ±0.1° across a wide measurement range, housed in a rugged IP65-rated waterproof enclosure for reliable operation in harsh environments from -40°C to 60°C.
Features
- High-precision dual-axis MEMS inclinometer with static accuracy up to ±0.1° (X/Y axes) and ±0.5° (Z axis).
- Standard RS485 interface with Modbus RTU protocol for industrial network integration and long-distance communication.
- Rugged IP65-rated waterproof housing ensures reliable performance in harsh, dusty, or wet environments.
- Wide operating voltage range (DC 5-30V) and broad temperature range (-40°C to 60°C) for versatile deployment.
- Advanced Kalman filter algorithm provides stable output and compensates for dynamic motion effects.
Out of stock
The Renke RS-DIP-N01-1 tilt sensor utilizes a high-performance MEMS accelerometer core combined with sophisticated signal conditioning and a Kalman filter algorithm to deliver precise static and dynamic inclination measurements. Its robust design is engineered for industrial durability, featuring a sealed housing that protects the internal electronics from moisture, dust, and corrosion.
Communication is handled via a standard RS485 serial bus using the Modbus RTU protocol, making it directly compatible with a vast array of programmable logic controllers (PLCs), data loggers, and supervisory control systems. The sensor is supplied with a 60cm integral cable and operates from a wide 5-30V DC supply, simplifying installation in diverse field applications from construction sites to factory automation.
Additional Information
| Weight | 0.12 kg |
|---|---|
| Dimensions | 15 × 15 × 6 cm |
