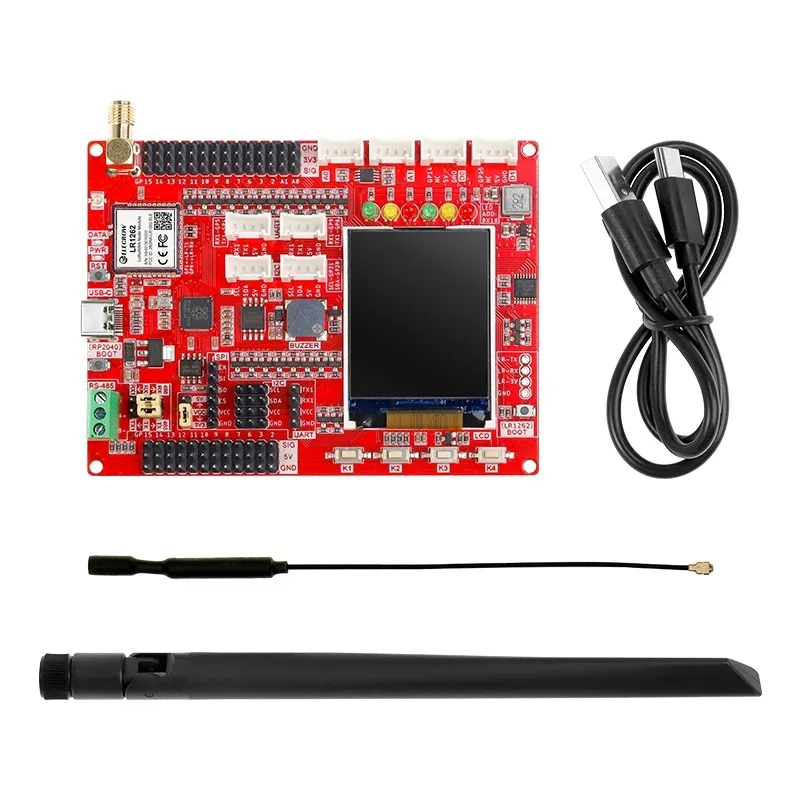

Elecrow LR1262 LoRaWAN RP2040 Dev Board w/ 1.8" LCD
The Elecrow LoRaWAN LR1262 Development Board integrates a dual-core RP2040 microcontroller with an LR1262 LoRaWAN module (868/915MHz), offering robust wireless communication for IoT applications. It includes an onboard 1.8″ LCD, buzzer, LED, and buttons, facilitating rapid prototyping with Arduino and MicroPython.
Features
- Integrated RP2040 dual-core ARM Cortex-M0+ MCU for powerful, low-power processing.
- Features LR1262 LoRaWAN module supporting 868/915MHz frequency bands.
- Onboard 1.8-inch 128×160 SPI TFT LCD (ST7735S driver) for direct user interface.
- Compatible with Crowtail modules, Arduino IDE, and MicroPython for flexible development.
- Includes integrated buzzer, RGB LED, and user-definable button for quick project setup.
Out of stock

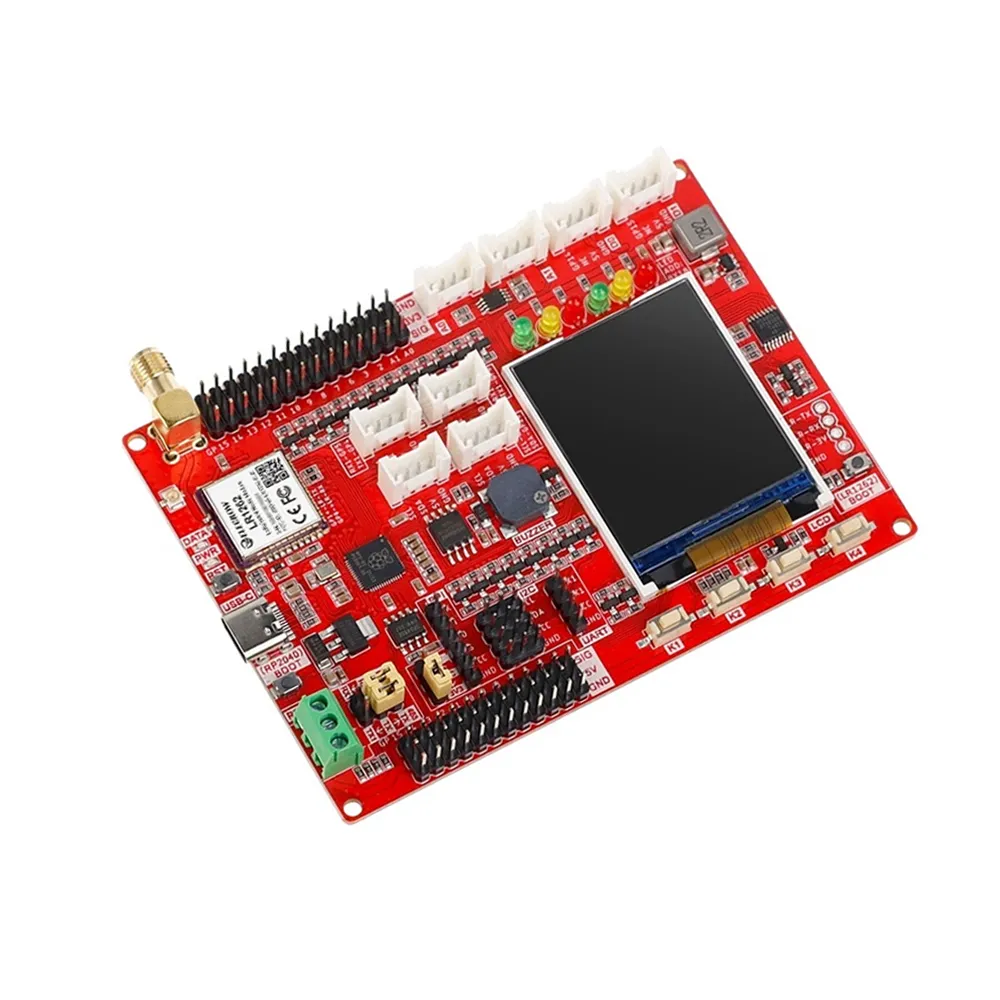

The Elecrow LoRaWAN LR1262 Development Board is a feature-rich platform designed for rapid prototyping of IoT and embedded systems, leveraging the powerful dual-core ARM Cortex-M0+ RP2040 microcontroller. This board integrates the LR1262 module, providing reliable LoRa and LoRaWAN protocol support across the 868MHz and 915MHz frequency bands, making it ideal for long-range, low-power wireless communication.

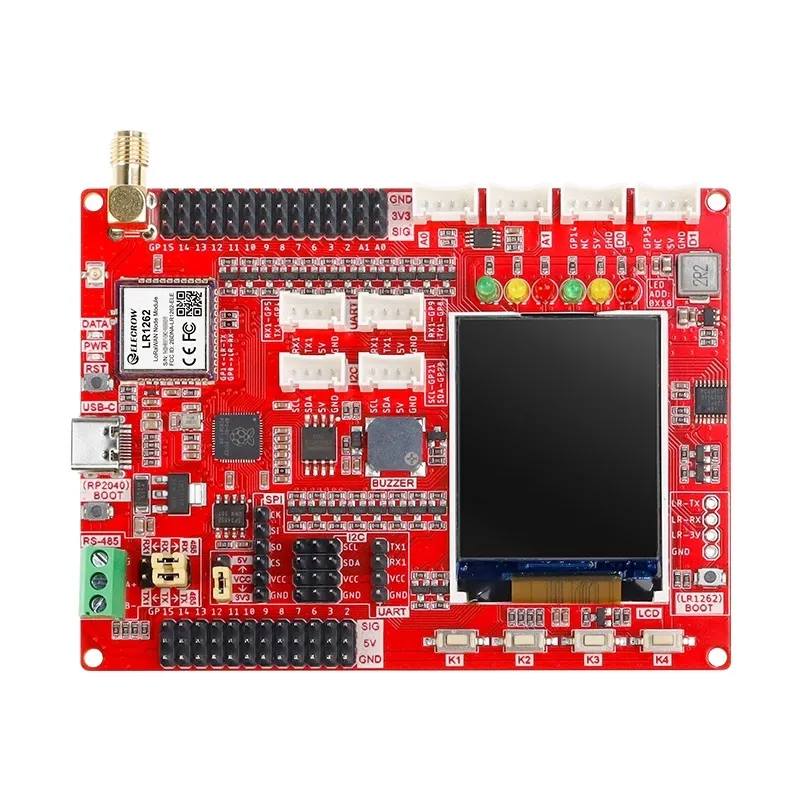

Equipped with a comprehensive set of peripherals, the board simplifies development by including a 1.8-inch 128×160 SPI LCD (ST7735S driver), a buzzer, RGB indicator LEDs, and a custom button directly on the PCB. It offers abundant external interface resources, including Crowtail, GPIO, RS485, SPI, I2C, and UART, ensuring broad compatibility with various sensors and expansion modules. This versatility, combined with support for Arduino and MicroPython, accelerates the development cycle for diverse applications.
Additional Information
| Weight | 0.055 kg |
|---|---|
| Dimensions | 10.2 × 7.65 cm |
