ESP8266 Adapter Plate Serial Wireless Wi-Fi Module
This ESP8266 adapter plate provides a breadboard-friendly breakout for ESP-07, ESP-08, and ESP-12 series SMD Wi-Fi modules, featuring a pre-populated 10K pull-up resistor and a land pattern for an optional 3.3V regulator.
Features
- Breakout adapter for ESP-07, ESP-08, ESP-12E, and ESP-12F SMD Wi-Fi modules with unfriendly pin pitch.

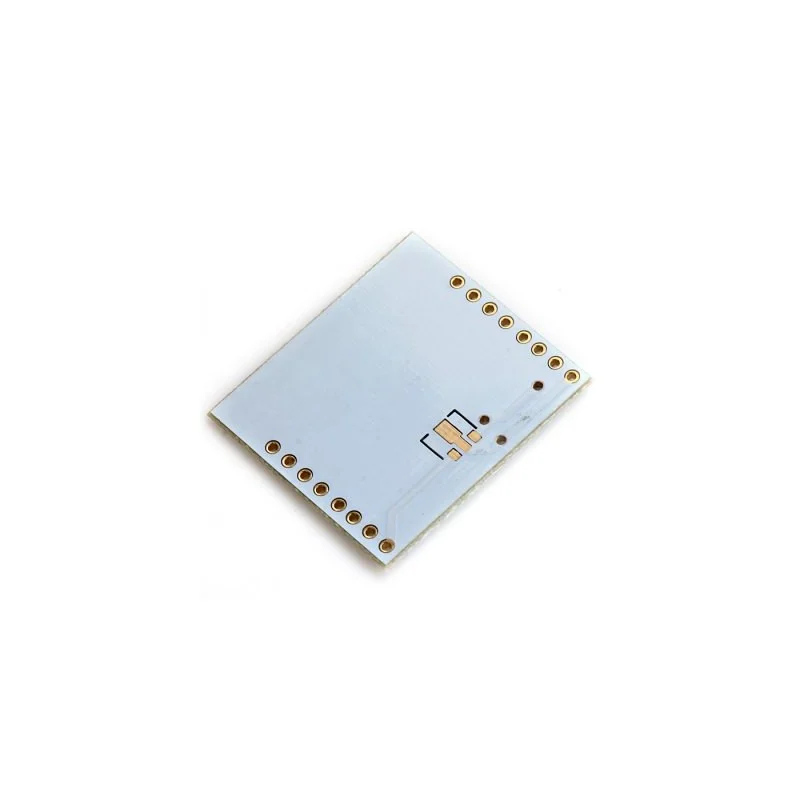

- Includes a reserved land pattern for a 3.3V voltage regulator, enabling flexible 4.5V to 9V input via a configurable jumper.
- Features clear top-layer pinout labels in black and a pre-populated 10K pull-up resistor on the PCB for simplified integration.
- Compact 28mm x 31mm white PCB design with standard 2.54mm header spacing for easy prototyping on breadboards or perfboards.
Out of stock

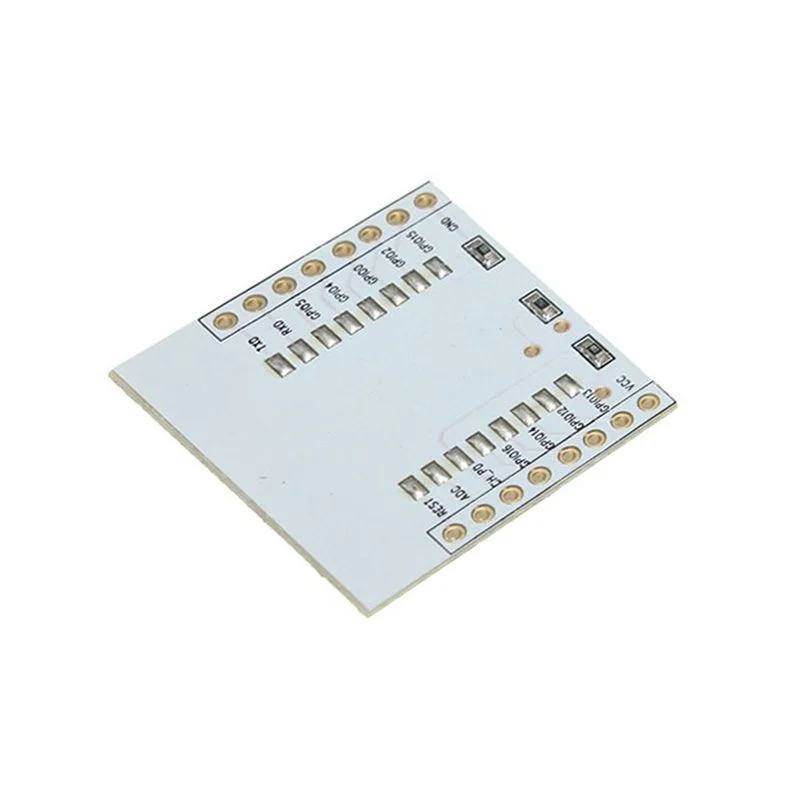

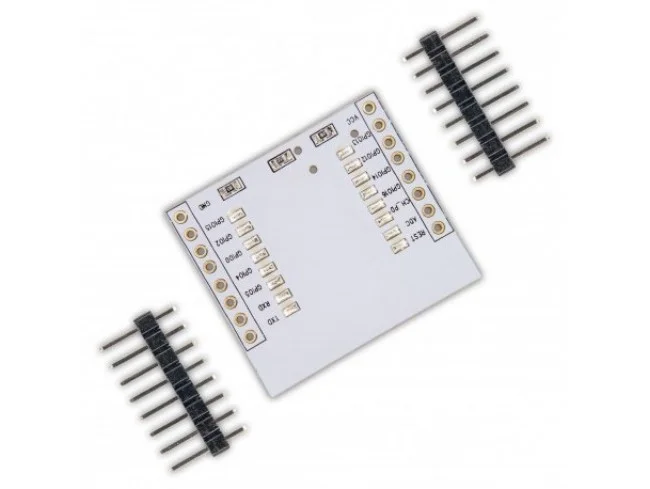

The ESP8266 Adapter Plate is a passive breakout board designed to simplify interfacing with compact ESP8266 SMD modules like the ESP-07, ESP-08, and ESP-12 series. These modules feature a fine-pitch SMD footprint that is difficult to solder directly to prototyping boards. This adapter provides a standard 2.54mm pin header layout, bringing all GPIO, power, and serial pins to a breadboard-friendly format.
The board includes intelligent power management features, such as a land pattern for an optional 3.3V linear regulator and a configurable 0-ohm resistor (R2) to select between direct 3.3V input or a higher 4.5V-9V input range. The clear silkscreen labeling and pre-installed 10K pull-up resistor accelerate development cycles for IoT projects, wireless sensors, and smart home devices using the Arduino IDE or ESP8266 SDK.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 3.1 × 2.8 cm |
