Arduino Portenta Breakout Dev & Test Board ASX00031

₹5,469.00 (Inclusive of all taxes)
Out of Stock

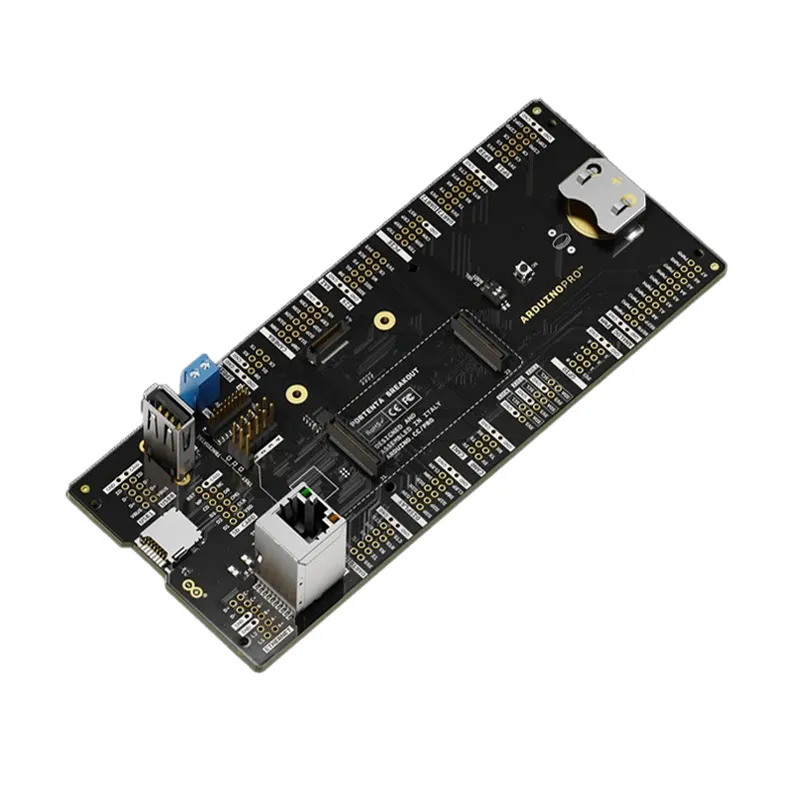

The Official Arduino Portenta Breakout Board ASX00031 provides comprehensive signal access for the Portenta family, enabling rapid prototyping and testing of external hardware. It simplifies debugging and development by breaking out all high-density connector signals.

Features

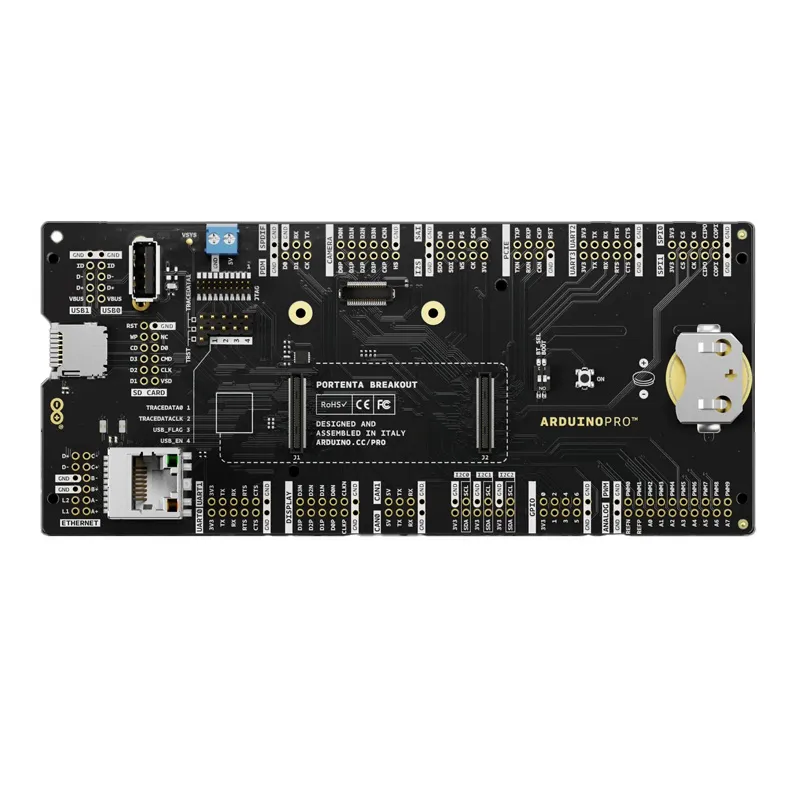

  • Breaks out all Portenta high-density connector signals for easy access.
  • Features USBA, RJ45 Gigabit Ethernet, Micro SD, and MIPI 20T JTAG ports.
  • Male/female HD connectors allow in-line debugging between Portenta and shields.
  • Includes CR2032 RTC battery backup and external power terminal block.

Out of stock

Description

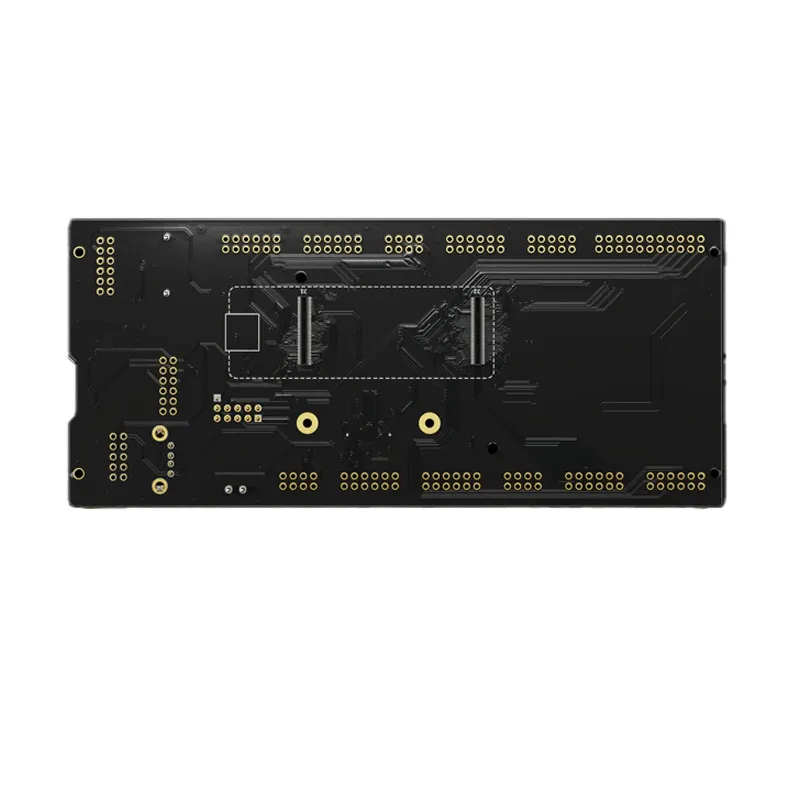

The Arduino Portenta Breakout Dev & Test Board ASX00031 is engineered to streamline the development and testing process for the Portenta family of boards. It provides individual access to every signal from the Portenta’s high-density connectors, facilitating quick and direct connections to external hardware components during laboratory development and debugging.

This breakout board significantly reduces development time for industrial-grade solutions built upon the Portenta platform. Its comprehensive signal accessibility and array of integrated interfaces, including Ethernet, USB, and JTAG, make it an invaluable tool for both professional product development and technical education in embedded systems and industrial control.

Key Features

  • Power ON Button and Boot mode DIP switch for versatile operation.
  • Integrated USBA port for host or device connectivity.
  • RJ45 Gigabit Ethernet port, compatible with Portenta X8 for high-speed networking.
  • Micro SD card slot for expanded storage capabilities.
  • OpenMV shutter module support for vision system integration.
  • MIPI 20T JTAG connector with trace capability for advanced debugging.
  • CR2032 RTC Lithium Battery backup for real-time clock functionality.
  • External power terminal block for flexible power input options.
  • Breaks out all Portenta High-Density connector signals for comprehensive access.
  • Male/female HD connectors enable interposing breakout for signal debugging with shields.
  • Standard Portenta High-Density connector pinout ensures wide compatibility.
  • Designed for Class A safety information compliance.

Applications

  • Rapid prototyping and development of custom Portenta-based solutions.
  • Debugging and testing of peripheral interfaces and signal integrity with Portenta boards.
  • Educational platforms for embedded systems, industrial control, and IoT applications.
  • Integration of vision systems via OpenMV shutter module interface.
  • Expansion of Portenta capabilities with Ethernet, USB, and Micro SD for various projects.

Technical Specifications

Item TypeBreakout Board
Model No. / NameASX00031
EthernetRJ45 up to 1Gb/s (Supported on Portenta X8 only)
Memory SlotMicro SD card
DebuggerMIPI 20T JTAG with trace capability
Connector TypeHD male/female
RTC batteryCR2032
Length16.4 cm
Width7.2 cm
Weight0.069 kg

Frequently Asked Questions

What is the primary function of the Arduino Portenta Breakout Board?

The primary function is to break out all high-density connector signals from Arduino Portenta boards. This provides accessible test points and interfaces, simplifying the prototyping, development, and debugging processes for custom hardware integrations and peripheral testing.

Which Portenta boards are compatible with this breakout board?

This breakout board is designed for the entire Portenta family, ensuring broad compatibility with standard Portenta High-Density connector pinouts. The integrated RJ45 Gigabit Ethernet, however, is specifically supported on the more powerful Portenta X8 for network capabilities.

Does the board include debugging interfaces?

Yes, the board features a MIPI 20T JTAG connector with trace capability for advanced hardware debugging. This allows developers to monitor and control the Portenta's internal state, facilitating deep-level troubleshooting and firmware development.

How is the Portenta Breakout Board powered?

The board can be powered via an external power terminal block, providing flexibility in power supply. Additionally, it includes a CR2032 RTC Lithium Battery backup, ensuring continuous real-time clock operation even when the main power is disconnected.

Package Includes

  • 1 x Official Arduino Portenta Breakout Dev & Test Board ASX00031

Additional Information

Weight 0.069 kg
Dimensions 16.4 × 7.2 cm
