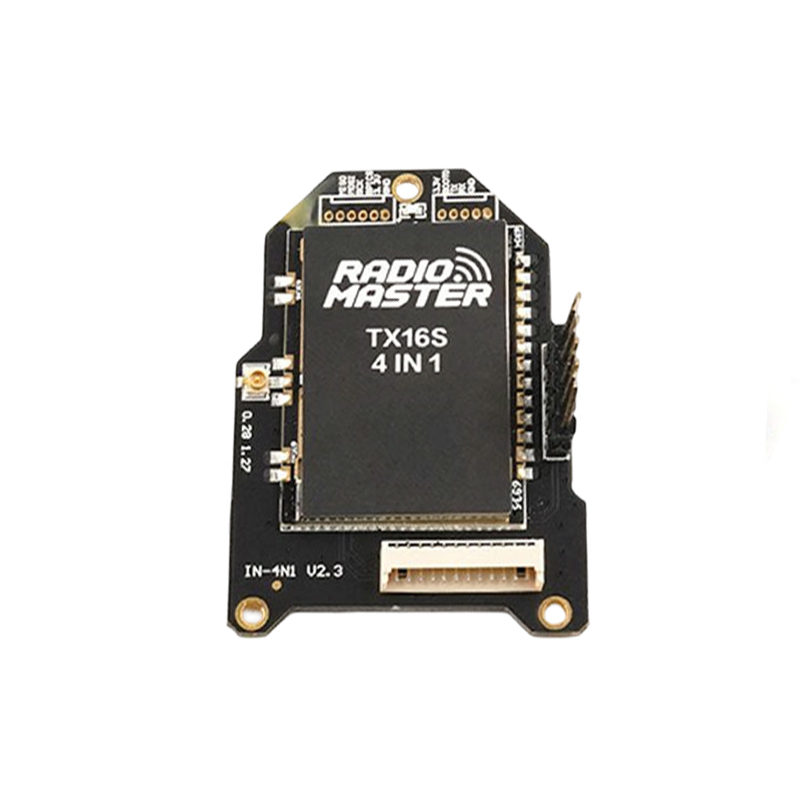

RadioMaster TX16s Replacement Internal 4-in-1 Module - Black
RadioMaster TX16s Replacement Internal 4-in-1 Module - Black - Image 2
SKU: DRFC-3232
📋 GST Invoice Available

RadioMaster TX16s Replacement Internal 4-in-1 Module - Black

₹5,579.00 (Inclusive of all taxes)
Out of Stock

The RadioMaster TX16s Replacement Internal 4-in-1 Module is a high-power RF module compatible with EdgeTX radios like the TX16s and Zorro, supporting over 70 legacy protocols via CC2500, NRF24L01, A7105, and CYRF6936 chipsets for versatile RC control.

Features

  • Supports over 70 legacy RF protocols (FrSky, FlySky, Futaba, Spektrum DSM2/DSMX, etc.)
  • High-power +20dBm (100mW) output on the 2.4GHz ISM band for extended range
  • Compatible with JR and Nano module bays in RadioMaster TX16s and Zorro transmitters
  • Integrated wireless trainer functionality for easy buddy-box setups
  • Wide operational voltage range from 4.5V to 8.4V, compatible with 1S-2S LiPo battery configurations

Out of stock

Description

This internal 4-in-1 RF module serves as a direct replacement or upgrade for RadioMaster transmitters, integrating four distinct RF chipsets into a single, compact board. It provides comprehensive compatibility with a vast array of legacy receiver protocols, making it an essential tool for pilots managing mixed fleets of drones and aircraft.

Engineered for reliable performance, the module operates on the global 2.4GHz ISM band with a robust +20dBm output power, ensuring a strong and stable link. Its design prioritizes low current draw and efficient power management, making it suitable for extended flying sessions without excessive battery drain on the host transmitter.

Key Features

  • Multi-Protocol Mastery: Houses CC2500, NRF24L01, A7105, and CYRF6936 chipsets to support over 70 different protocols, eliminating the need for multiple external modules.
  • High-Gain RF Output: Delivers up to +20dBm (100mW) of transmission power for enhanced signal penetration and control range in complex RF environments.
  • Universal Bay Compatibility: Physically and electrically designed to fit standard JR-style and smaller Nano module bays found in popular EdgeTX transmitters.
  • Integrated Wireless Trainer: Built-in functionality allows for seamless wireless trainer connections, enabling instructor/student setups without cables.
  • Wide Voltage Operation: Accepts input from 4.5V to 8.4V, ensuring compatibility with internal transmitter batteries ranging from 1S to 2S LiPo.
  • Compact & Lightweight Design: Measures 70mm x 50mm with a minimal weight of 20g, engineered for a clean internal installation without adding bulk.

Applications

  • Direct replacement for the internal 4-in-1 module in RadioMaster TX16s or Zorro transmitters.
  • Upgrading a transmitter's multi-protocol capability to control a wide range of BNF drones, planes, and helicopters.
  • Enabling wireless trainer/buddy-box functionality for flight instruction and pilot training.
  • Consolidating control of a mixed fleet using FrSky, FlySky, Spektrum, and other legacy protocols into a single transmitter.

Technical Specifications

Item TypeReplacement RF Module
Compatible TransmittersRadioMaster TX16s, Zorro
Supported Protocols70+ (via CC2500, NRF24L01, A7105, CYRF6936)
Operating Frequency2.4GHz ISM Band (2400–2483MHz)
RF Power OutputUp to +20dBm (100mW)
Operating Voltage4.5 – 8.4 VDC
Current Draw~100 mA
Module Bay CompatibilityJR, Nano
FeaturesWireless Trainer Function
Dimensions (L x W)70mm x 50mm
Weight20g
ColorBlack

Frequently Asked Questions

Is this RadioMaster 4-in-1 module compatible with the TX16s Mark II?

Yes, this replacement internal 4-in-1 module is fully compatible with all versions of the RadioMaster TX16s, including the original, Mark II, and the compact Zorro transmitter, as they share the same JR-style internal module bay and electrical interface.

What protocols does this 4-in-1 module support?

The module supports over 70 legacy RF protocols through its integrated CC2500, NRF24L01, A7105, and CYRF6936 chipsets. This includes popular systems like FrSky D8/D16, FlySky AFHDS/2A, Spektrum DSM2/DSMX, Futaba SFHSS, and many more for comprehensive control of various receivers.

How do I enable the wireless trainer function with this module?

The wireless trainer function is built into the module's firmware. To use it, ensure both transmitters (instructor and student) are powered on with the module installed. Then, configure the trainer mode within your transmitter's EdgeTX menu, selecting the appropriate wireless trainer source to establish the link without any physical cables.

What is the maximum power output and range I can expect?

The module provides up to +20dBm, which is equivalent to 100mW of RF output power. This offers a significant range advantage over lower-power modules, providing a stable control link of several kilometers in open air, though actual range is always subject to local RF interference and antenna placement.

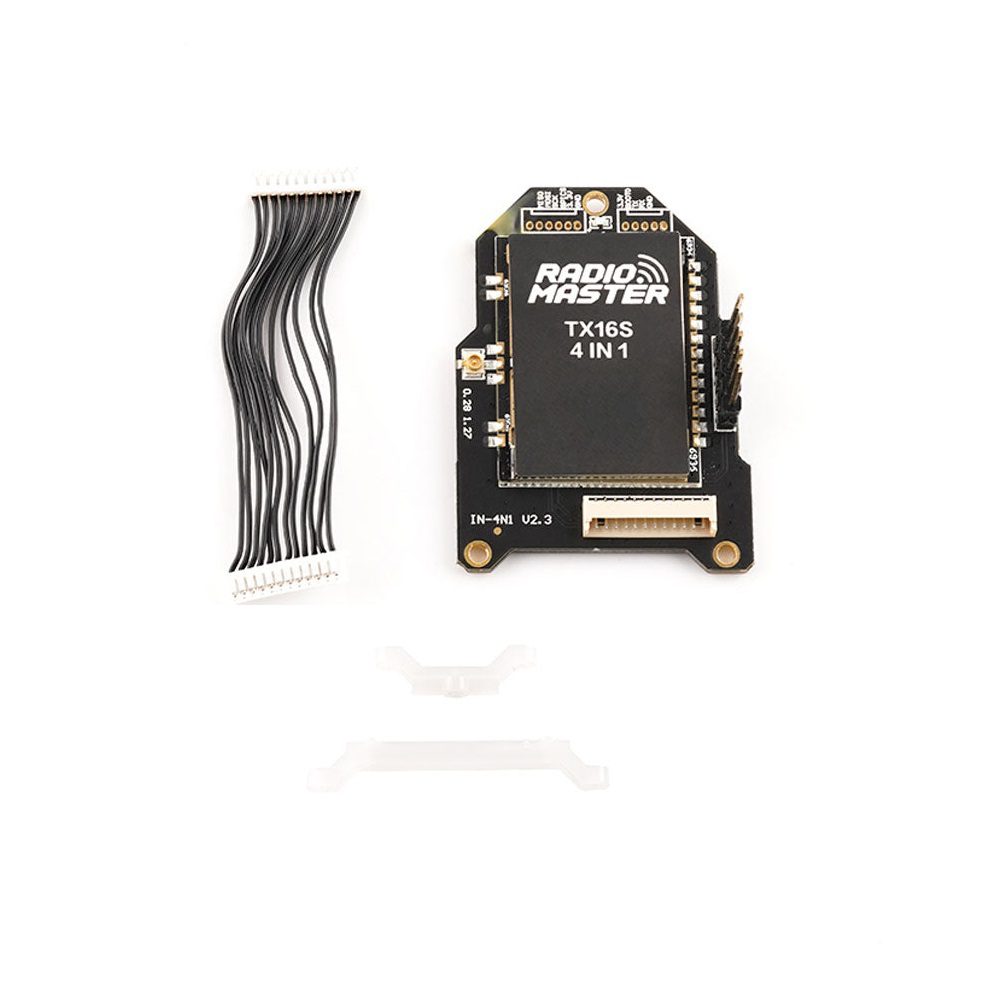

Package Includes

  • 1 x RadioMaster TX16s Replacement Internal 4-in-1 Module (Black)
  • 1 x Connector

Additional Information

Weight 0.02 kg
Dimensions 7 × 5 cm
