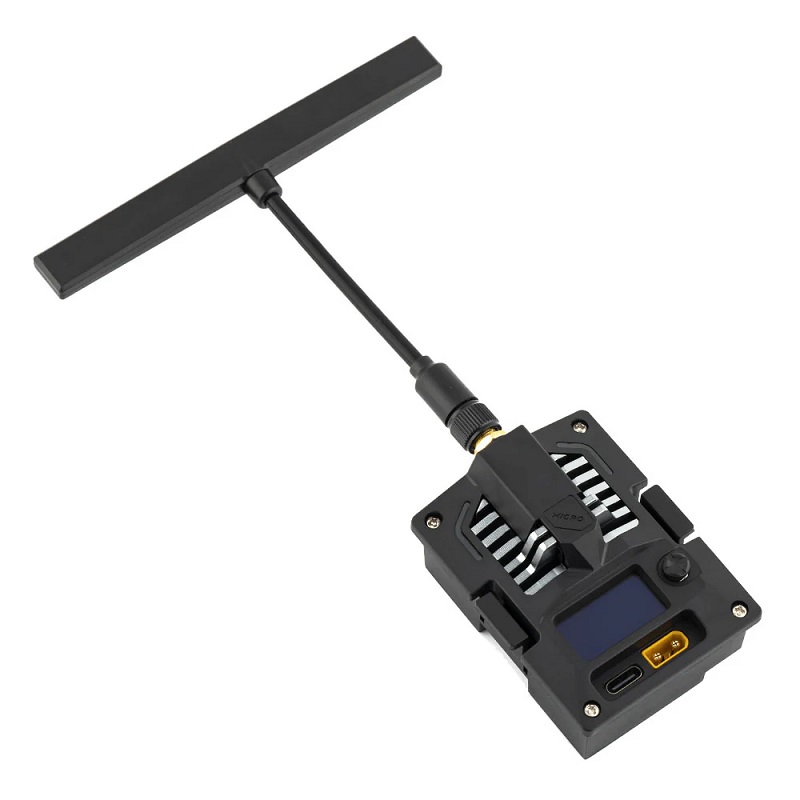

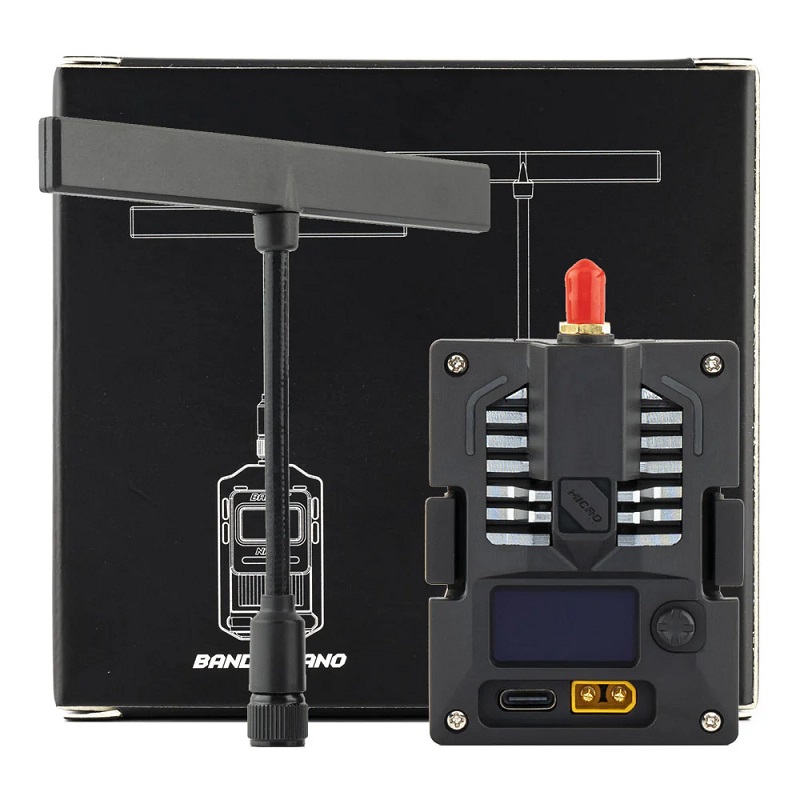

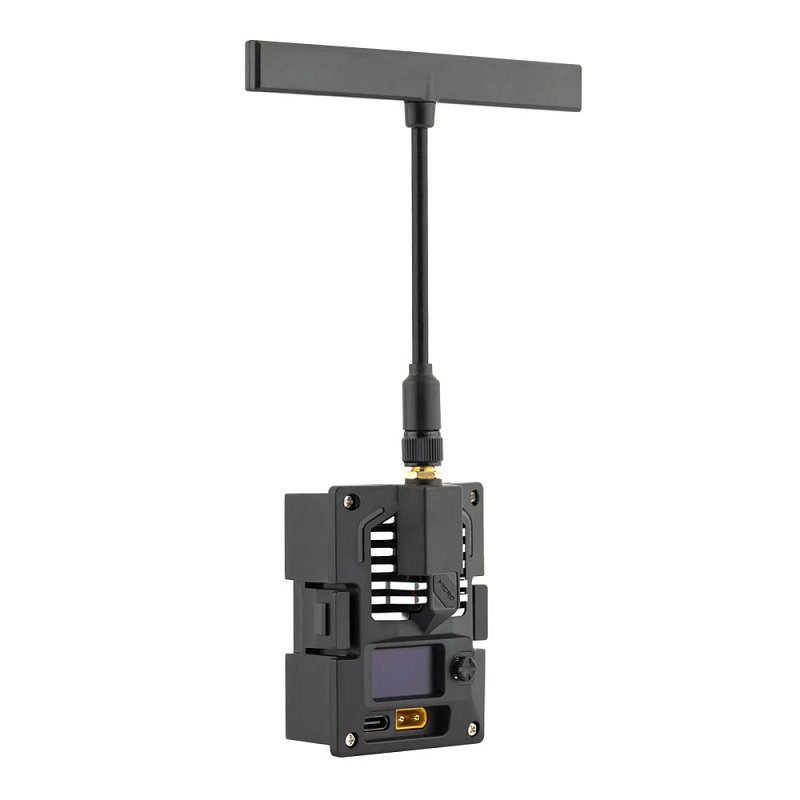

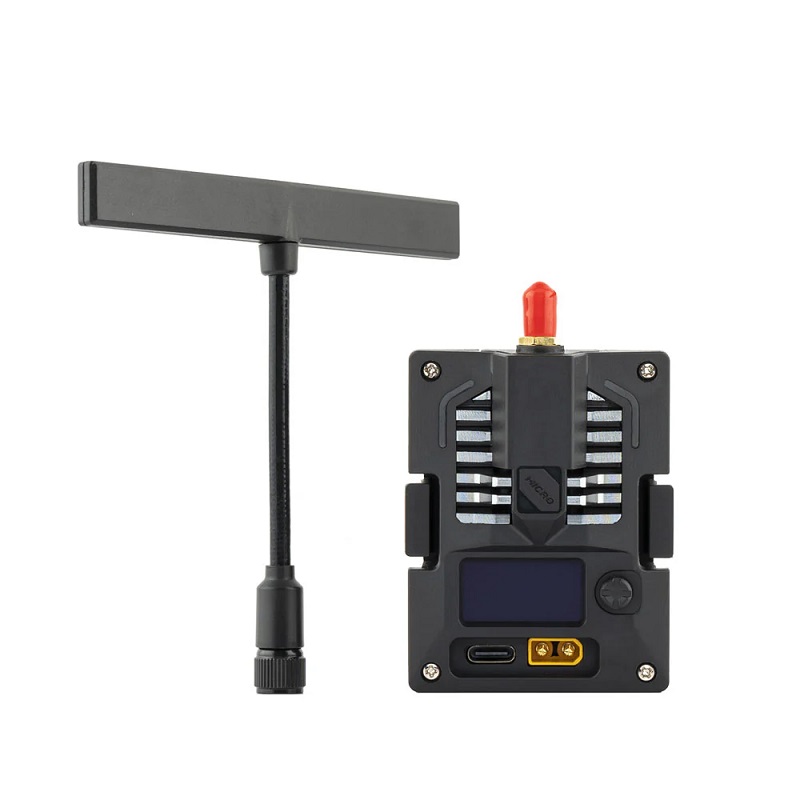

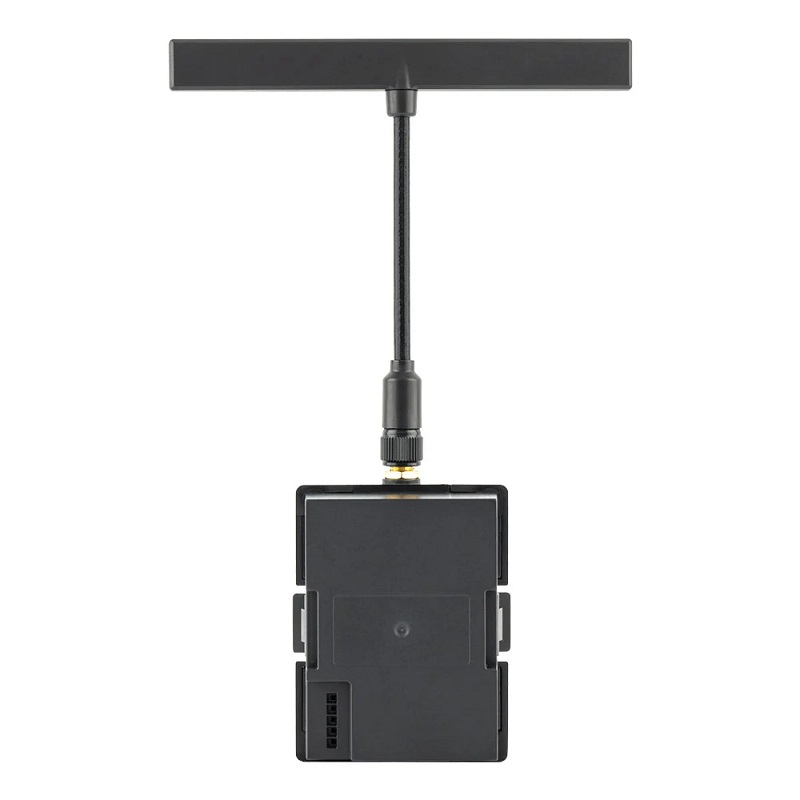

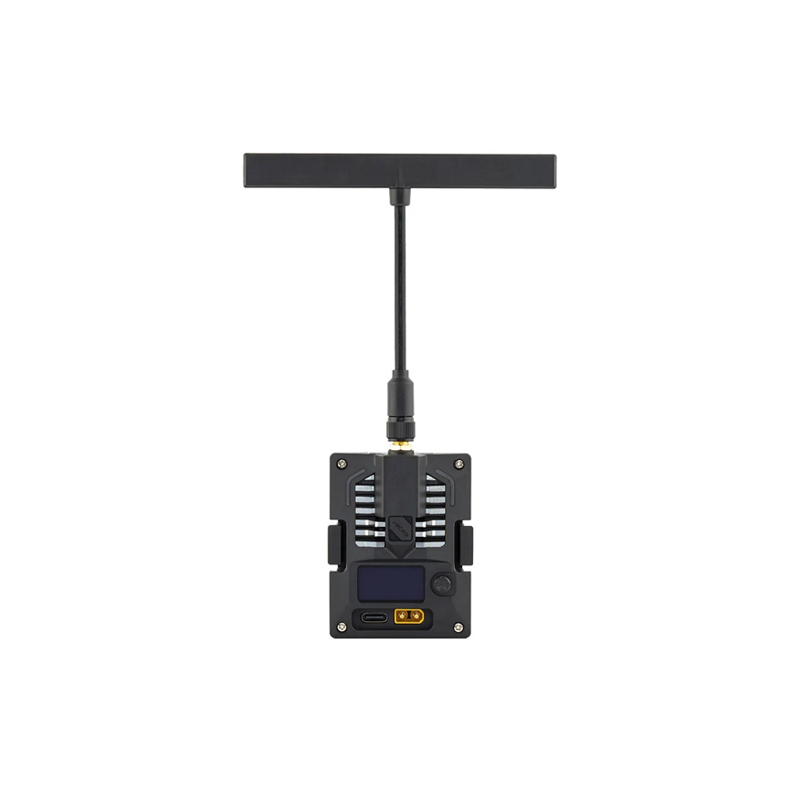

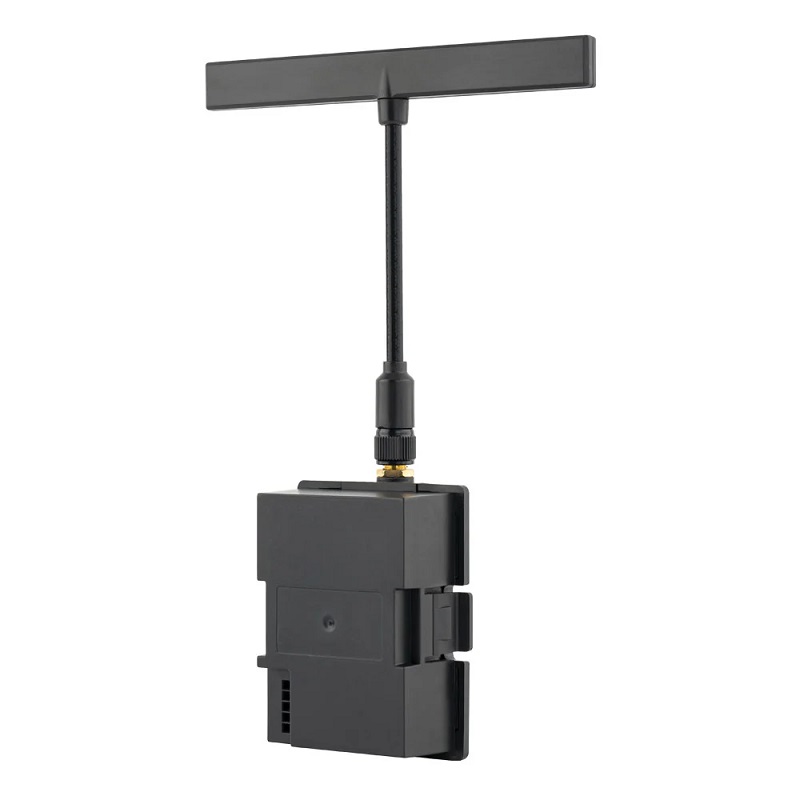

RadioMaster Bandit Micro ExpressLRS 915MHz RF Module
The RadioMaster Bandit Micro ExpressLRS 915MHz RF Module is a high-power, long-range transceiver designed for EdgeTX-compatible radios, featuring a 1W output, up to 200Hz packet rates, and integrated OLED display for real-time telemetry and configuration.
Features
- 1W (30dBm) RF output power for exceptional long-range penetration
- Supports ExpressLRS packet rates from 25Hz up to 200Hz for ultra-low latency
- Integrated high-contrast OLED display and 5-directional navigation key for on-module control
- Innovative convection cooling with a built-in turbo fan ensures stable high-power operation
- Dual MCU design (ESP32 main, ESP8285 auxiliary) with WiFi/Bluetooth for backpack functionality
Out of stock
The RadioMaster Bandit Micro ExpressLRS module leverages the SEMTECH SX1276 LoRa RF chipset, optimized for the 915MHz ISM band, delivering robust signal integrity and resistance to interference. Its advanced thermal management system, combining passive convection with an active turbo fan, maintains optimal component temperatures during sustained 1W transmission, ensuring reliability for extended flight sessions.
Engineered for seamless integration, the module features a standard 5-pin micro connector compatible with RadioMaster TX16S MKII, Boxer, and TX12 MKII transmitters. The onboard ESP32 and ESP8285 processors not only handle the ExpressLRS protocol but also enable the module to be repurposed as a high-power telemetry receiver, offering unparalleled flexibility for custom UAV builds and ultra-long-range applications.
Additional Information
| Weight | 0.078 kg |
|---|---|
| Dimensions | 6.41 × 4.96 cm |
