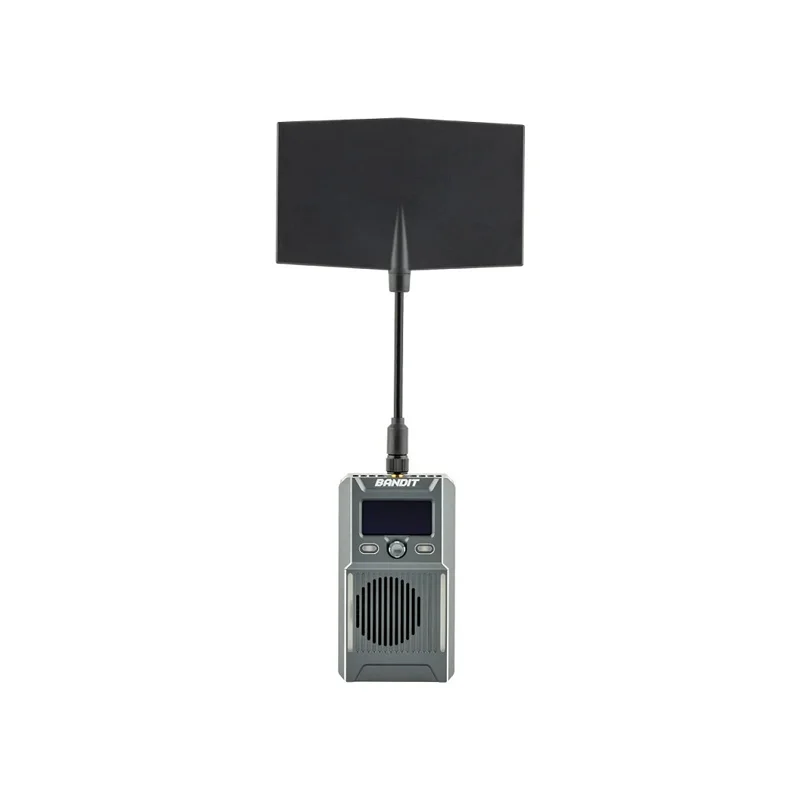

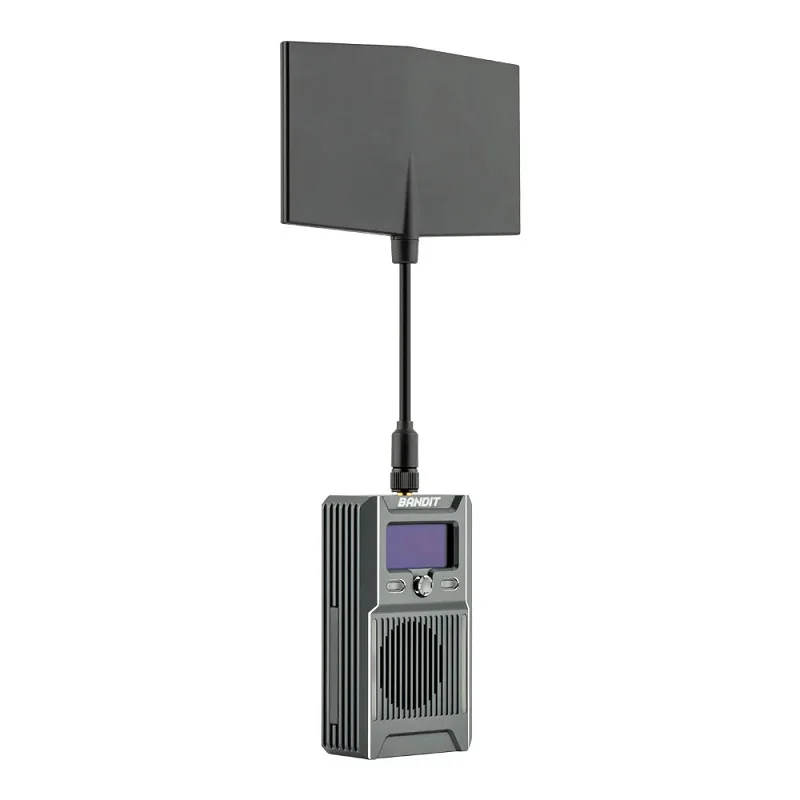

RadioMaster Bandit ExpressLRS 915MHz RF Module w/ OLED & Antennas
The RadioMaster Bandit is a high-power 915MHz RF module built on the ESP32 and SX1276 LoRa chipset, designed for ultra-low-latency control links in RC and UAV applications via the ExpressLRS protocol, featuring a rugged CNC case and integrated OLED for on-device configuration.
Features
- High-Power LoRa Transceiver: Integrates a SEMTECH SX1276 chip for robust 915MHz operation with up to 1W (30dBm) RF output power for extended range in RC control and telemetry.
- ESP32 Dual-Core Backbone: Powered by a main ESP32 MCU for protocol processing and WiFi/Bluetooth connectivity, with an auxiliary ESP8285 managing the ExpressLRS backpack for firmware flexibility.

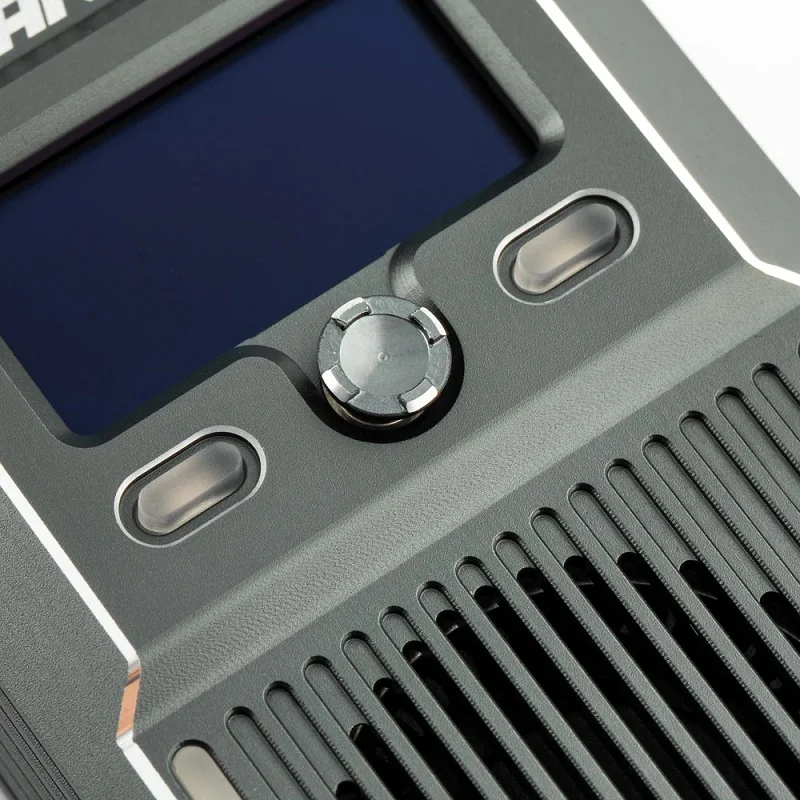

- Integrated Control Interface: Features a high-contrast OLED display, five-directional navigation key, and customizable shortcut buttons for real-time parameter adjustment without a computer.

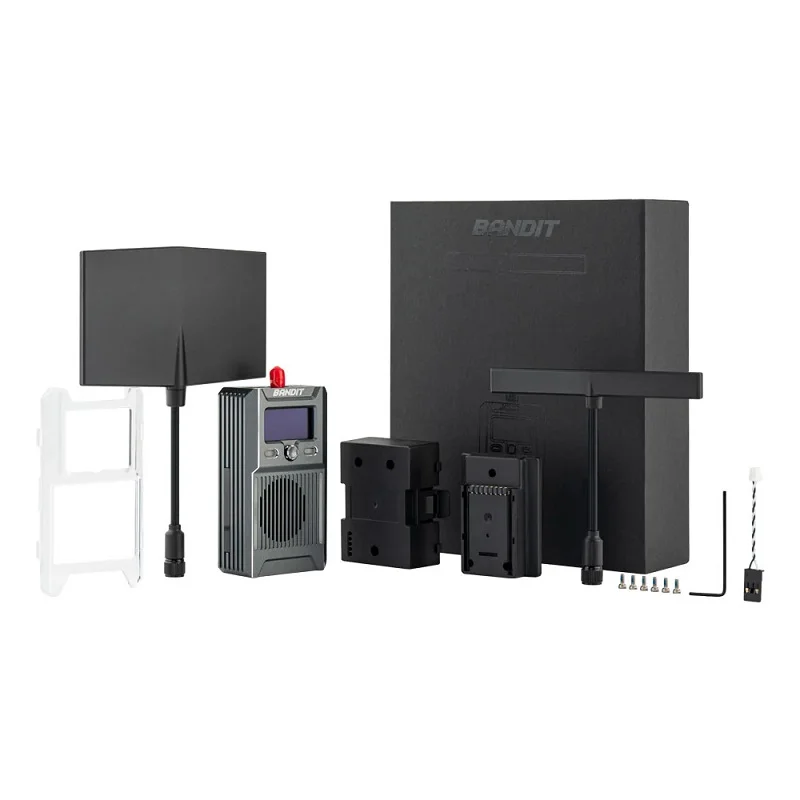

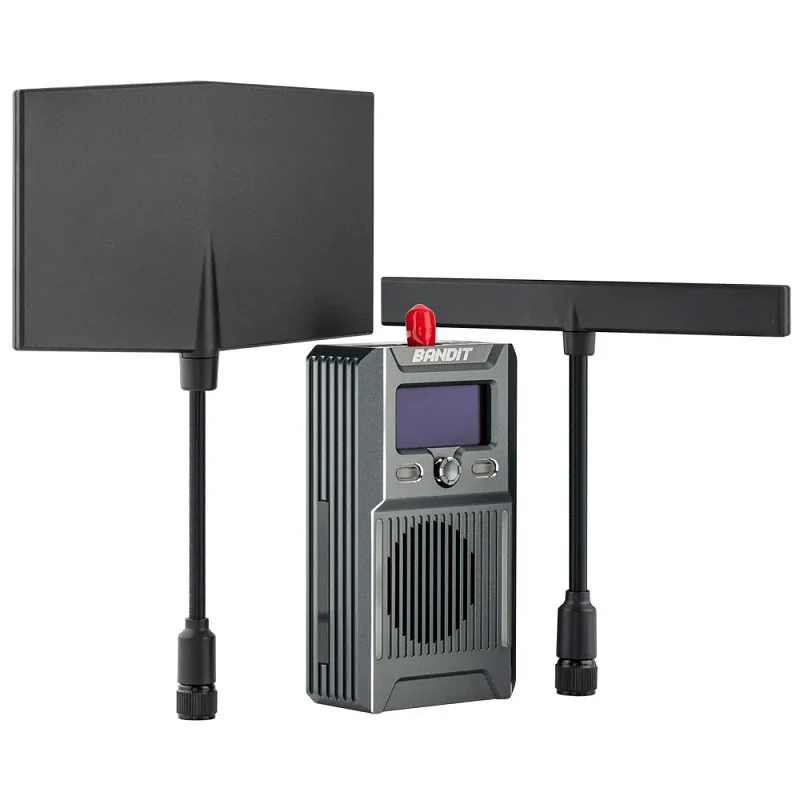

- Complete Antenna Kit: Includes both a general-purpose T antenna and a directional Moxon antenna (915/868MHz) to optimize signal for different flying scenarios and range requirements.
- Rugged Thermal Design: Housed in a CNC-machined aluminum case that acts as an efficient heat sink, ensuring stable performance during high-power, continuous transmission.
Out of stock
The RadioMaster Bandit ExpressLRS 915MHz RF Module is a professional-grade transceiver engineered for critical low-latency communication in radio-controlled aviation and drone systems. Its architecture combines the processing power of an ESP32 with the long-range, interference-resistant modulation of a SEMTECH SX1276 LoRa chip, optimized for the ExpressLRS protocol to deliver packet rates from 25Hz to 200Hz. This enables rock-solid control links with minimal latency, essential for FPV racing and long-range UAV operations.
Beyond its RF performance, the module is built for operational durability and user convenience. The machined aluminum enclosure provides superior heat dissipation for the 1W power amplifier, while the integrated OLED screen and tactile navigation interface allow pilots to configure binding, power output, packet rate, and model settings directly in the field. The inclusion of both omnidirectional and directional antennas offers immediate adaptability for various flight profiles, from acrobatic proximity flying to long-distance exploration.
Additional Information
| Weight | 0.155 kg |
|---|---|
| Dimensions | 9 × 5.1 cm |
