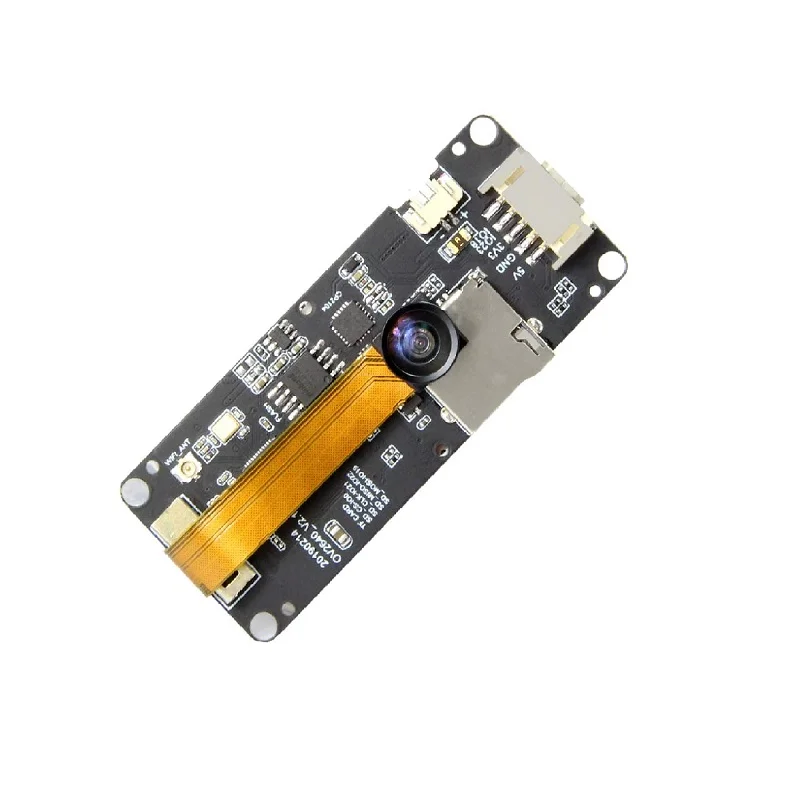

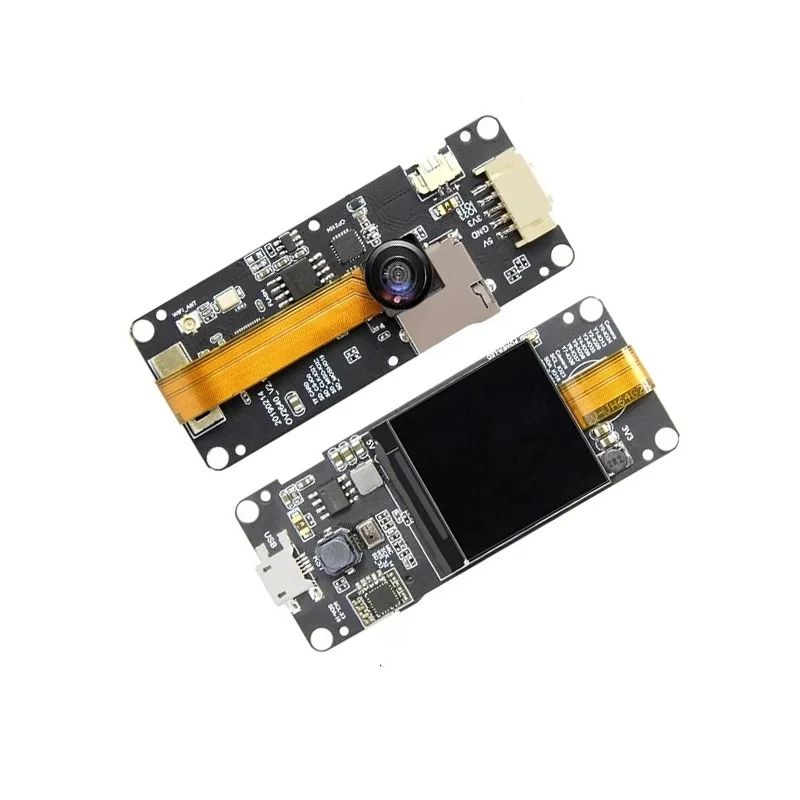

LilyGO T-Camera Plus ESP32 Module w/ OV2640 Fisheye Lens & 1.3-Inch IPS Display
The LilyGO T-Camera Plus is an all-in-one ESP32 development board integrating a 2MP OV2640 fisheye camera, a 1.3-inch IPS display, and USB-C programming via CP2104. It’s designed for Arduino IDE, ESP-IDF, and MicroPython projects requiring embedded computer vision and wireless connectivity.
Features
- ESP32 Dual-Core SoC: Features the ESP32-D0WDQ6 with 240MHz dual-core Xtensa LX6 processor, 520KB SRAM, and 8MB external PSRAM for handling image processing and Wi-Fi/Bluetooth stacks.
- 2MP OV2640 Fisheye Camera: Provides a wide-angle 1600×1200 resolution sensor for rear-view monitoring, object detection, and edge AI applications.
- Integrated 1.3-Inch IPS Display: ST7789-driven IPS panel offers live view, sensor data, or system status visualization directly on the module.
- Robust Wireless Connectivity: Supports 2.4GHz Wi-Fi (up to 22dBm output) and Bluetooth 4.2, with a claimed 300m open-space range for remote telemetry.
- Developer-Friendly Design: Includes USB-C port with CP2104 USB-to-serial, reset button, and power LED for rapid prototyping with Arduino or ESP-IDF.
Out of stock
The LilyGO T-Camera Plus merges Espressif’s powerful ESP32 wireless microcontroller with an OV2640 2-megapixel fisheye camera module and a compact 1.3-inch IPS display. This integration creates a standalone IoT vision node capable of capturing, processing, and transmitting image data over Wi-Fi or Bluetooth. The ESP32-D0WDQ6 chip provides dual-core processing power alongside 8MB of external PSRAM, which is critical for buffering high-resolution image frames and running TensorFlow Lite Micro models for on-device inference.
Power is supplied via the onboard USB-C port at 5V, with the module operating at a typical current draw of 160mA. The inclusion of the CP2104 USB-to-serial bridge simplifies firmware uploading and serial debugging. The board’s compact 70mm x 30mm footprint and lightweight design make it suitable for mobile robotics, smart home security monitors, or portable data loggers where visual feedback and wireless communication are required.
Additional Information
| Weight | 0.011 kg |
|---|---|
| Dimensions | 7 × 3 cm |
