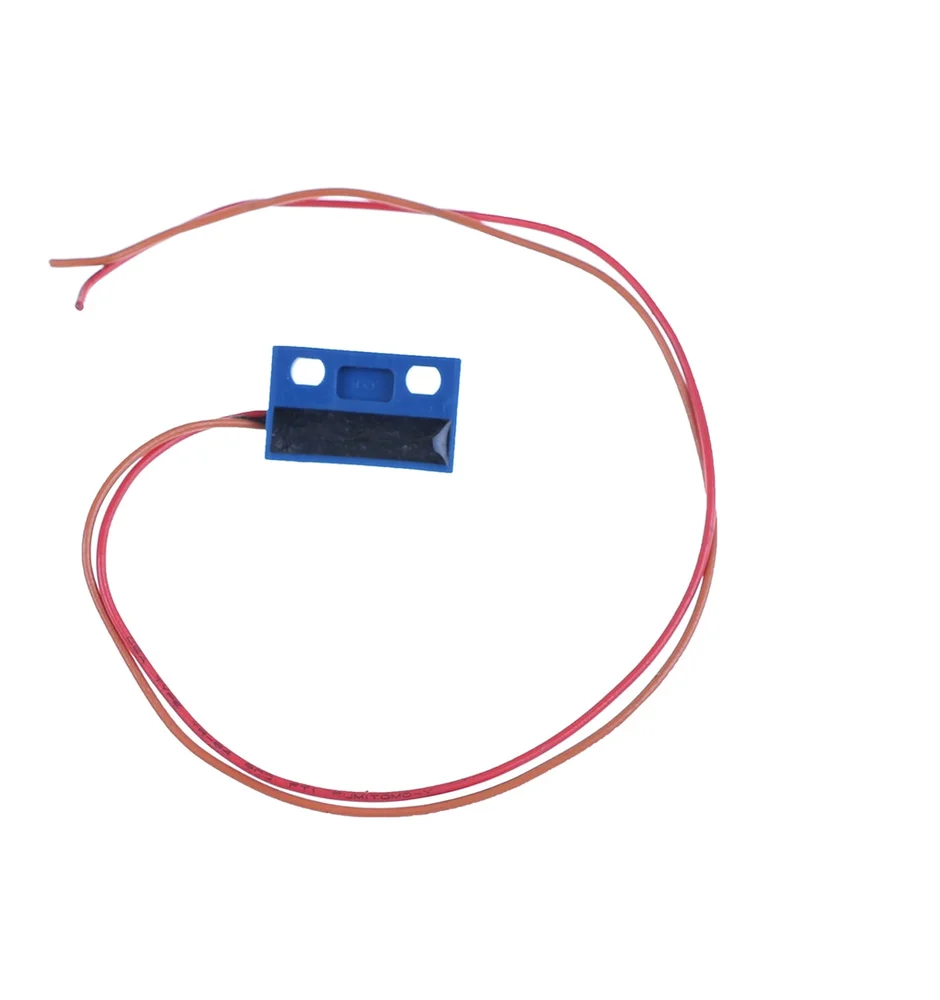

PS-3150 High-Speed Magnetic Reed Switch 220V 500mA - Normally Open Proximity Sensor
The PS-3150 is a high-speed, normally open magnetic reed switch designed for proximity sensing and switching applications up to 220V AC/DC and 500mA. It offers a compact, hermetically sealed design suitable for integration into industrial control systems, security devices, and automation projects.
Features
- High-Speed Switching: Features a maximum operate/release time of 1.0 ms and a bounce time of 1.5 ms for responsive control.
- Robust Electrical Ratings: Handles up to 220V AC/DC and 500mA maximum switching current with a 10W power rating.
- Normally Open (NO) Configuration: The contacts close in the presence of a magnetic field, providing a simple on/off signal.
- Compact & Sealed Construction: Hermetically sealed glass body protects the internal contacts from dust and corrosion.
- Wide Magnetic Sensitivity Range: Operates within an AT10-30 range, with a specified release range of ATMin 5.
Out of stock
The PS-3150 magnetic reed switch utilizes a pair of ferromagnetic reeds sealed within a glass envelope filled with inert gas. When a magnetic field of sufficient strength (within the AT10-30 range) is applied, the reeds magnetize and attract each other, closing the circuit. This contact closure provides a clean, bounce-minimized electrical signal ideal for digital input sensing.
Its hermetically sealed construction ensures long-term reliability in various environments, isolating the contacts from atmospheric contaminants. The switch is designed for high-speed operation with minimal contact bounce, making it suitable for counting, position detection, and safety interlock applications where fast, reliable switching is critical.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 4 × 4 cm |
