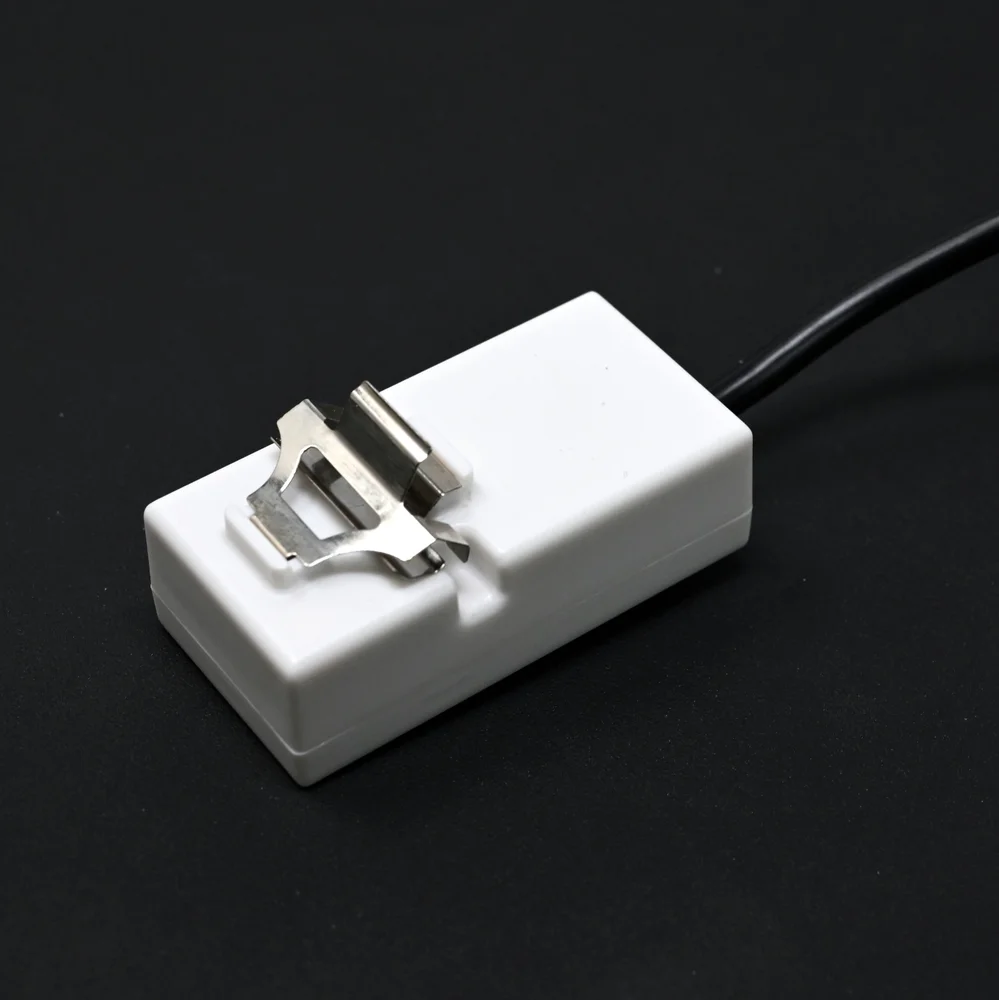

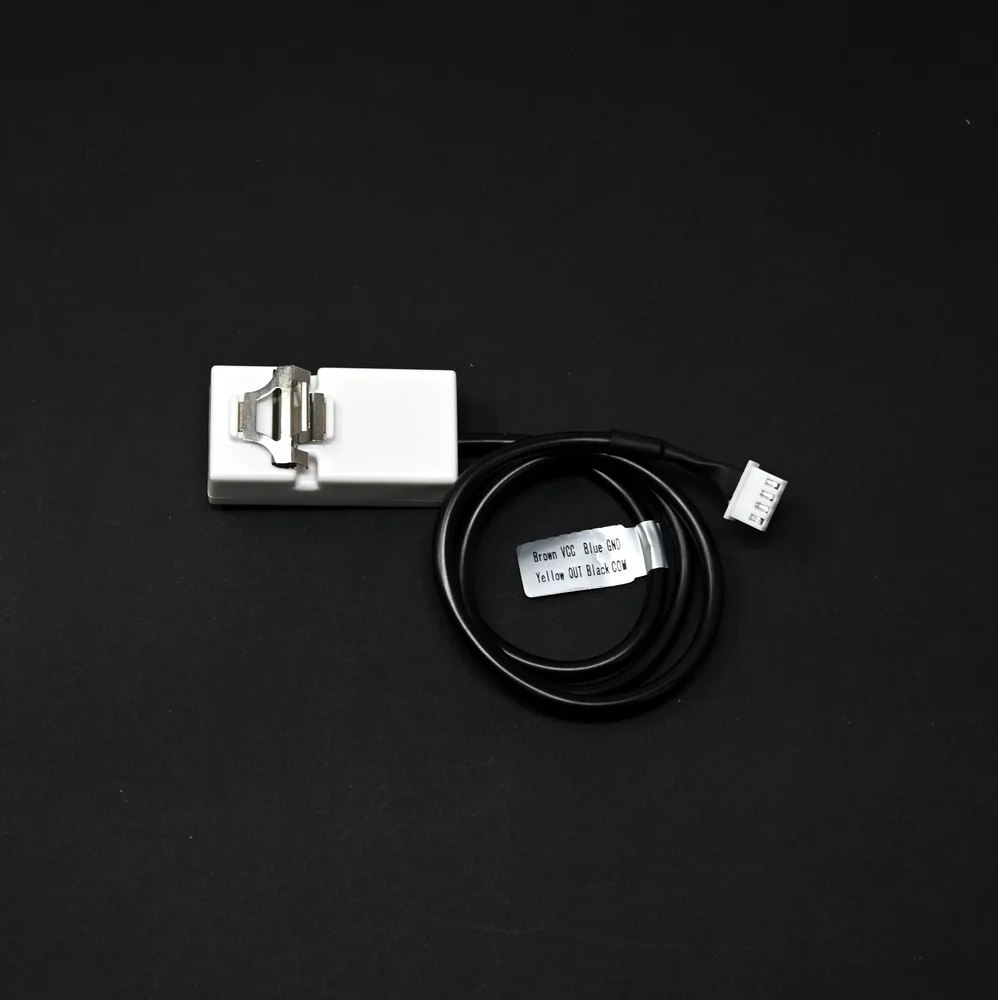

Pro-Range XKC-Y28A-RS485 Non-Contact Liquid Level Sensor - DC 5-12V, IP67 Waterproof
The Pro-Range XKC-Y28A-RS485 is a non-contact capacitive liquid level sensor designed for industrial and hygienic applications. It operates on a 5-12V DC supply and communicates via a robust RS485 interface, making it suitable for integration into PLCs, SCADA systems, and long-distance multi-sensor networks.
Features
- Non-contact capacitive sensing through container walls, eliminating contamination.
- RS485 Modbus communication for long-distance (up to 1200m) and multi-drop network capability.
- IP67-rated waterproof and dustproof housing for demanding industrial environments.
- Wide operating voltage range of 5-12V DC with low power consumption.
- Fast 500ms response time and adjustable sensitivity for varied liquids and container materials.
Out of stock
The XKC-Y28A-RS485 sensor operates on a capacitive sensing principle, detecting changes in the dielectric constant when a liquid is present on the opposite side of a non-metallic container wall. This non-invasive method ensures the liquid remains uncontaminated and protects the sensor from corrosive or viscous media.
Featuring an RS485 interface with Modbus protocol support, the sensor enables reliable data transmission over distances up to 1200 meters and allows for the daisy-chaining of multiple sensors on a single bus. Its IP67-rated enclosure provides robust protection against dust and temporary water immersion, supporting operation in harsh conditions from -20°C to +85°C and high humidity environments.
Additional Information
| Weight | 0.025 kg |
|---|---|
| Dimensions | 14 × 10 × 3 cm |
